RS 40 - Jonsered String Trimmer (1990-02) BEVEL GEAR SHAFT Parts Diagram

String Trimmer

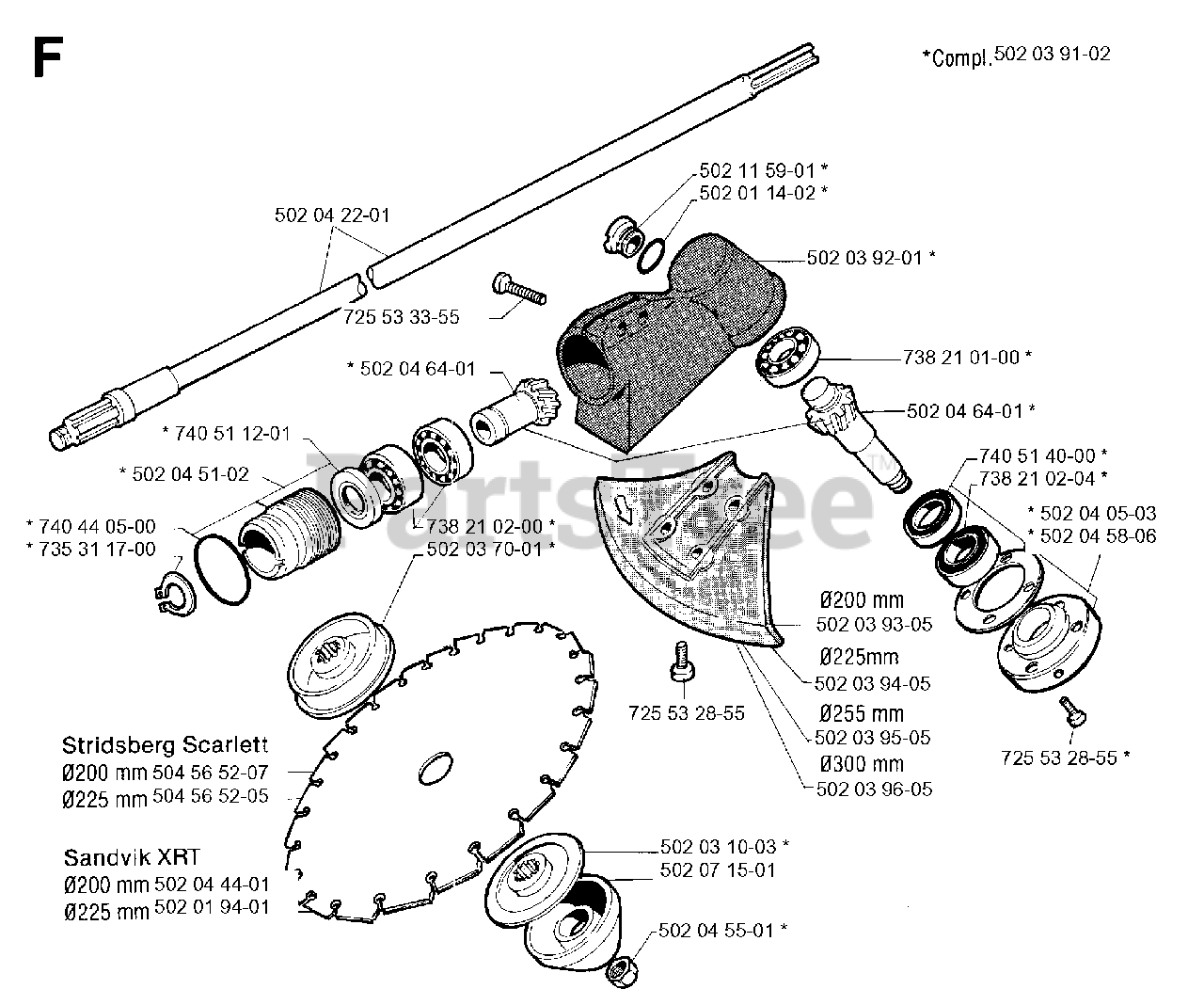

BEVEL GEAR SHAFT Parts Diagram

  • Title
5020422-01

Jonsered 502042201

SHAFT
(Superseded to 502277501)

$

$

Not available

7405112-01

Jonsered 740511201

SEALING RING

$

$

Not available

5020451-02

Jonsered 502045102

SLEEVE CPL.

$

$

Not available

7404405-00

$7.49

$

Usually ships in 3-10 days

0

7353117-00

Jonsered 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

5045652-07

Jonsered 504565207

No Description Available

Note: STRIDSBERG SCARLETT DIA 200 MM

$

$

Not available

5045652-05

Jonsered 504565205

No Description Available

Note: STRIDSBERG SCARLETT DIA 225 MM

$

$

Not available

5020444-01

Jonsered 502044401

SAW BLADE 200MM XRT NLA

Note: SANDVIK XRT DIA 200 MM

$

$

Not available

5020194-01

Jonsered 502019401

SAW BLADE 225MM XRT
(Superseded to 502019502)

Note: SANDVIK XRT DIA 225 MM

$

$

Not available

5020455-01

Jonsered 502045501

LOCKNUT 12X1.75

$7.49

$

In Stock, only 3 left!

0

5020715-01

Jonsered 502071501

NUT PROTECTION

$

$

Not available

5020310-03

$34.99

$

Usually ships in 3-10 days

0

7255328-55

Jonsered 725532855

SCREW MC6S 5X14

$

$

Not available

5020370-01

Jonsered 502037001

DRIVER
(Superseded to 502040704)

$

$

Not available

7382102-00

Jonsered 738210200

BALL BEARING 6002
(Superseded to 738210210)

$

$

Not available

5020464-01

Jonsered 502046401

SET GEAR WHEELS M12
(Superseded to 502039103)

$364.99

$

Usually ships in 3-10 days

0

7255333-55

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

5021159-01

Jonsered 502115901

REPL BY 502 11 59-02
(Superseded to 502115902)

$21.99

$

Usually ships in 3-10 days

0

5020114-02

Jonsered 502011402

GASKET
(Superseded to 502011403)

$

$

Not available

5020392-01

Jonsered 502039201

GEAR HOUSING
(Superseded to 502039103)

$364.99

$

Usually ships in 3-10 days

0

5020393-05

Jonsered 502039305

No Description Available

Note: DIA 200 MM

$

$

Not available

5020394-05

Jonsered 502039405

No Description Available
(Superseded to 502039407)

Note: DIA 225 MM

$

$

Not available

5020395-05

Jonsered 502039505

BLADE GUARD

Note: DIA 255 MM

$

$

Not available

5020396-05

Jonsered 502039605

No Description Available

Note: DIA 300 MM

$

$

Not available

7255328-55

Jonsered 725532855

SCREW MC6S 5X14

$

$

Not available

5020458-06

Jonsered 502045806

GEAR COVER

$

$

Not available

5020405-03

$

$

Not available

7382102-04

Jonsered 738210204

BALL BEARING 6002-2RS1

$13.99

$

Usually ships in 3-10 days

0

7405140-00

Jonsered 740514000

SEALING RING

$

$

Not available

5020464-01

Jonsered 502046401

SET GEAR WHEELS M12
(Superseded to 502039103)

$364.99

$

Usually ships in 3-10 days

0

7382101-00

Jonsered 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$24.99

$

Usually ships in 3-10 days

0

5020391-02

Jonsered 502039102

BEVEL GEAR COMPL.
(Superseded to 502039103)

$364.99

$

Usually ships in 3-10 days

0
