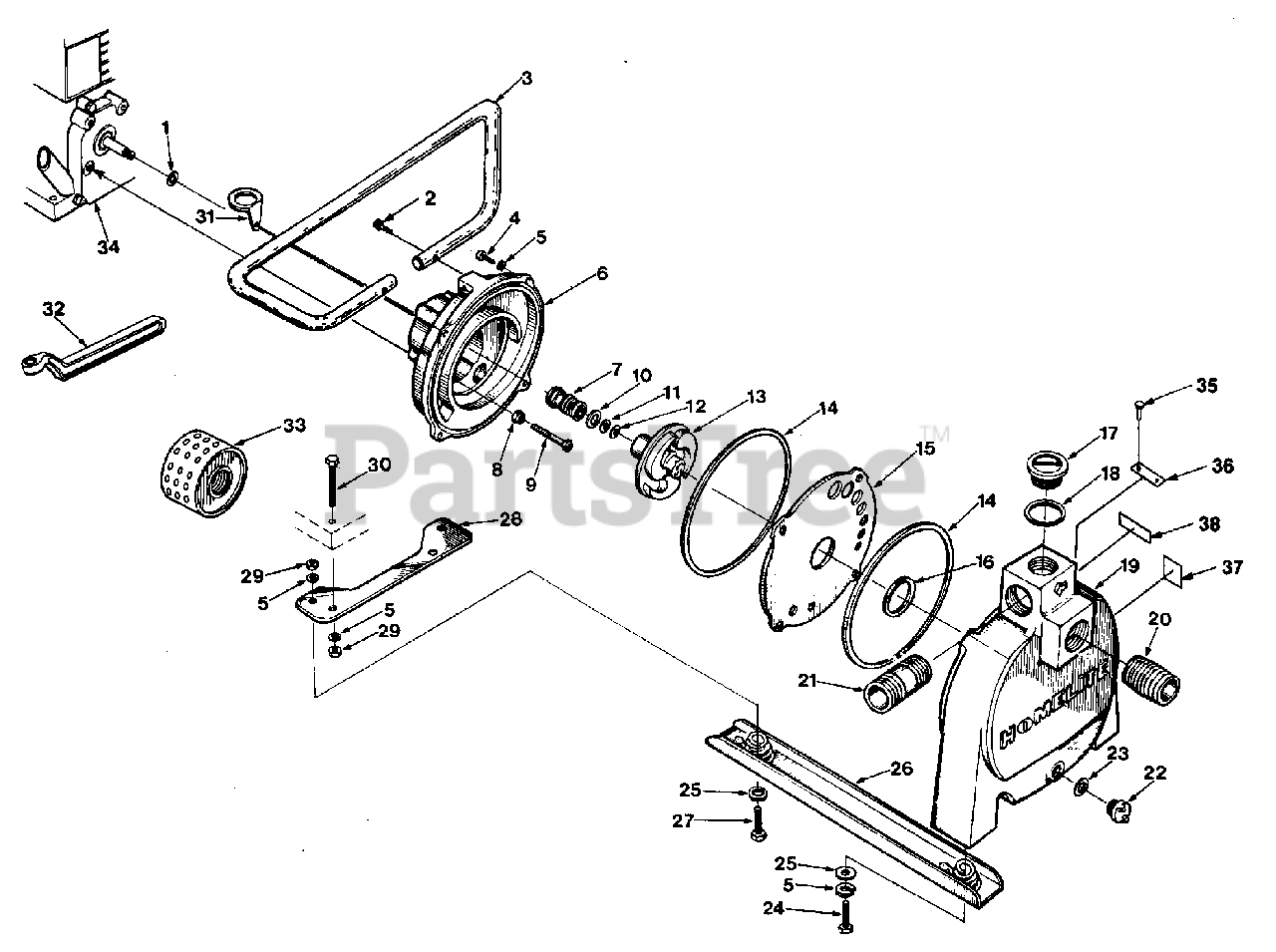

RS 2 (UT-01581) - Homelite Self-Priming Centrifugal Pump Pump Parts Diagram

Self-Priming Centrifugal Pump

Pump Parts Diagram

  • Title

1

Homelite 76885A

WASHER- Slinger
(Superseded to UP06453)

$

$

Not available

2

Homelite 806813

SCREW- Hex hd., 1/4-20 x 1/2"

$

$

Not available

3

Homelite 497421

HANDLE- Carrying

$

$

Currently unavailable

4

Homelite 80088

SCREW- Hex hd., 5/16-18 x 1 1/4"

$

$

Not available

5

Homelite 83002

WASHER- Lock, 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 629872

HOUSING- Impeller

$

$

Not available

7

Homelite 628612

SEAL ASSEMBLY

$

$

Not available

8

Homelite 62874

WASHER- Sealing
(Superseded to UP06437)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 80927

SCREW- Hex hd., 5/16-24 x 21/4"

$

$

Not available

10

Homelite 62882A

SHIM- Seal, .010"
(Superseded to UP07026)

$15.99

$

Usually ships in 3-7 days

0

Homelite 62883A

SHIM- Seal, .015"
(Superseded to UP06439)

$

$

Not available

11

Homelite 84056

WASHER- Flat 5/16"
(Superseded to UP06541)

$3.49

$

Usually ships in 3-7 days

0

12

Homelite 62872

SHIM- Impeller, .010"

$4.99

$

Usually ships in 3-7 days

0

Homelite 62873

SHIM- Impeller, .015"

$

$

Not available

13

Homelite 629883

IMPELLER
(Superseded to 629882)

$

$

Not available

14

Homelite 54070A

GASKET- Large
(Superseded to UP06418)

$

$

Not available

15

Homelite 540661

PLATE- Wear
(Superseded to UP06416)

$

$

Not available

16

Homelite 54069

GASKET- Small
(Superseded to UP06417)

$13.99

$

Usually ships in 3-7 days

0

17

Homelite A43971

PLUG- Filler

$

$

Not available

18

Homelite 18108

GASKET- Wing plug

$

$

Not available

19

Homelite A47629

HOUSING- End (aluminum)
(Superseded to UP06401)

$

$

Not available

20

Homelite 756631

NIPPLE- Suction, 2" NPT x 2" long
(Superseded to UP03807)

$

$

Not available

21

Homelite 541511

NIPPLE- 2" NPT x 3 1/2 long

$

$

Not available

22

Homelite A43896

PLUG- Drain
(Superseded to UP07092)

$

$

Currently unavailable

23

Homelite 59910

GASKET

$

$

Not available

24

Homelite 80083

SCREW- Hex hd., 5/16-18 x 3/4"

$

$

Not available

25

Homelite 84032

WASHER- Flat, 5/16"

$

$

Not available

26

Homelite A62890

SKID ASSEMBLY

$

$

Currently unavailable

Homelite 50389

SPRING- Foot
(Superseded to UP03795)

$

$

Not available

Homelite 85025

RIVET

$

$

Not available

27

Homelite 80088

SCREW- Hex hd., 5/16-18 x 1 1/4"

$

$

Not available

28

Homelite 628881

BAR- Mounting

$

$

Currently unavailable

29

Homelite 81018

NUT- Hex 5/16-18

$

$

Not available

30

Homelite 80087

SCREW- Hex hd., 5/16-18 x 1 1/2"

$

$

Not available

31

Homelite 624501

HOLDER- Spanner wrench

$

$

Not available

32

Homelite 19189B

WRENCH- Spanner
(Superseded to UP03586)

$

$

Not available

33

Homelite 30128

STRAINER- Suction, 2"
(Superseded to UP06390)

$

$

Not available

34

Homelite A43169AS

ENGINE- Briggs & Stratton (Models 111S2-1 & 111S2-1A)

$

$

Currently unavailable

Homelite 46435

DECAL- Engine (Not shown)

$

$

Not available

Homelite A49740AS

ENGINE- Robin (Model RS2)

$

$

Currently unavailable

Homelite 49381

DECAL- Engine (not shown)

$

$

Currently unavailable

35

Homelite 49266

TACK- Metal (Model RS2)

$7.99

$

Usually ships in 3-7 days

0

Homelite 49369

BRACKET- Lite (Model RS2)

$7.49

$

Usually ships in 3-7 days

0

Homelite 49389

DECAL- Low oil (Model RS2)

$7.49

$

Usually ships in 3-7 days

0

36

Homelite 54661

PLATE- Warning

$

$

Not available

37

Homelite 48674

DECAL- Class

$

$

Currently unavailable

38

Homelite 62315

DECAL- Fill pump

$

$

Not available

Homelite 23475

PAINT- Red (Spray Can) (optional)

$

$

Not available

Homelite 48396

DRAIN- suction disk

$

$

Not available
