RS-2 - Scag Riding Sulky RS-2 RIDING SULKY Parts Diagram

Riding Sulky

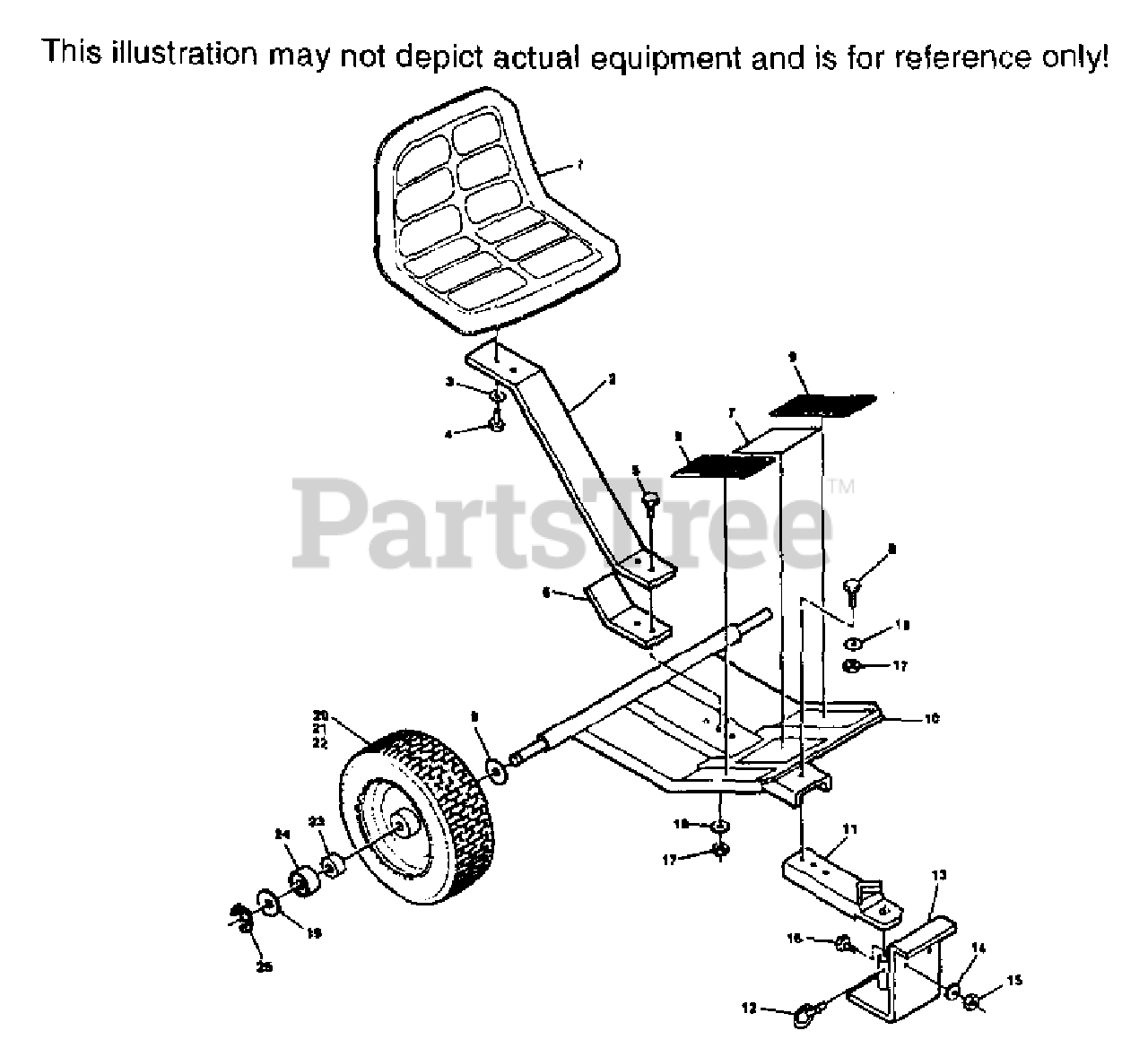

RS-2 RIDING SULKY Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

1A

Scag 48427

SEAT ASSEMBLY(2 HOLE)
(Superseded to 48592)

$651.99

$

Usually ships in 2-12 days

0

1B

Scag 48272

SEAT ASSEMBLY(1 HOLE)
(Superseded to 48592)

$651.99

$

Usually ships in 2-12 days

0

2

Scag 42321

SEAT SPRING

$115.99

$

Usually ships in 2-12 days

0

3

LOCKWASHER 1/2 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

4

HEX HEAD BOLT 1/2-13 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

HEX HEAD BOLT 7/16-14 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

6

Scag 42322

SPRING SUPPORT

$

$

Not available

7

Scag 48261

DECAL
(Superseded to 482392)

$34.99

$

In Stock, only 2 left!

0

8

HEX HEAD BOLT 7/16-14 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

Scag 48262

PAD, NON-SKID

$15.99

$

Usually ships in 2-12 days

0

10

Scag 45123

FRAME WELDMENT

$

$

Not available

11

Scag 45124

HITCH EXTENSION WELDMENT

$155.99

$

Usually ships in 2-12 days

0

12

Scag 04066

QUICK PIN
(Superseded to 04066-01)

$8.99

$

In Stock, Qty 7

0

13

Scag 45125

MOUNTING BRACKET WELDMENT

$134.99

$

Usually ships in 2-12 days

0

14

LOCKWASHER 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

HEX NUT 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

HEX HEAD BOLT 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

17

HEX NUT 7/16-14

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

18

LOCKWASHER 7/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

Scag 04042-05

WASHER 1-1/6 X 1-3/4 X .100

$0.99

$

In Stock, Qty 18

0

20

Scag 48260-01

WHEEL ASSEMBLY(INCL. 21-24)
(Superseded to 48260)

$235.99

$

Usually ships in 2-12 days

0

21

Scag 48260-02

TIRE ONLY 16.3 X 4.80-8
(Superseded to 481909)

$195.99

$

Usually ships in 2-12 days

0

22

Scag 48260-03

RIM ONLY
(Superseded to 481910)

$176.99

$

Usually ships in 2-12 days

0

23

Scag 48260-04

BEARING ONLY
(Superseded to 481911)

$23.99

$

Usually ships in 2-12 days

0

24

Scag 48260-05

RETAINING CAP ONLY
(Superseded to 481912)

$4.99

$

Usually ships in 2-12 days

0

25

Scag 04050-08

RETAINING RING 1.00 EXT. "E"

$0.99

$

In Stock, Qty 12

0
