RRT 12L36 A - Electrolux/AYP Lawn Tractor MOWER DECK Parts Diagram

Lawn Tractor

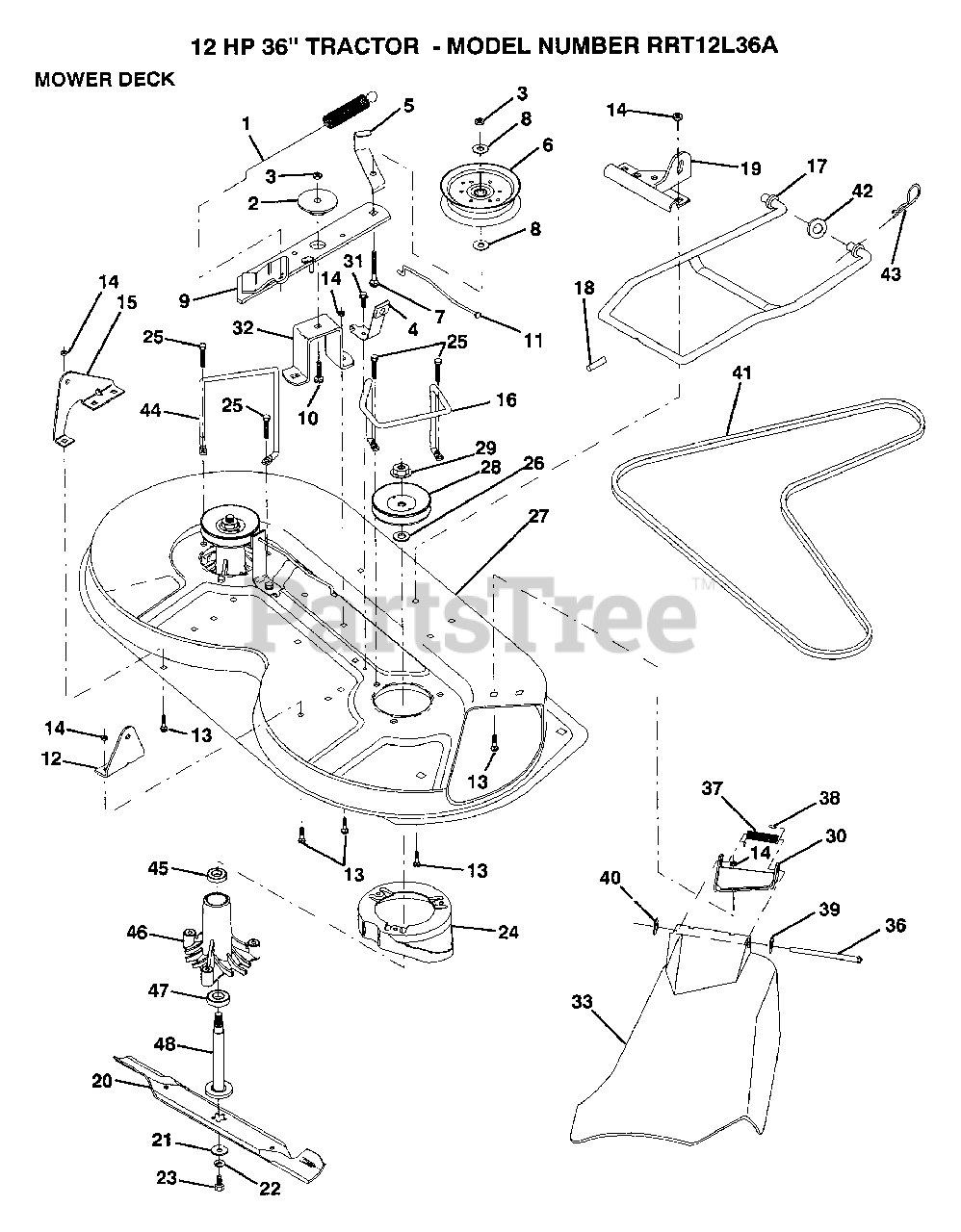

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 127743

SUB= 140064
(Superseded to 532127743)

$

$

Not available

2

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 130840

BRAKE ASM
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 131251

IDLER BELT GUIDE
(Superseded to 532131251)

$

$

Not available

6

Electrolux/AYP 121316X

PULLEY IDLER
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 72110616

BOLT
(Superseded to 872110616)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 19131410

WASHER
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 127744

SUB= 140092

$

$

Not available

10

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 130841

BRAKE ROD
(Superseded to 532130841)

$30.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 127356

"BRKT,LIFT REAR"
(Superseded to 532127356)

$

$

Not available

13

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

14

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 127357

"BRKT,LIFT REAR LH"
(Superseded to 532127357)

$

$

Not available

16

Electrolux/AYP 130837

SUB= 153298

$

$

Not available

17

Electrolux/AYP 128508

MOWER LINK STAB
(Superseded to 539128508)

$157.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 128511

"PIN,GROOVE"
(Superseded to 532128511)

$

$

Not available

19

Electrolux/AYP 127380

"BRKT,LINK STABILI"
(Superseded to 532127380)

$

$

Not available

20

Electrolux/AYP 127841

SUB= 138496

$

$

Not available

21

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

23

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 128961

SUB= 140329

$

$

Not available

25

Electrolux/AYP 78158

SUB= 17580520

$

$

Not available

26

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

27

Electrolux/AYP 129983

SUB= 156600
(Superseded to 532174082)

$

$

Not available

28

Electrolux/AYP 129207

SUB= 153531
(Superseded to 532129207)

$

$

Not available

29

$

$

Not available

30

Electrolux/AYP 126361X

SUB= 532136631

$

$

Not available

31

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 122051X

"SUPT,IDLER ARM"
(Superseded to 532122051)

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 131560

SUB= 532131560

$

$

Not available

36

Electrolux/AYP 121980X

HINGE ROD
(Superseded to 532121980)

$

$

Not available

37

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 131264

V-BELT.PRIM.78.5.
(Superseded to 532131264)

$39.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 130836

SUB= 140608

$

$

Not available

45

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 14

0

46

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 133172

SUB= 137646

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 5

0

Electrolux/AYP 134021

SUB= 140979

$

$

Not available
