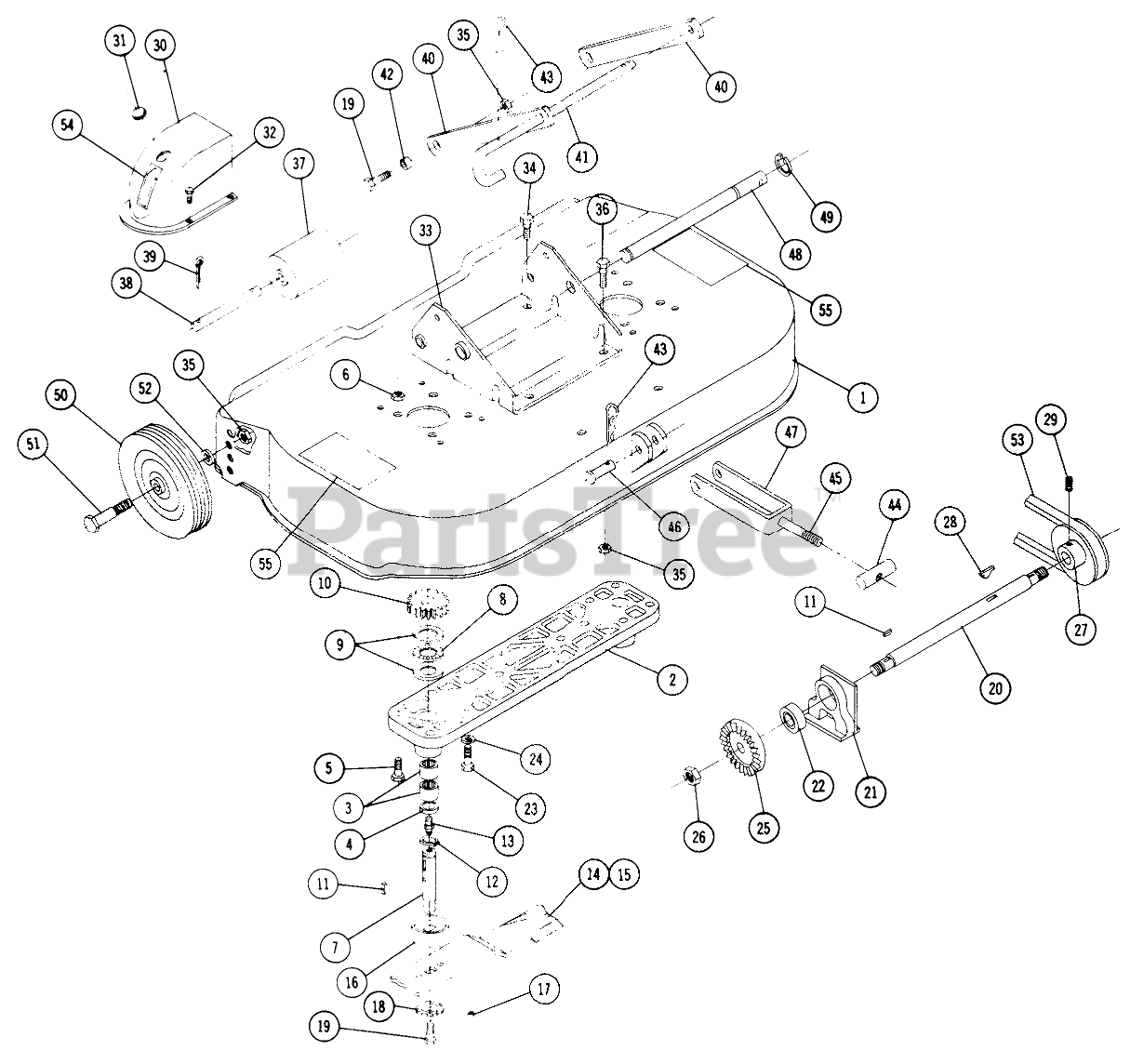

RR-47 - Toro Rear-Engine Riding Mower (1967) Rr-47 Mower Parts List Parts Diagram

Rear-Engine Riding Mower

Rr-47 Mower Parts List Parts Diagram

  • Title

1

Toro 5726

Ass-y. Deck

$

$

Currently unavailable

2

Toro 5233

DISCONTINUED

$

$

Not available

3

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

4

Toro 1303

See Supercession: 100441
(Superseded to 100441)

$9.99

$

In Stock, only 1 left!

0

5

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

6

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

7

Toro 3724

DISCONTINUED

$

$

Not available

8

Toro 1534

See Supercession: 99-3836
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

9

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 1 left!

0

10

Toro 3131

DISCONTINUED

$

$

Not available

11

Toro 937084

DISCONTINUED

$

$

Not available

12

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

13

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

14

Toro 3718

See Supercession: 704058
(Superseded to 704058)

$

$

Not available

15

Toro 3719

See Supercession: 704155
(Superseded to 704155)

$

$

Not available

16

Toro 3716

DISCONTINUED

$

$

Not available

17

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

18

Toro 1336

DISCONTINUED

$

$

Not available

19

Toro 908033-5

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

20

Toro 3715

DISCONTINUED

$

$

Not available

21

Toro 3138

BEARING SUPPORT

$

$

Not available

22

Toro 1515

See Supercession: 101480
(Superseded to 101480)

$56.99

$

In Stock, only 3 left!

0

23

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

24

Toro 920083-4

Lockwasher

$

$

Currently unavailable

25

Toro 3130

See Supercession: 7898
(Superseded to 7898)

$

$

Not available

26

Toro 915639

See Supercession: 3296-33
(Superseded to 3296-33)

$2.99

$

Usually ships in 3-6 days

0

27

Toro 1613

DISCONTINUED

$

$

Not available

28

Toro 937159

See Supercession: 937225
(Superseded to 937225)

$5.49

$

Usually ships in 3-6 days

0

29

Toro 909862-5

Set Screw

$

$

Currently unavailable

30

Toro 3141

DISCONTINUED

$

$

Not available

31

Toro 3757

PLUG BUTTON

$

$

Not available

32

Toro 1304

SCREW

$0.99

$

Usually ships in 3-6 days

0

33

Toro 5736

Hanger

$

$

Currently unavailable

34

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

35

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

36

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

37

Toro 5240

See Supercession: 94-1599
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

38

Toro 5241

See Supercession: 101881
(Superseded to 101881)

$16.99

$

Usually ships in 3-6 days

0

39

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

40

Toro 6676

DISCONTINUED

$

$

Not available

41

Toro 6677

DISCONTINUED

$

$

Not available

42

Toro 4937

DISCONTINUED

$

$

Not available

43

Toro 933505-4

Hairpin

$

$

Currently unavailable

44

Toro 6830

DISCONTINUED

$

$

Not available

45

Toro 900885-4

Bolt Square Head 1/2-13 x 2 3/4

$

$

Currently unavailable

46

Toro 932965-4

Clevis Pin

$

$

Currently unavailable

47

Toro 6831

DISCONTINUED

$

$

Not available

48

Toro 5735

Shaft-Belt Tightener

$

$

Currently unavailable

49

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

50

Toro 2877

See Supercession: 110506
(Superseded to 110506)

$42.99

$

In Stock, only 2 left!

0

51

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

52

Toro 920009-4

Washer

$

$

Currently unavailable

53

Toro 1596

V BELT

$

$

Not available

54

Toro 3710

Decal

$

$

Currently unavailable

55

Toro 4570

See Supercession: 93-1122
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0
