RPXL-65011 - Subaru Robin Submersible Pump 4200 Pump Parts Diagram

Submersible Pump

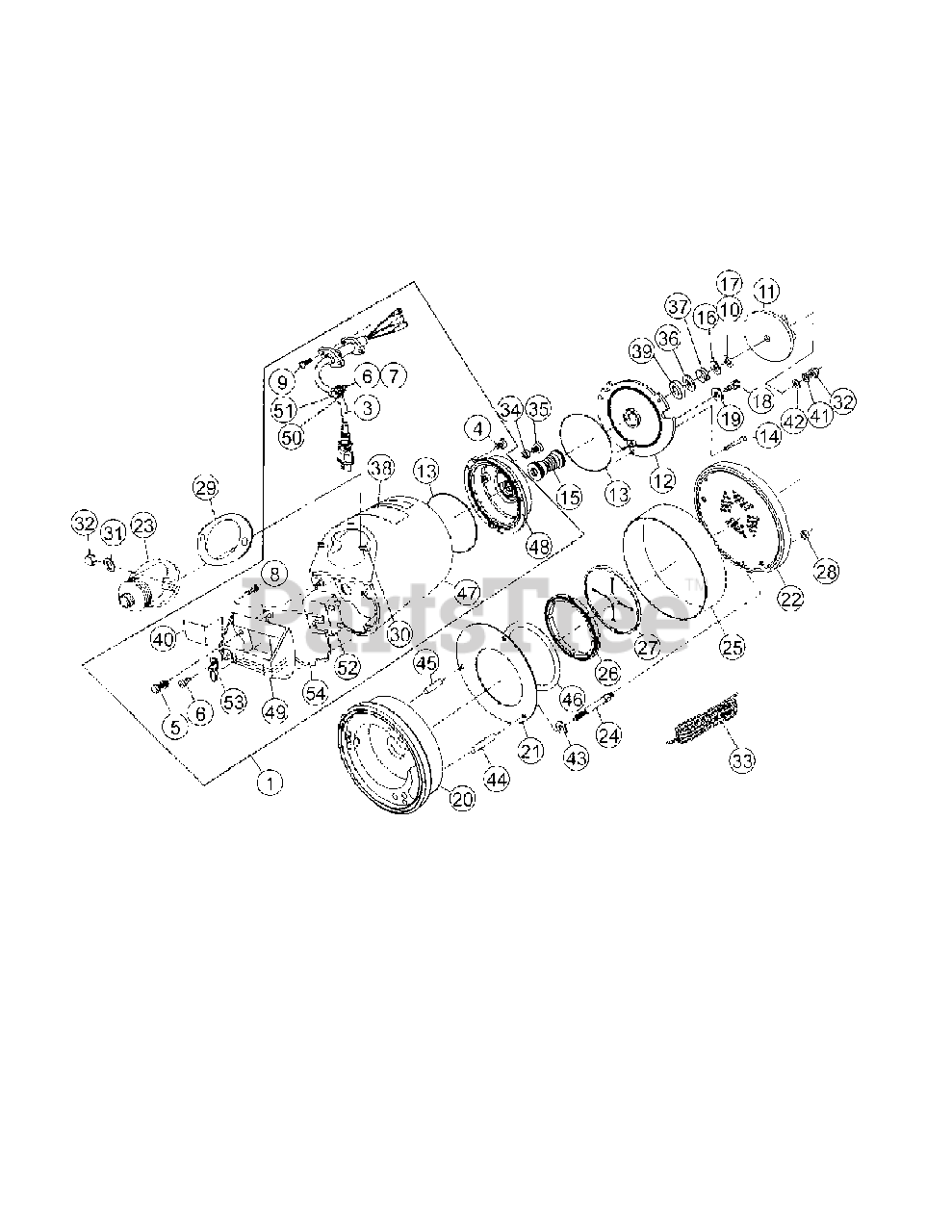

4200 Pump Parts Diagram

  • Title

$

$

Not available

$

$

Not available

3

0430308

Power Cord

$

$

Not available

4

73460503

Hex Bolt

$

$

Not available

5

0430406

Hex Bolt

$

$

Not available

6

70330510

Screw

$

$

Not available

7

0430409

Nut

$

$

Not available

8

70782007

Screw

$

$

Not available

9

70330510

Screw

$

$

Not available

10

0430441

Adjusting Washer

$

$

Not available

11

0430280

Impeller

$

$

Not available

12

0430271

Front Cover

$

$

Not available

13

88995512

O ring

$

$

Not available

14

73450503

Hex Socket Bolt

$

$

Not available

15

Subaru Robin 0430243

Mechanical Seal

$

$

Currently unavailable

16

0430300

Adjusting Washer

$

$

Not available

18

0390037

Hex Socket Bolt

$

$

Not available

19

85425501

Seal Washer

$

$

Not available

20

0430334

Casing

$

$

Not available

21

0430329

Suction Cover

$

$

Not available

22

0430241

Bottom Strainer

$

$

Not available

23

0430367

Delivery Flange

$

$

Not available

24

0430242

Stud Bolt

$

$

Not available

25

0430236

Strainer Stand

$

$

Not available

26

0430239

Seal Ring

$

$

Not available

27

0430331

Check Valve

$

$

Not available

28

82740500

Nut

$

$

Not available

29

0430283

Delivery Gasket

$

$

Not available

30

0430290

Stud Bolt

$

$

Not available

31

846007008

Washer

$

$

Not available

32

835305008

Cap Nut

$

$

Not available

33

0390101

Rope

$

$

Not available

34

0340142

Seal Ring

$

$

Not available

35

0340153

Screw

$

$

Not available

36

0340277

Thrust Washer

$

$

Not available

37

895154014

Oil Seal

$

$

Not available

38

---------

Label

$

$

Not available

39

---------

Thrust Washer Gasket

$

$

Not available

40

0430299

Label

$

$

Not available

41

845305008

Toothed Washer

$

$

Not available

42

846505008

Washer

$

$

Not available

43

854255008

Seal Washer

$

$

Not available

44

0430361

Spacer, long

$

$

Not available

45

0430362

Spacer, short

$

$

Not available

46

0430360

Suction Cover Gasket

$

$

Not available

47

0430266

Motor Frame

$

$

Not available

48

0430267

Bracket

$

$

Not available

49

0430268

Handle

$

$

Not available

50

0390031

Cord Supporter

$

$

Not available

51

0260018

Cord Band

$

$

Not available

52

Subaru Robin 0430392

Condenser

$

$

Currently unavailable

53

0438066

Chain Ay

$

$

Not available

54

0430401

Head Gasket

$

$

Not available
