RPX 210 (2691704-01) - Snapper 96cm Lawn Tractor, 7720 Series Briggs & Stratton Seat Group Parts Diagram

96cm Lawn Tractor, 7720 Series Briggs & Stratton

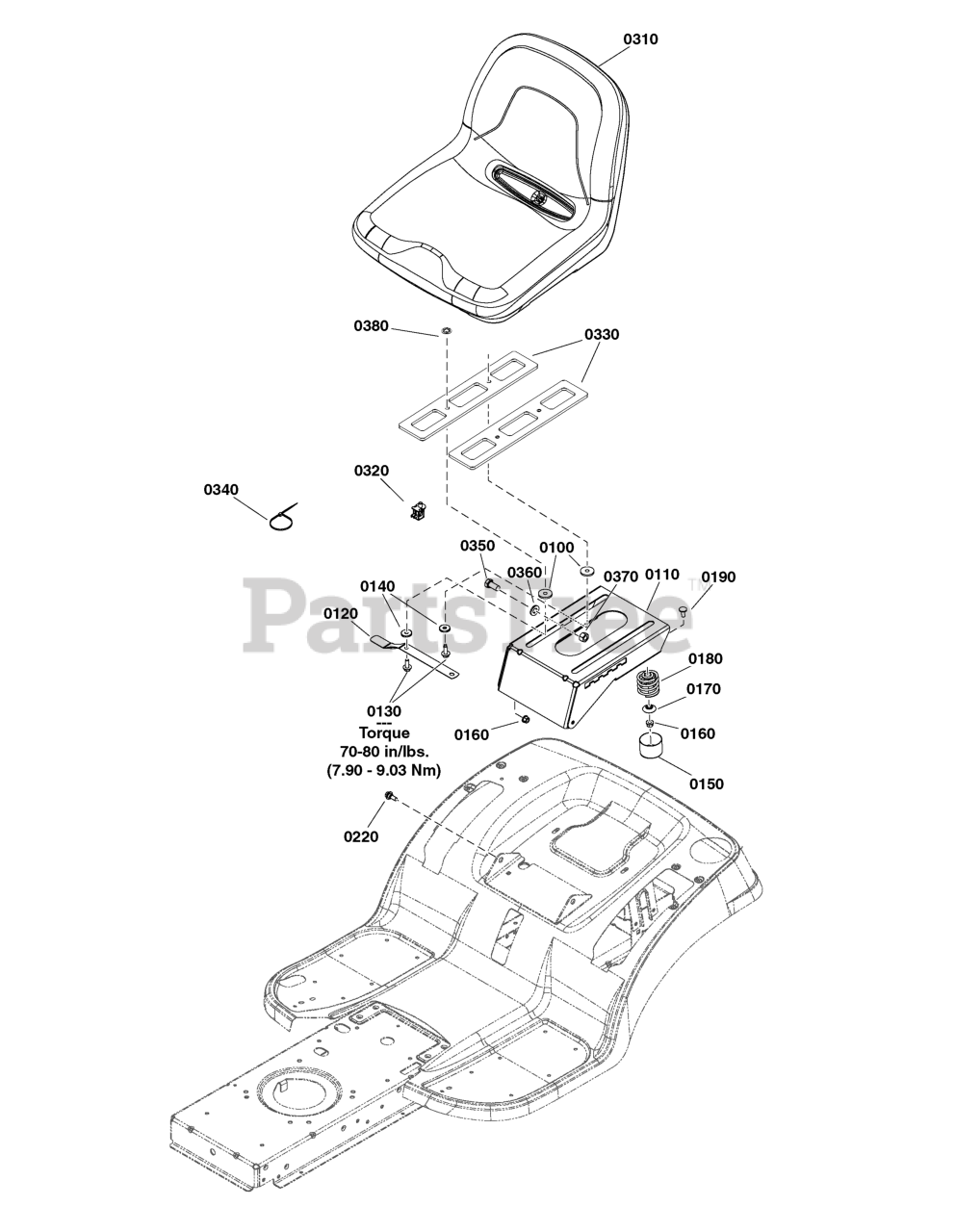

Seat Group Parts Diagram

  • Title

0100

Snapper 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16"

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1755767BMYP

SUPPORT, Seat

$152.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268BMYP

LATCH, Seat

$9.49

$

Usually ships in 2-12 days

0

0130

Snapper 1933689SM

SCREW, 5/16-18 x 1-1/2, Hex Flange, Whiz Lock

$4.49

$

Usually ships in 2-12 days

0

0140

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 1704724SM

COVER, Spring, 1-1/2"

$7.99

$

In Stock, only 4 left!

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

0180

Snapper 1704728SM

SPRING, Compression, 2"

$9.99

$

In Stock, only 2 left!

0

0190

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0220

Snapper 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0310

Snapper 84003944

SEAT, 15"

$390.99

$

Usually ships in 2-12 days

0

0320

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0330

Snapper 84003652

SPACER, Plate

$34.99

$

Usually ships in 2-12 days

0

0340

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0350

Snapper 1923114SM

CAPSCREW, Hex Head 1/2-13 x 1, Black

$3.99

$

In Stock, only 2 left!

0

0360

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0370

Snapper 703340

NUT, Hex, 1/2-13, GR5

$7.99

$

In Stock, only 1 left!

0

0380

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+
