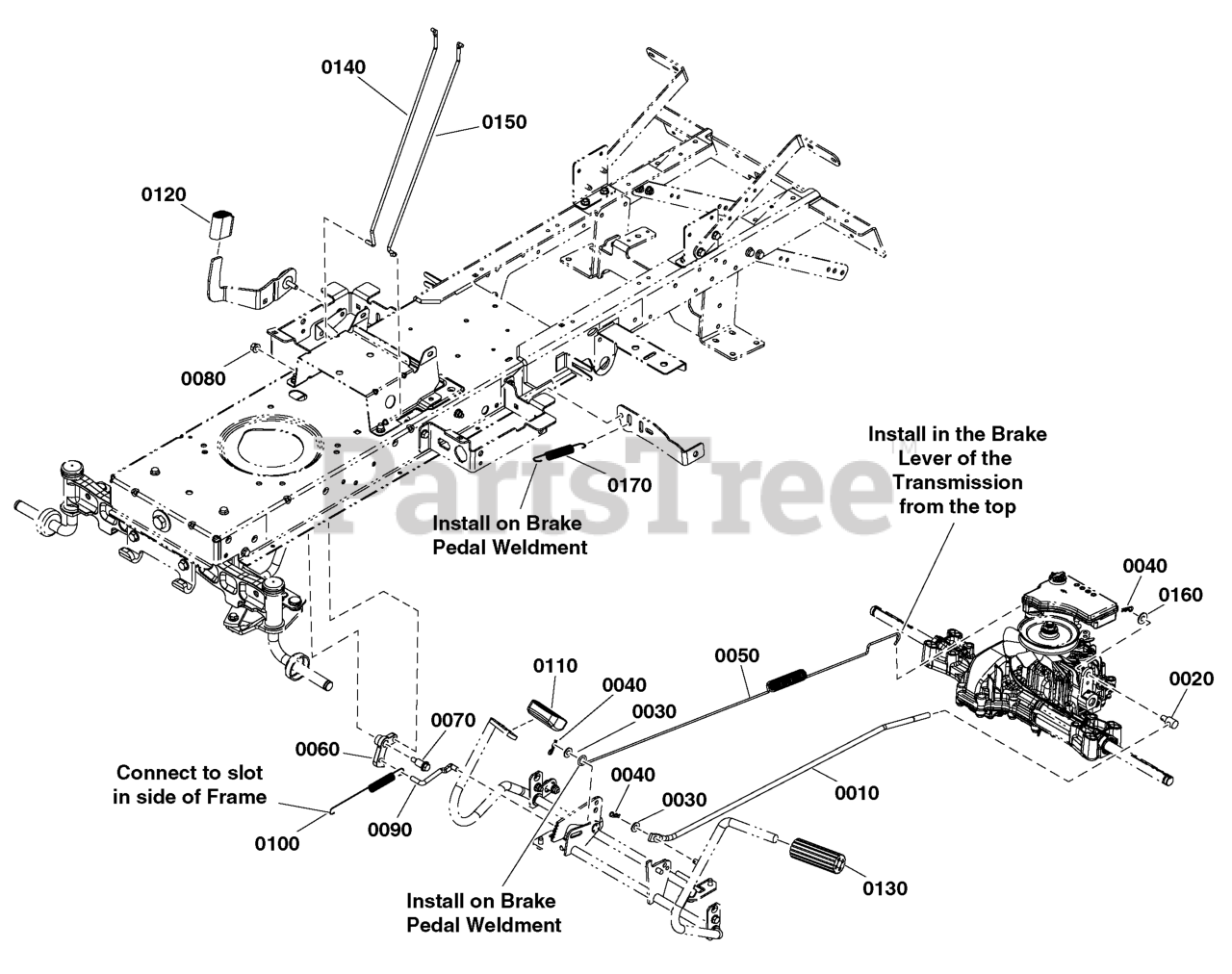

RPX 210 (2691704-01) - Snapper 96cm Lawn Tractor, 7720 Series Briggs & Stratton Controls Group Parts Diagram

96cm Lawn Tractor, 7720 Series Briggs & Stratton

Controls Group Parts Diagram

  • Title

0010

Snapper 84002680

ROD

$33.99

$

Usually ships in 2-12 days

0

0020

Snapper 84002684

NUT, Adjustment

$12.99

$

Usually ships in 2-12 days

0

0030

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0040

Snapper 703430

PIN, 13X1.19

$3.49

$

In Stock, only 1 left!

0

0050

Snapper 84002686

SPRING, Brake

$20.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727897SM

LATCH, Cruise

$9.99

$

Usually ships in 2-12 days

0

0070

Snapper 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0080

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 1727899SM

ROD, Cruise Latch, 5/16 Dia. x 2-13/16 Long

$7.49

$

Usually ships in 2-12 days

0

0100

Snapper 2159181SM

SPRING, Extension, 9/16 OD x 7-3/4

$7.49

$

In Stock, only 1 left!

0

0110

Snapper 1721675SM

PAD, Foot Pedal, Forward

$

$

Not available

0120

Snapper 1727259SM

PAD, Foot Pedal, Reverse

$8.49

$

Usually ships in 2-12 days

0

0130

Snapper 1727261SM

PEDAL, Brake Pad

$9.99

$

In Stock, only 4 left!

0

0140

Snapper 1739877YP

ROD, Cruise Latch, 1/4 Dia. x 17

$12.99

$

Usually ships in 2-12 days

0

0150

Snapper 1739876YP

ROD, Parking Brake, 1/4 Dia. x 16-3/8 Long

$16.99

$

Usually ships in 2-12 days

0

0160

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0170

Snapper 84002687

SPRING, Extension

$3.99

$

Usually ships in 2-12 days

0
