RPX 200 (2691291-01) - Snapper 96cm Lawn Tractor, 7720 Series Briggs & Stratton Collector Group Parts Diagram

96cm Lawn Tractor, 7720 Series Briggs & Stratton

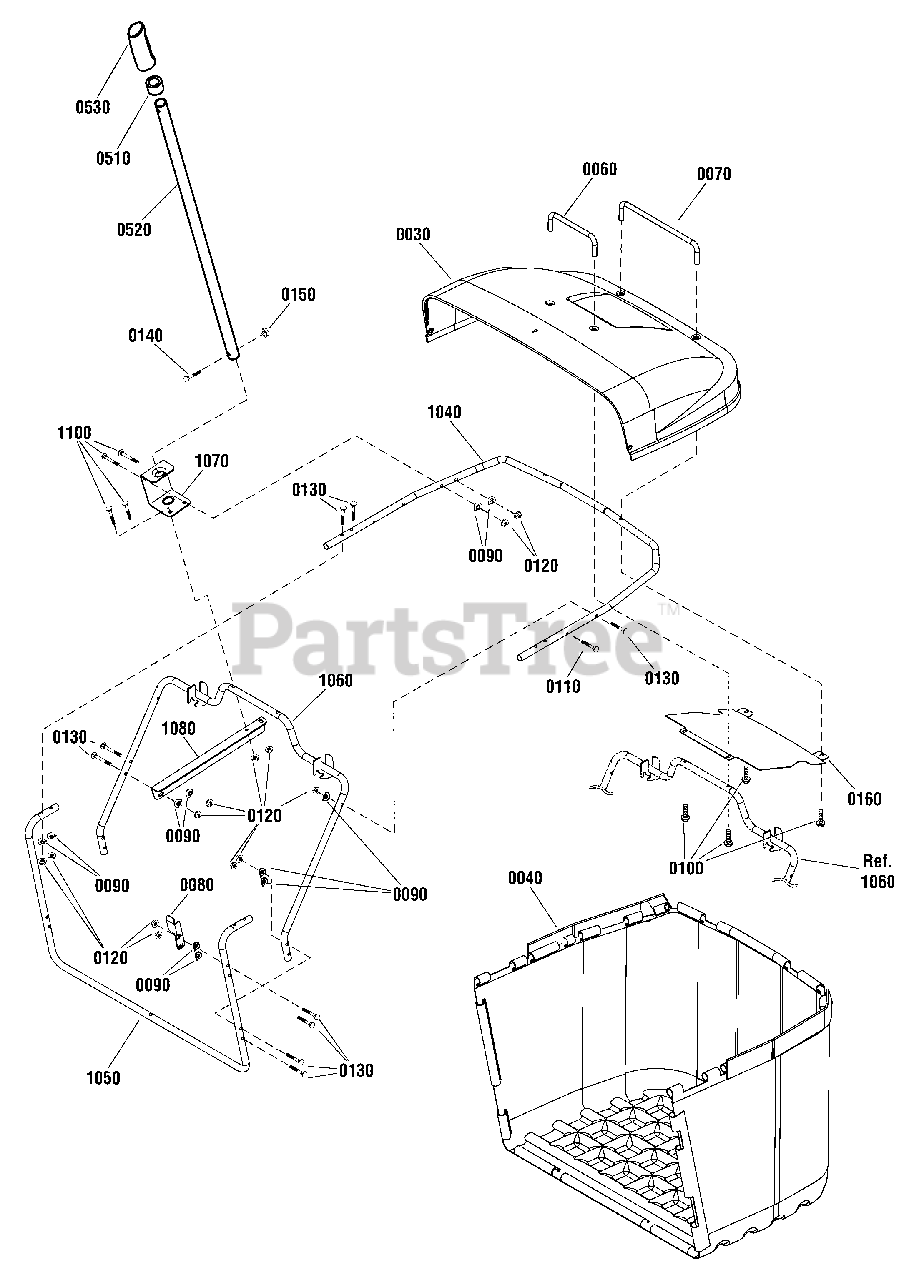

Collector Group Parts Diagram

  • Title

0030

Snapper 1758510YP

COVER, Collector

$461.99

$

Usually ships in 2-12 days

0

0040

Snapper 1758532YP

BAG, Collector

$376.99

$

Usually ships in 2-12 days

0

0060

Snapper 1758751BMYP

HANDLE, Front

$29.99

$

Usually ships in 2-12 days

0

0070

Snapper 885430AYP

HANDLE, Back

$41.99

$

Usually ships in 2-12 days

0

0080

Snapper 1758781BMYP

SWITCH PLATE

$20.99

$

Usually ships in 2-12 days

0

0090

Snapper 880615YP

WASHER

$4.99

$

Usually ships in 2-12 days

0

0100

Snapper 706884

SCREW , Hex Washer Head, 1/4-20 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

0110

Snapper 885564YP

SCREW, Torx, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 706883

SCREW, 5/16-18 x 2

$5.49

$

Usually ships in 2-12 days

0

0140

Snapper 001X94MA

BOLT, Hex, 1/4-20 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

0150

Snapper 015X89MA

NUT, Hex Flange, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

0160

Snapper 1758926BMYP

SHIELD, Collector

$101.99

$

Usually ships in 2-12 days

0

0510

Snapper 885433YP

ADJUSTER, Handle

$7.49

$

Usually ships in 2-12 days

0

0520

Snapper 885518AYP

HANDLE, Bagger

$47.99

$

Usually ships in 2-12 days

0

0530

Snapper 1723359SM

GRIP

$10.99

$

Usually ships in 2-12 days

0

1040

Snapper 1758255BMYP

FRAME, Bagger Support, Upper

$77.99

$

Usually ships in 2-12 days

0

1050

Snapper 1758256BMYP

FRAME, Bagger Support, Front

$80.99

$

Usually ships in 2-12 days

0

1060

Snapper 1758329BMYP

FRAME, Bagger Support

$364.99

$

Usually ships in 2-12 days

0

1070

Snapper 1758357BMYP

SUPPORT, Dump Handle

$22.99

$

Usually ships in 2-12 days

0

1080

Snapper 1758659BMYP

BRACKET Dump Handle

$43.99

$

Usually ships in 2-12 days

0

1100

Snapper 703296

BOLT, Carriage, 5/16-18 x 1 1/2

$4.49

$

In Stock, only 3 left!

0
