RPX 200 (2691252-00) - Snapper 96cm Lawn Tractor, 7720 Series Briggs & Stratton 96cm Mower Deck - Housing, Arbors & Blades Group Parts Diagram

96cm Lawn Tractor, 7720 Series Briggs & Stratton

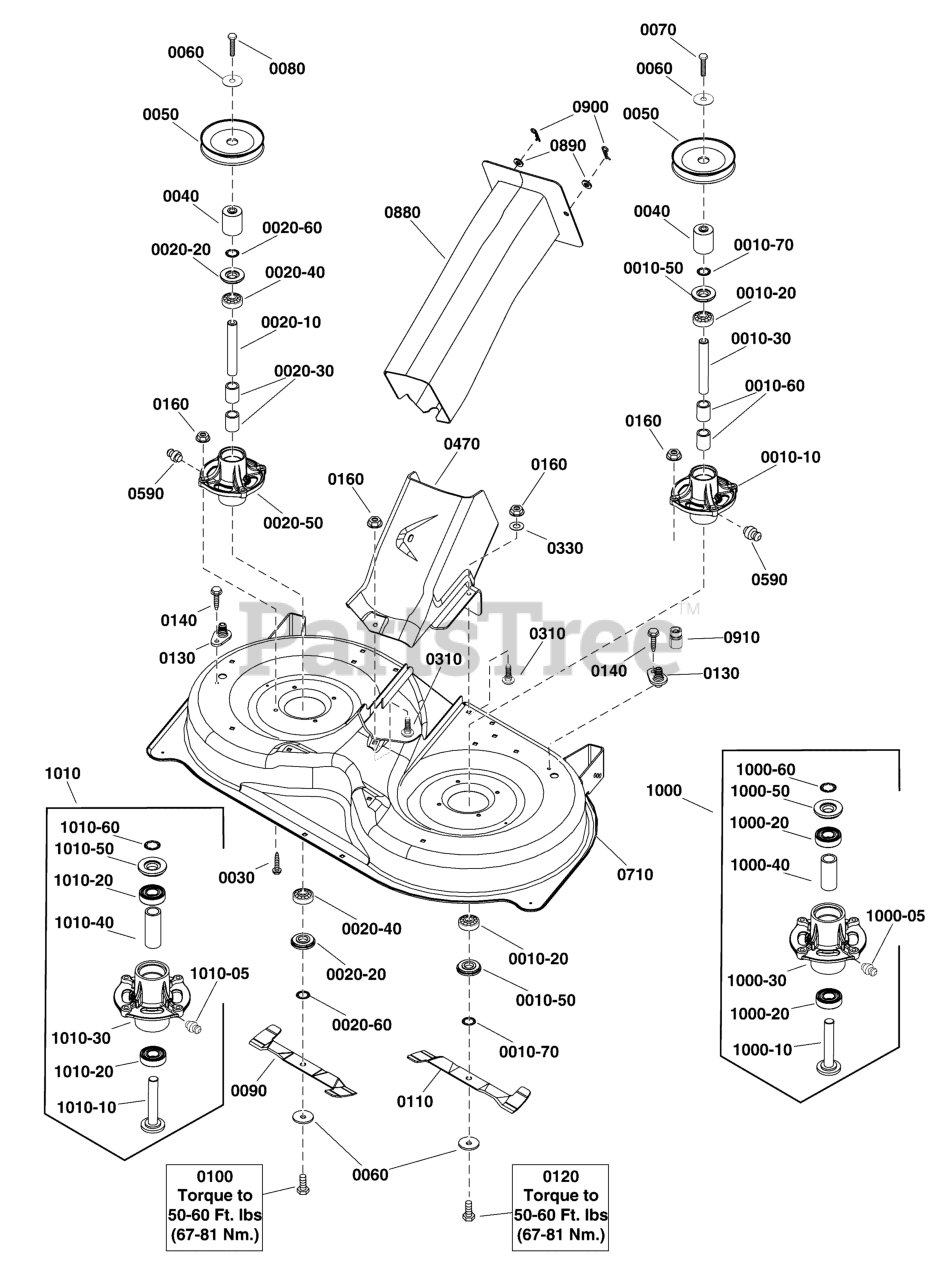

96cm Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

--

Snapper 7502226YP

ARBOR ASSEMBLY
(Superseded to 84003175)

Note: (Includes Ref. Nos, 0010-10 through 0010-60)(Replaced by Ref. Nos. 1000, this arbor assembly is an exact replacement)

$100.99

$

In Stock, only 1 left!

0

0010-10

Snapper 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 1735326YP

SHAFT, Spindle, LH
(Superseded to 1760276YP)

Note: (Replaced by Ref. Nos. 1000-10, this spindle shaft is an exact replacement for the shaft, shield and ring)

$27.99

$

In Stock, only 4 left!

0

0010-50

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0010-60

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1000-40, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0010-70

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1000

Snapper 84003175

ARBOR ASSEMBLY

$100.99

$

In Stock, only 1 left!

0

1000-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1000-10

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

1000-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1000-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 9

0

1000-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1000-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1000-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

--

Snapper 885551YP

ARBOR ASSEMBLY
(Superseded to 84003176)

Note: (Includes Ref. Nos, 0020-10 through 0020-60)(Replaced by Ref. Nos. 1010, this arbor assembly is an exact replacement)

$59.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 885420YP

SHAFT, Spindle, RH (LH Thread)
(Superseded to 1760279YP)

Note: (Replaced by Ref. Nos. 1010-10, this spindle shaft is an exact replacement for the shaft, shield and ring)

$46.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0020-30

Snapper 1735328YP

SPACER, Bearing

Note: (Replaced by Ref. Nos. 1010-40, this spacer is an exact replacement)

$6.49

$

In Stock, only 3 left!

0

0020-40

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0020-50

Snapper 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0020-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

1010

Snapper 84003176

ARBOR ASSEMBLY, RH

$59.99

$

Usually ships in 2-12 days

0

1010-05

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

1010-10

Snapper 84003171

SHAFT, Spindle

$40.99

$

Usually ships in 2-12 days

0

1010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

1010-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 9

0

1010-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

1010-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, Qty 8

0

1010-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0040

Snapper 1750338YP

SPACER, Mower Drive

$16.99

$

Usually ships in 2-12 days

0

0050

Snapper 1758750YP

PULLEY

$25.99

$

Usually ships in 2-12 days

0

0060

Snapper 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0070

Snapper 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4. G5

$6.49

$

Usually ships in 2-12 days

0

0080

Snapper 703846

CAPSCREW, Socket Head, 7/16-14 x 2-3/4, LH

$8.99

$

Usually ships in 2-12 days

0

0090

Snapper 1758511BMYP

BLADE, RH

$50.99

$

Usually ships in 2-12 days

0

0100

Snapper 703845

CAPSCREW, Socket Head, 7/16-14 x 1, LH

$10.99

$

In Stock, only 2 left!

0

0110

Snapper 1758512BMYP

BLADE, LH

$50.99

$

Usually ships in 2-12 days

0

0120

Snapper 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0130

Snapper 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0330

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0470

Snapper 885460YP

DECK, Center Cap

$193.99

$

Usually ships in 2-12 days

0

0590

Snapper 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0710

Snapper 885557AYP

DECK ASSEMBLY
(Superseded to 709692)

$445.99

$

Usually ships in 2-12 days

0

0880

Snapper 885461YP

CHUTE

$205.99

$

Usually ships in 2-12 days

0

0890

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0900

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0910

Snapper 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0
