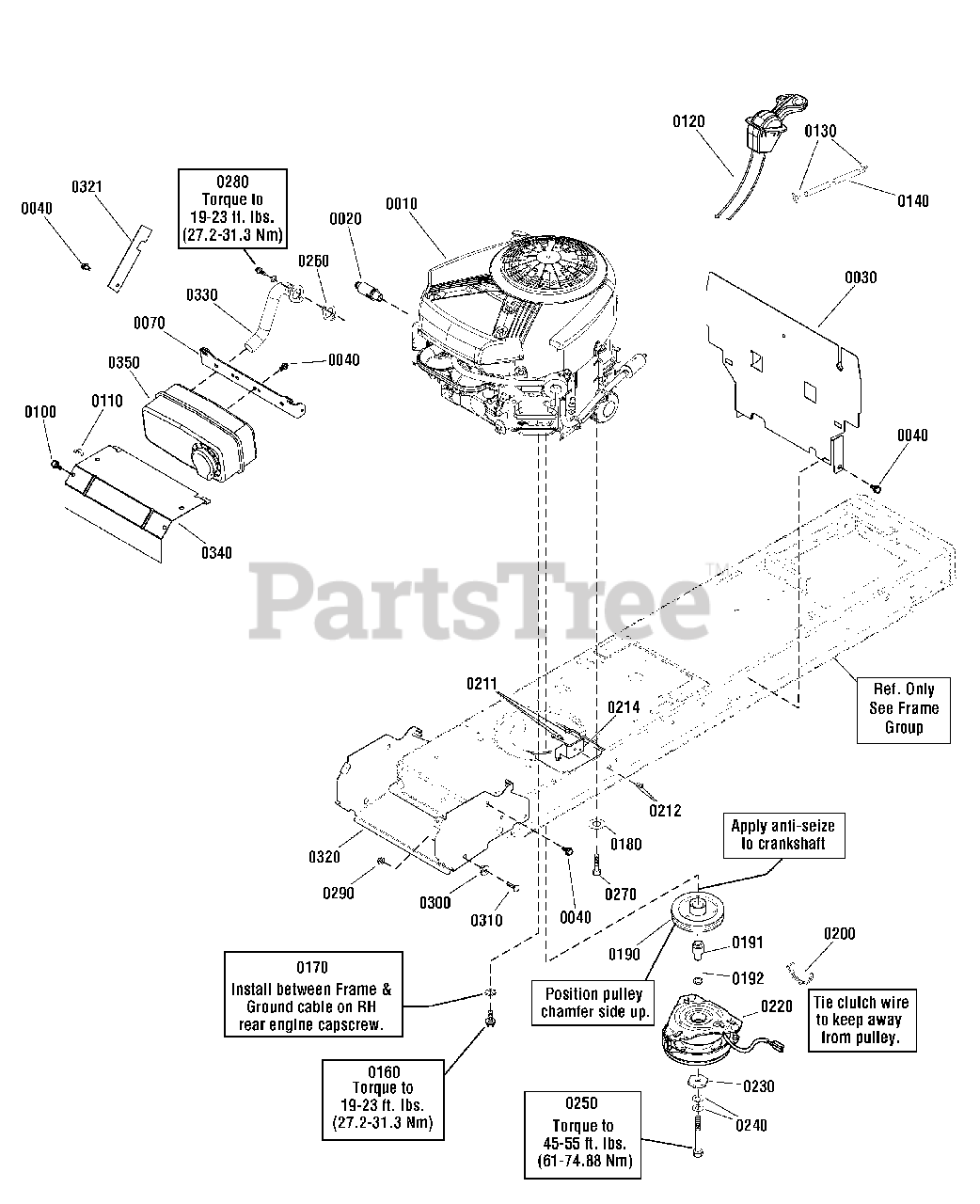

  • Title

0010

Snapper 31R977-0039-B1

* ENGINE, Briggs & Stratton 4195 Series Intek, Single

Note: (Engine Model: 31R977-0039-B1)

$

$

Not available

0020

Snapper 1750159YP

VALVE, Drain

$15.99

$

Usually ships in 2-12 days

0

0030

Snapper 1738380AYP

HEAT SHIELD, Engine

$51.99

$

Usually ships in 2-12 days

0

0040

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0070

Snapper 1759176BMYP

BRACKET, Muffler

$26.99

$

Usually ships in 2-12 days

0

0100

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 5

0

0110

Snapper 2172434SM

CLIP, Wire, .390 Dia.

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 1738794YP

CONTROL, Throttle (Choke-A-Matic)

$52.99

$

In Stock, only 1 left!

0

0130

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 845503

LINE, Fuel

$35.99

$

Usually ships in 2-12 days

0

0180

Snapper 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

Usually ships in 2-12 days

0

0191

Snapper 885679YP

SPACER, Electric Clutch

$13.99

$

Usually ships in 2-12 days

0

0192

Snapper 885810YP

SPACER, Electric Clutch, Lower

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

0211

Snapper 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5

$3.99

$

In Stock, Qty 9

0

0212

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0214

Snapper 885535AYP

BRACKET, Electric Clutch Torque

$29.99

$

Usually ships in 2-12 days

0

0220

Snapper 885680YP

CLUTCH, Electric, GT1A-EH07

$307.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1960769YP

WASHER, Belleville

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 7102075YP

CAPSCREW, Hex Head, 7/16-20 x 5, G5

$7.99

$

In Stock, only 1 left!

0

0260

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 19

0

0270

Snapper 704000

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1

$4.99

$

Usually ships in 2-12 days

0

0280

Snapper 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0290

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1728086SM

PIVOT, Hood, Powdered Metal

$5.99

$

In Stock, Qty 7

0

0310

Snapper 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0320

Snapper 1738265AYP

SUPPORT, Muffler & Hood Pivot

$67.99

$

Usually ships in 2-12 days

0

0321

Snapper 1736025BMYP

GUARD, Pulley, Rear

$8.49

$

Usually ships in 2-12 days

0

0330

Snapper 1728959SM

PIPE, Exhaust, Flanged, 1-1/4 OD

$34.99

$

Usually ships in 2-12 days

0

0340

Snapper 1727996ASM

HEAT SHIELD, Single Cylinder
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0350

Snapper 885615YP

MUFFLER, Single

$66.99

$

Usually ships in 2-12 days

0
