RPX 100 (2691251-00) - Snapper 96cm Lawn Tractor, 4195 Series Briggs & Stratton Transmission Group - Hydro Gear 324-0610 Parts Diagram

96cm Lawn Tractor, 4195 Series Briggs & Stratton

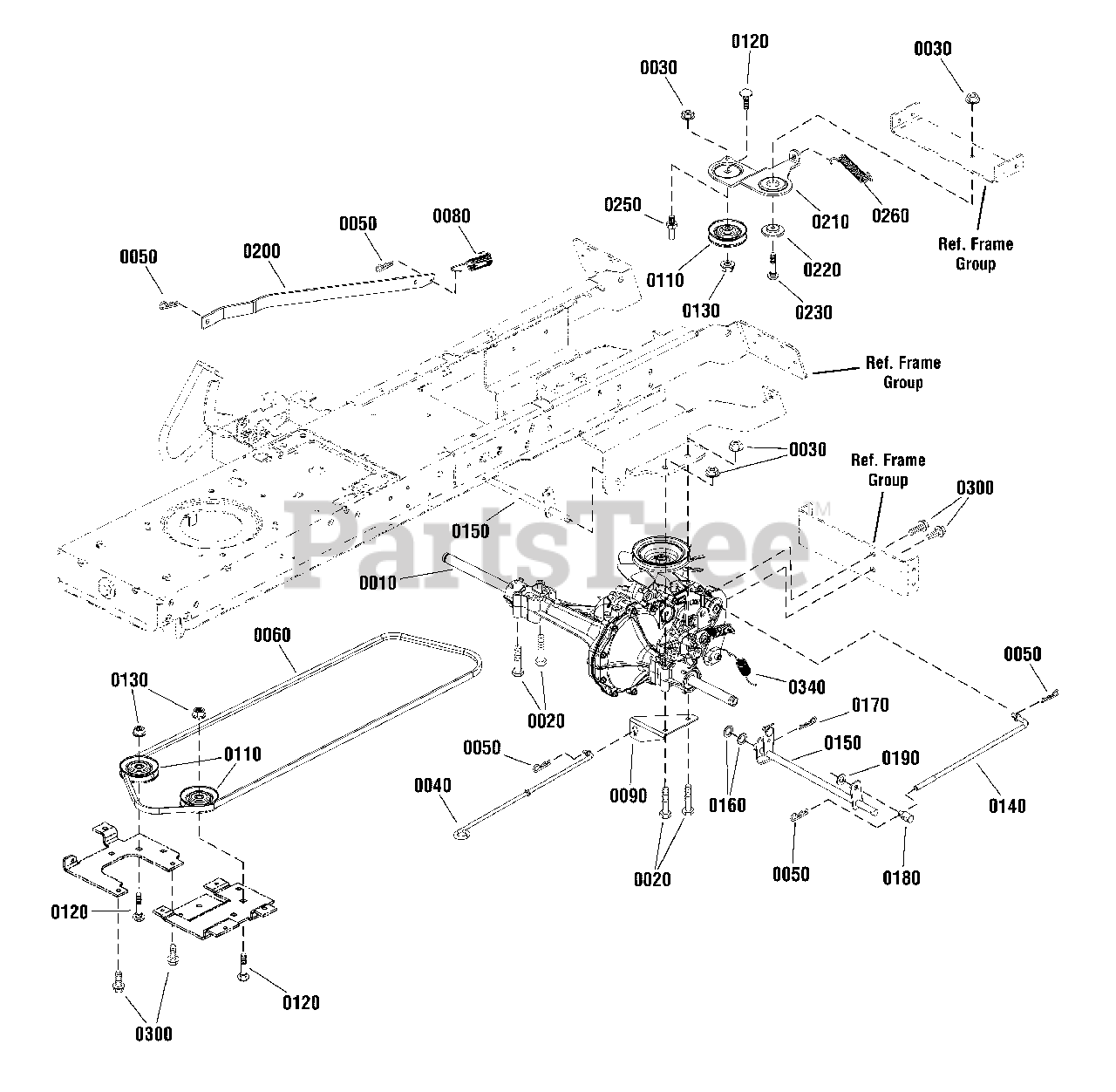

Transmission Group - Hydro Gear 324-0610 Parts Diagram

  • Title
0010

Snapper 885528YP

* TRANSMISSION, Hydro Gear, 610

$1424.99

$

Usually ships in 2-12 days

0

0020

Snapper 703869

SCREW, Hex Head Flange Lock, 5/16-18 x 2-3/4, G5

$6.49

$

Usually ships in 2-12 days

0

0030

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 885436YP

LEVER, Roll Release

$20.99

$

Usually ships in 2-12 days

0

0050

Snapper 703430

PIN, Quick

$3.49

$

In Stock, only 2 left!

0

0060

Snapper 885495YP

BELT, Secondary (81.37" EL, HA section)

$38.99

$

Usually ships in 2-12 days

0

0080

Snapper 165X75MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

0090

Snapper 885868BMYP

BRACKET, Roll Release

$12.99

$

Usually ships in 2-12 days

0

0110

Snapper 1760012YP

PULLEY, Idler

$33.99

$

Usually ships in 2-12 days

0

0120

Snapper 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 4 left!

0

0130

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0140

Snapper 885476YP

SPEED CONTROL, Short Link

$21.99

$

Usually ships in 2-12 days

0

0150

Snapper 885477AYP

SPEED CONTROL ASSEMBLY

$37.99

$

Usually ships in 2-12 days

0

0160

Snapper 017X91MA

WASHER, Flat, 13/16

$5.49

$

In Stock, Qty 11

0

0170

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 021920ZMA

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

0190

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

0200

Snapper 885480AYP

LINK, Speed Control

$60.99

$

Usually ships in 2-12 days

0

0210

Snapper 885409AYP

BRACKET, Idler, Rear

$20.99

$

Usually ships in 2-12 days

0

0220

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0230

Snapper 703800

BOLT, Carriage, Short Neck, 5/16-18 x 1, G5

$3.99

$

In Stock, Qty 7

0

0250

Snapper 885077YP

BELT GUIDE

$5.99

$

Usually ships in 2-12 days

0

0260

Snapper 1731939SM

SPRING, Extension

$9.99

$

Usually ships in 2-12 days

0

0300

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0340

Snapper 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0
