RPX 100 (2691251-00) - Snapper 96cm Lawn Tractor, 4195 Series Briggs & Stratton 96cm Mower Deck - Support Group Parts Diagram

96cm Lawn Tractor, 4195 Series Briggs & Stratton

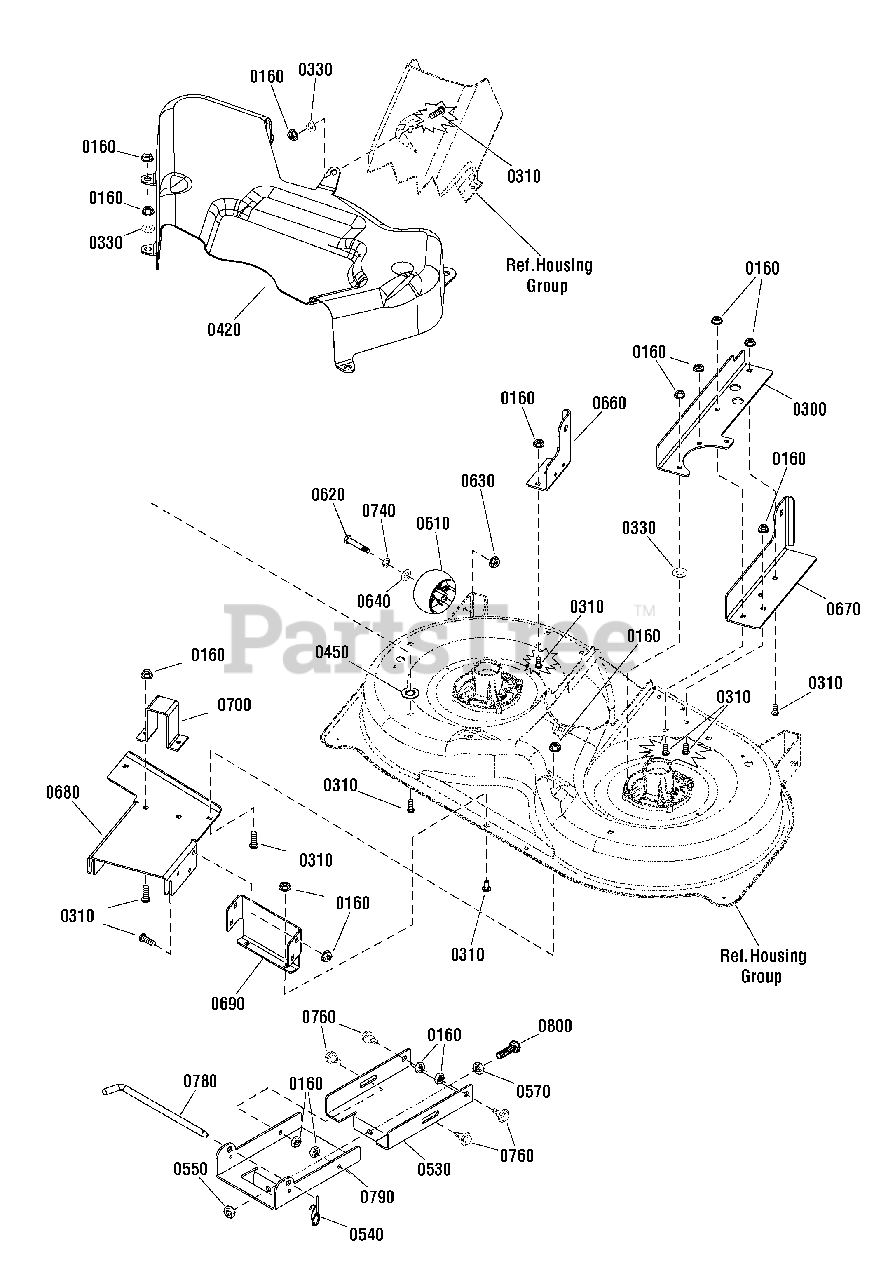

96cm Mower Deck - Support Group Parts Diagram

  • Title

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1758761BMYP

BRACKET, Rear Lift, LH

$50.99

$

Usually ships in 2-12 days

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0420

Snapper 1759108YP

COVER, Pulley

$347.99

$

Usually ships in 2-12 days

0

0450

Snapper 703297

NUT, Push On, 5/16

$3.99

$

In Stock, Qty 20+

0

0530

Snapper 885734BMYP

BRACKET, Front Connector

$53.99

$

Usually ships in 2-12 days

0

0540

Snapper 703852

PIN, Retainer, 5/16 x 3/8

$4.49

$

In Stock, Qty 20+

0

0550

Snapper 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0570

Snapper 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 20+

0

0610

Snapper 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

0620

Snapper 2108765SM

BOLT, 3/8-16 x 2-3/4

$6.49

$

In Stock, Qty 20+

0

0630

Snapper 703158

NUT, Hex Flange, ESNA, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0640

Snapper 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0660

Snapper 885462AYP

BRACKET, Deck, Rear

$15.99

$

Usually ships in 2-12 days

0

0670

Snapper 885463AYP

BRACKET, Rear Lift, LH

$37.99

$

Usually ships in 2-12 days

0

0680

Snapper 885738BMYP

SUPPORT, Deck Front

$63.99

$

Usually ships in 2-12 days

0

0690

Snapper 885740BMYP

BRACKET, Front Support

$25.99

$

Usually ships in 2-12 days

0

0700

Snapper 885519AYP

BRACKET, Front Upstop

$17.99

$

Usually ships in 2-12 days

0

0740

Snapper 0020X3MA

WASHER, Spring, .30" ID

$4.49

$

Usually ships in 2-12 days

0

0760

Snapper 1732426SM

BOLT, Shoulder, 5/16-18 x .13/16, 1/2" Thread Length

$4.49

$

In Stock, only 1 left!

0

0780

Snapper 1731414SM

ROD, Latch

$14.99

$

Usually ships in 2-12 days

0

0790

Snapper 885699BMYP

BRACKET, Front Hanger

$82.99

$

In Stock, only 1 left!

0

0800

Snapper 885710YP

BOLT, 1/2 x 3

$5.49

$

Usually ships in 2-12 days

0
