RPX 100 (2691251-00) - Snapper 96cm Lawn Tractor, 4195 Series Briggs & Stratton 96cm Mower Deck - Clutch Group Parts Diagram

96cm Lawn Tractor, 4195 Series Briggs & Stratton

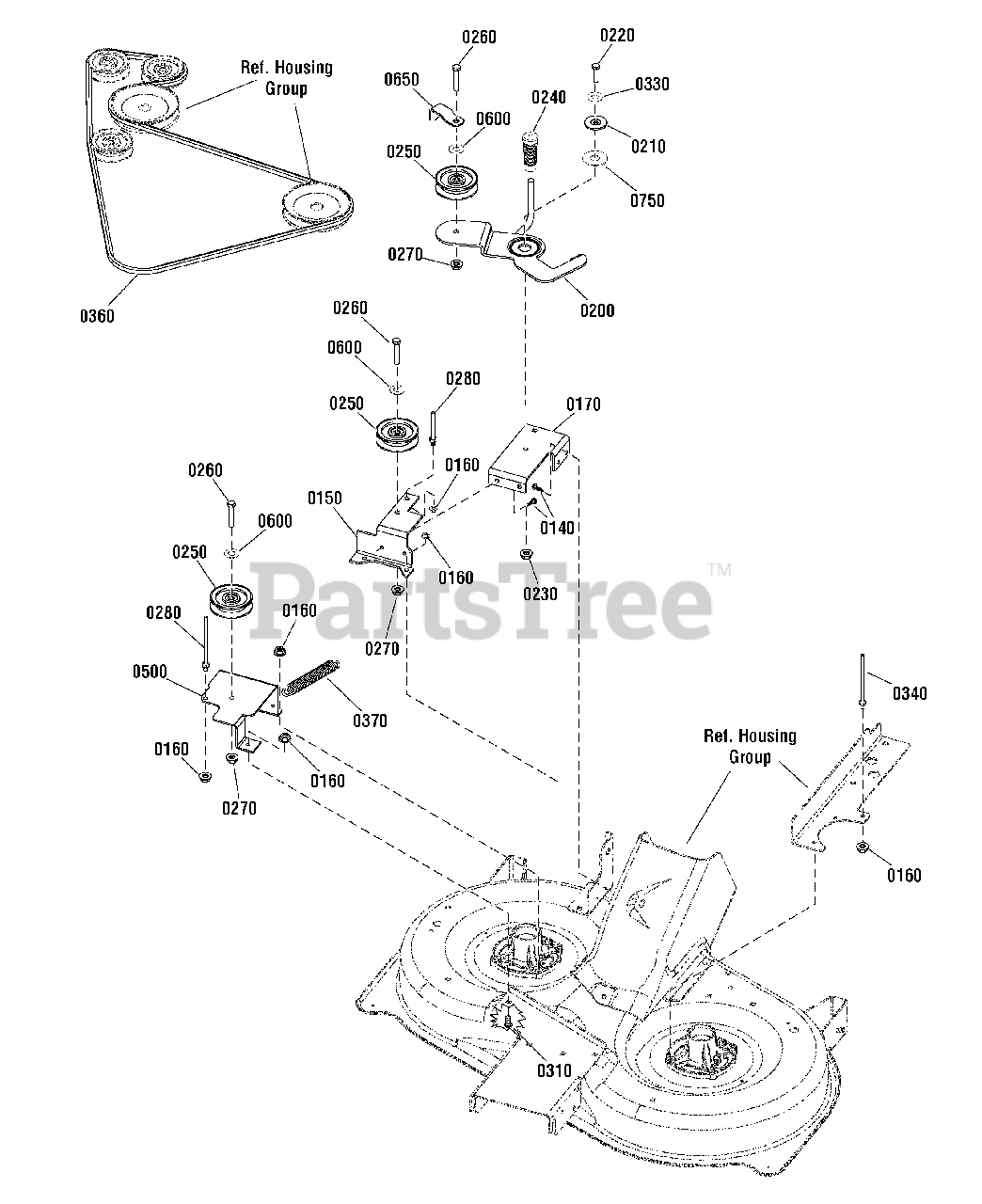

96cm Mower Deck - Clutch Group Parts Diagram

  • Title

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1758773BMYP

BRACKET, Idler, RH

$30.99

$

Usually ships in 2-12 days

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0170

Snapper 885516AYP

SUPPORT, Idler Arm

$27.99

$

Usually ships in 2-12 days

0

0200

Snapper 885559AYP

DECK IDLER ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

0210

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0220

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

0230

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 14

0

0240

Snapper 092697MA

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

0250

Snapper 885482YP

IDLER, Pulley

$33.99

$

In Stock, only 1 left!

0

0260

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0270

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 885534YP

BELT GUIDE

$9.49

$

Usually ships in 2-12 days

0

0310

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0330

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0340

Snapper 1401105MA

BELT GUIDE, Long

$5.49

$

In Stock, Qty 5

0

0360

Snapper 1758762YP

BELT, Deck

$59.99

$

In Stock, only 3 left!

0

0370

Snapper 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 20+

0

0500

Snapper 885556AYP

BRACKET, Idler, Fixed

$24.99

$

Usually ships in 2-12 days

0

0600

Snapper 704128

WASHER, Flat, 3/8

$4.99

$

In Stock, Qty 11

0

0650

Snapper 1677135SM

GUARD, Spring
(Superseded to 1677135ASM)

$12.99

$

In Stock, Qty 8

0

0750

Snapper 885675YP

SHIM

$3.49

$

Usually ships in 2-12 days

0
