RP 2187520 (7800969-00) - Snapper 21" Walk-Behind Mower, 8.75hp Engine Group Parts Diagram

21" Walk-Behind Mower, 8.75hp

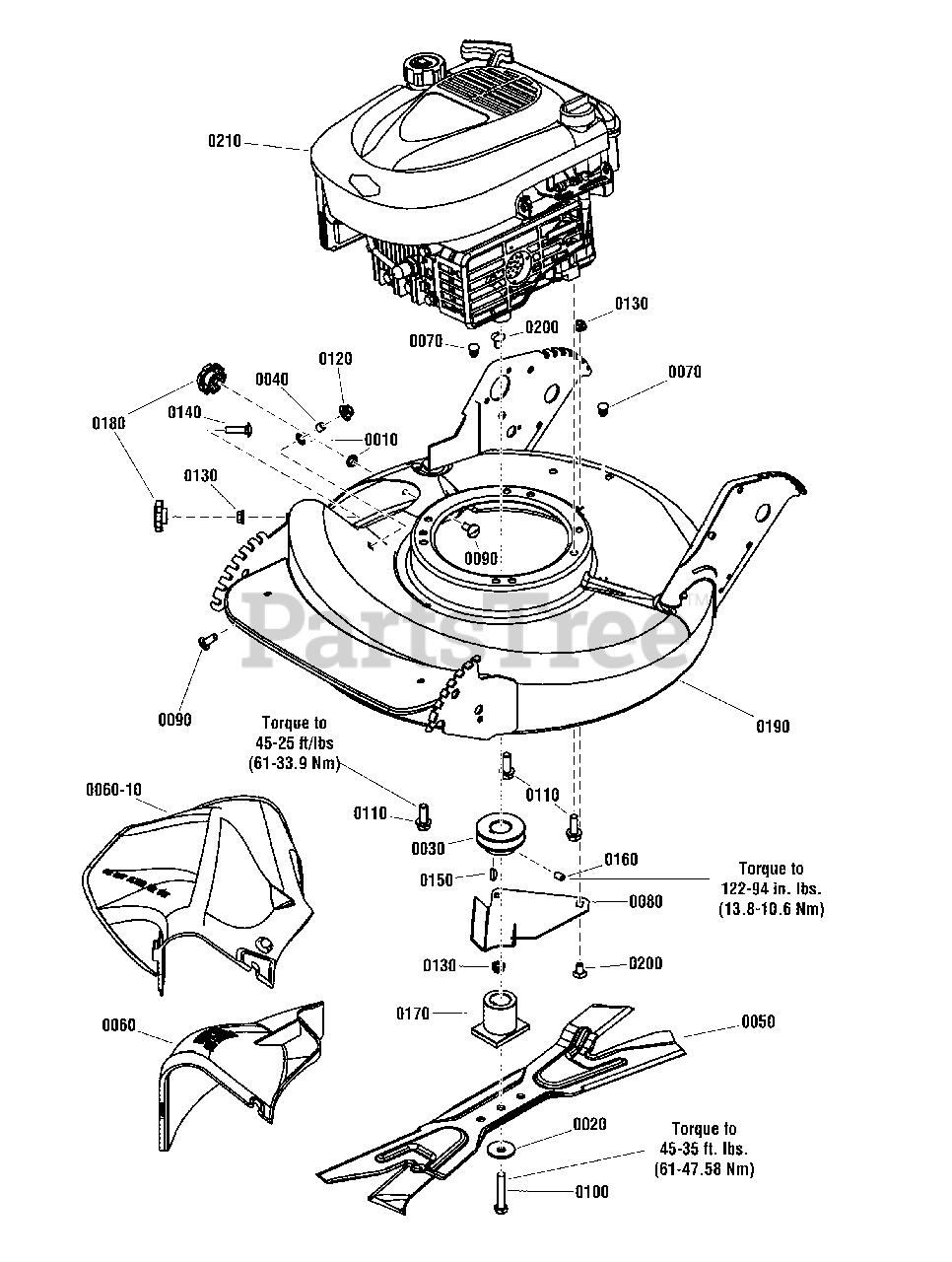

Engine Group Parts Diagram

  • Title

0010

Snapper 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0020

Snapper 703963

WASHER, 13/32x1-13/32" Dia. Cone

$6.99

$

In Stock, only 2 left!

0

0030

Snapper 7105122YP

PULLEY, Engine (25mm I. D. x 2-1/8 O.D.)

$40.99

$

In Stock, only 1 left!

0

0040

Snapper 7024340SM

SPACER, .375 OD X .316 ID X .305 L

$4.99

$

In Stock, only 4 left!

0

0050

Snapper 7026407AYP

BLADE, 21" Ninja

$

$

Not available

0060

Snapper 7029149YP

COVER, Mulching, 21" Deck

$33.99

$

In Stock, Qty 20+

0

0060-10

Snapper 7042965YP

CHUTE, 21" Side Discharge

$53.99

$

Usually ships in 2-12 days

0

0070

Snapper 7046780SM

PLUG, Hole, .44" OD

$4.99

$

Usually ships in 2-12 days

0

0080

Snapper 7074568YP

COVER, Belt, Zinc/Clear

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0100

Snapper 703999

SCREW, 3/8-24 x 2 Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

$4.49

$

In Stock, Qty 13

0

0130

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0140

Snapper 704002

BOLT, 5/16-18 X 1.125, Carriage, ZC/CL

$4.49

$

Usually ships in 2-12 days

0

0150

Snapper 7091214YP

KEY, Hi-Pro, HP-506

$4.99

$

In Stock, only 1 left!

0

0160

Snapper 704003

SCREW, 5/16-18 X .50, Hex Socket Head, Phosp/Oil

$4.49

$

Usually ships in 2-12 days

0

0170

Snapper 7101414YP

HUB, Blade, 21 WBM, 25MM ID, 2 Position

$16.99

$

In Stock, only 1 left!

0

0180

Snapper 7101022YP

KNOB, (5/16-18 X 1/2 Thread) Fluted

$7.49

$

In Stock, only 4 left!

0

0190

Snapper 7600034DYP

KIT, Deck, 21" AIR, Non-Adj., W/Decals

$359.99

$

Usually ships in 2-12 days

0

0200

Snapper 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 121S02-0017-F1

* ENGINE, B&S 8.75 GT, PRO Series, Mod. 121S02-0017-F1

$

$

Currently unavailable
