RP 216020KWV (7800556) - Snapper 21" Walk-Behind Mower, 6hp Engine, Cutting Deck & Blade Parts Diagram

21" Walk-Behind Mower, 6hp

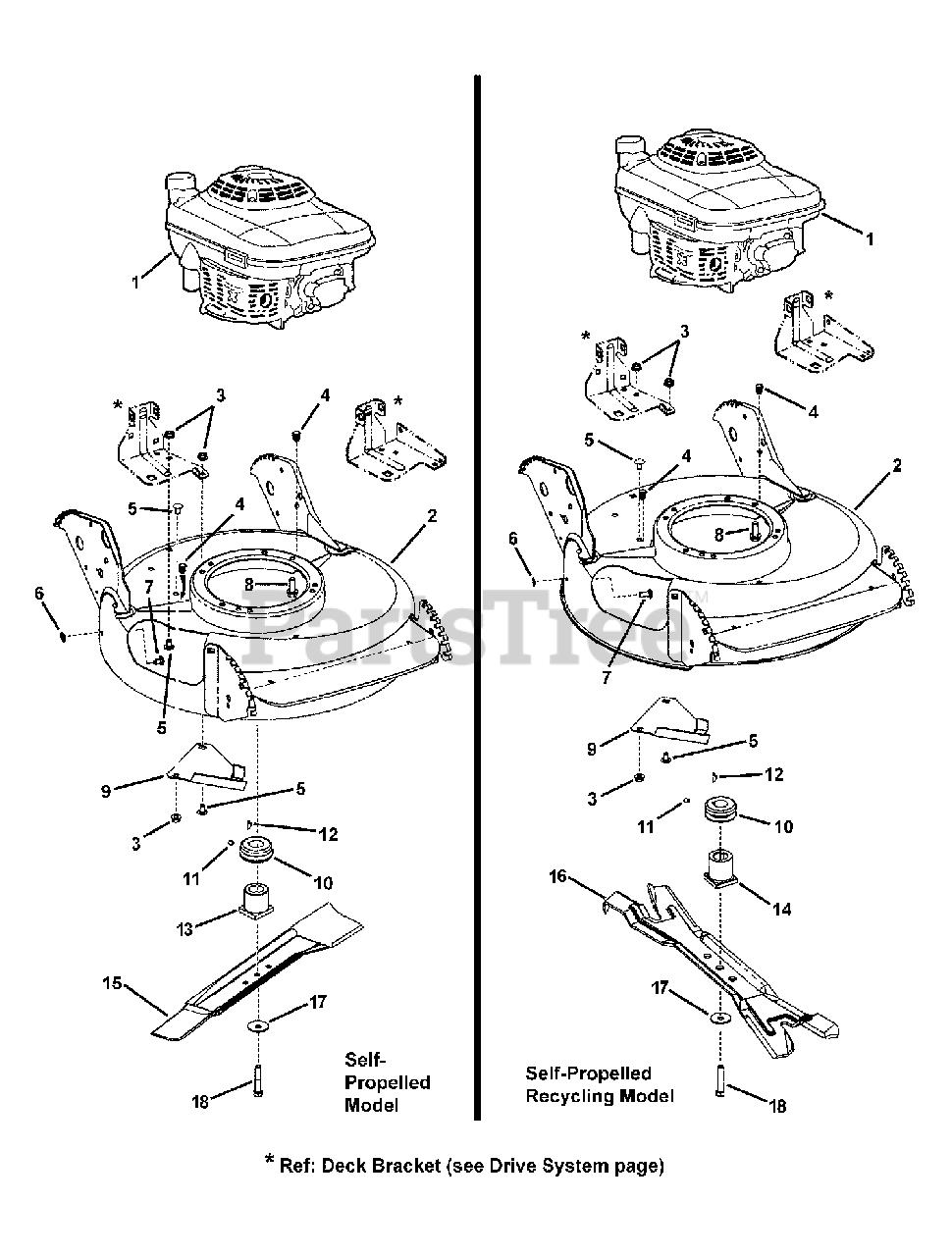

Engine, Cutting Deck & Blade Parts Diagram

  • Title

1

Snapper FJ180V-BS23-R

* ENGINE, Kawasaki 6 HP w/side recoil

Note: (Used on P26020KWV model)

$

$

Currently unavailable

1

Snapper FJ180V-DS13-R

* ENGINE, Kawasaki 6 HP

Note: (Used on RP216020KWV model)

$

$

Currently unavailable

2

Snapper 7600034D

WELDMENT, Deck, 21" Non-Adjust Air
(Superseded to 7600034DYP)

Note: (Used on "R" (recycling) models, was 7400026 or 7500081)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7500549

WELDMENT, Deck, 21", S.P., HV, Core Model
(Superseded to 7500549DYP)

Note: (Used on P26020KWV model, was 7400027)

$

$

Not available

3

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (Was 7091070)

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7046780

PLUG, Hole, Polyethylene
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7090731

BOLT, 5/16-18 x 1/2", Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, Qty 7

0

6

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR 5
(Superseded to 703185)

Note: (Was 7090001)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping
(Superseded to 704000)

Note: (engine mount bolts)

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7074568

COVER, Belt
(Superseded to 7074568YP)

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 7015780

PULLEY, Engine (25mm I. D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

11

Snapper 7090201

SET SCREW, 5/16-18 x 5/16" Hex Socket
(Superseded to 7090201SM)

$

$

Not available

12

Snapper 7091214

KEY, Woodruff #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

13

Snapper 7015626

HUB, Blade Drive, 25 mm I.D.
(Superseded to 7015626YP)

Note: (Used on P26020KWV model)

$15.99

$

Usually ships in 2-12 days

0

14

Snapper 7101414

HUB, Blade, 21" WBM, RD, 2 Position
(Superseded to 7101414YP)

Note: (Used on RP216020KWV model)

$16.99

$

In Stock, only 1 left!

0

15

Snapper 7026691

BLADE, 21" Standard Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

16

Snapper 7026407

BLADE, 21" Ninja (Quad Edge)
(Superseded to 7026407AYP)

Note: (Used on Recycling Models)

$54.99

$

Usually ships in 2-12 days

0

17

Snapper 7012063

WASHER, Cone 3/8"
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

18

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0
