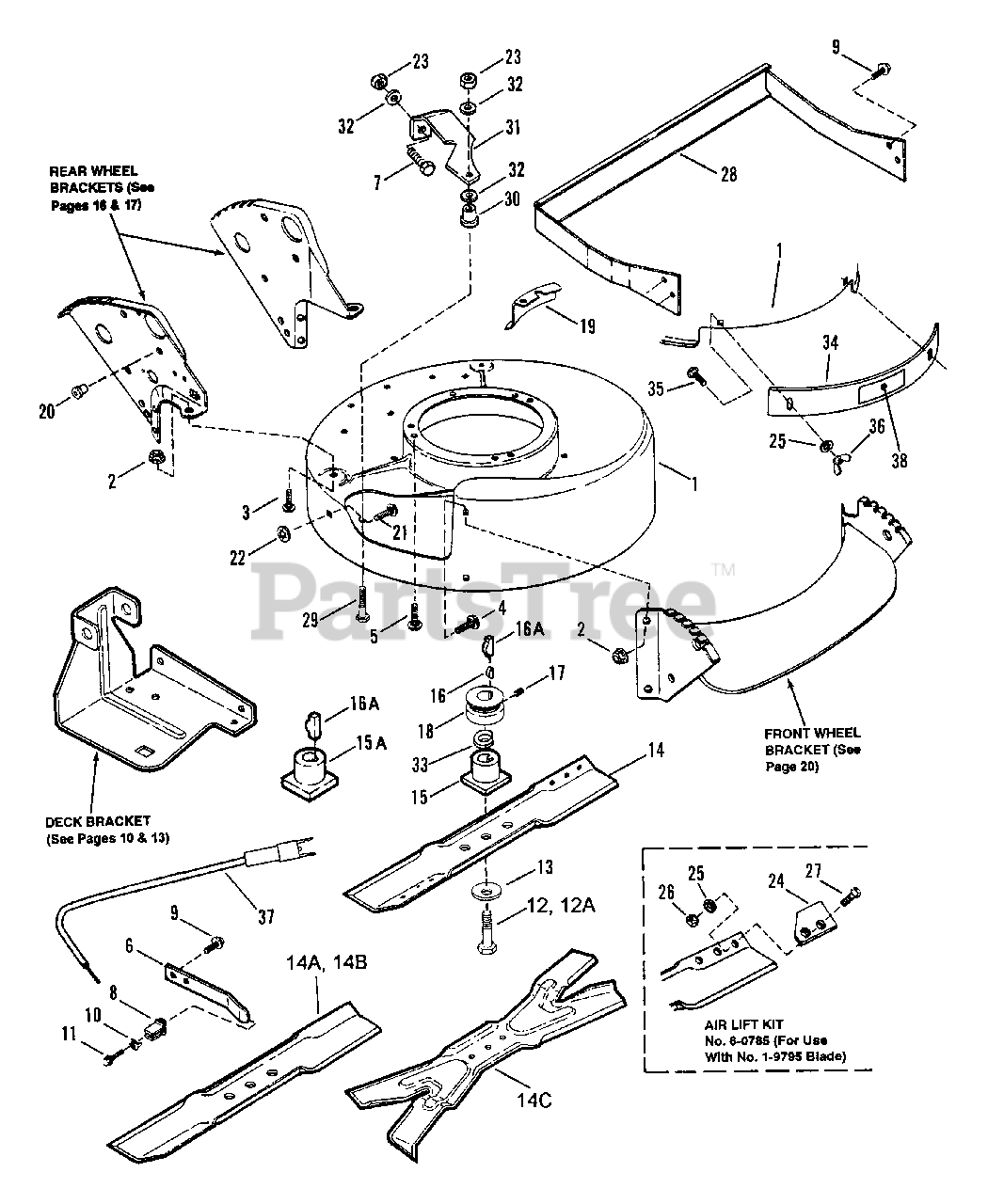

RP 21600 - Snapper 21" Walk-Behind Mower, 6hp Cutting Deck, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 6hp

Cutting Deck, Blade, Interlock Parts Diagram

  • Title

1

Snapper 7057663

DECK, Mower
(Superseded to 7500549DYP)

Note: (Includes painted Deck with Decals)

$

$

Not available

Snapper 7053271

DECK, Mower
(Superseded to 7053271YP)

Note: (Includes painted Deck with Decals) (ODP21400 Model)

$199.99

$

In Stock, only 1 left!

0

Snapper 7058540

DECK, Mower
(Superseded to 7600034DYP)

Note: Was 53952 (Includes painted Deck with Decals) (FRP21600TV Model)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage (Gr. 5)
(Superseded to 703798)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7091169

BOLT, Bolt 5/16-18 x 1-1/8" Short Neck Carriage, Grade 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping (Engine Mounting)
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7032417

SPRING, Wheel Bracket Type Interlock
(Superseded to 7032417YP)

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7026175

INSULATOR, Interlock
(Superseded to 7026175YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Self-tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

10

Snapper 7090385

WASHER, #8 Tab Internal Tooth Lock

$

$

Not available

11

Snapper 7090379

SCREW, #8-18 x 3/4" Hex Head Machine
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

12A

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

14

Snapper 7019795

BLADE, Cutter
(Superseded to 7019795BZYP)

Note: 3 holes in air lift

$28.99

$

In Stock, Qty 20+

0

14A

Snapper 7019795

BLADE, Cutter
(Superseded to 7019795BZYP)

Note: Was 19702 (ODP21400 Model)

$28.99

$

In Stock, Qty 20+

0

14B

Snapper 7026691

BLADE, Cutter
(Superseded to 7026691BZYP)

Note: (Standard Lift)

$23.99

$

In Stock, Qty 20+

0

14C

Snapper 7026407

BLADE, Cutter (Ninja - Quad Edge)
(Superseded to 7026407AYP)

Note: 7017168 Recycling 21" Recycling Blade is also available

$

$

Not available

15

Snapper 7015626

HUB, Blade Drive 25mm
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

15A

Snapper 7012927

HUB, Blade Drive 7/8"
(Superseded to 7012927YP)

$13.99

$

In Stock, only 2 left!

0

16

Snapper 7015894

KEY, Woodruff #506
(Superseded to 7015894SM)

Note: (Briggs)

$3.49

$

In Stock, Qty 7

0

16A

Snapper 7010783

KEY, Woodruff #505
(Superseded to 7010783YP)

Note: (Hi-Pro)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

18

Snapper 7015780

PULLEY, Engine (25mm I.D. x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

18

Snapper 7024596

PULLEY, Engine (7/8" I.D. x 2-1/4" O.D.)
(Superseded to 7024596YP)

Note: (ODP21400 Model)

$70.99

$

Usually ships in 2-12 days

0

19

Snapper 7031968

SHIELD, Belt Opening Cover

Note: (Push Models Only)

$

$

Not available

20

Snapper 7012135

BUSHING, Interlock Wire

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

22

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

--

Snapper 7060785

KIT, Air Lift.
(Superseded to 7060785YP)

Note: (Includes items 24 thru 27)

$

$

Not available

24

Snapper 7032558

LIFT, Air
(Superseded to 7032558YP)

$

$

Not available

25

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7041400

STRUCTURE, Fender
(Superseded to 7041400YP)

Note: (European Models)

$71.99

$

Usually ships in 2-12 days

0

29

Snapper 7090702

BOLT, 5/16-18 x 2-1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7013320

BUSHING
(Superseded to 7013320YP)

$13.99

$

Usually ships in 2-12 days

0

31

Snapper 7033863

COVER, Belt
(Superseded to 7033863YP)

Note: (European Models)

$20.99

$

Usually ships in 2-12 days

0

32

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Snapper 7029000

SPACER, Blade Hub
(Superseded to 7029000YP)

Note: (FRP21600TV Model)

$15.99

$

Usually ships in 2-12 days

0

34

Snapper 7043851

BAFFLE, Front

Note: Was 34870 (FRP21600TV Model)

$

$

Not available

35

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carriage, Gr. 5
(Superseded to 703447)

Note: Was 91026 (FRP21600TV Model)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7091601

NUT, 5/16-18 Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070 (FRP21600TV Model)

$5.49

$

In Stock, Qty 20+

0

37

Snapper 7026879

WIRE, Ground
(Superseded to 7026879YP)

Note: (Briggs)

$2.99

$

In Stock, only 1 left!

0

38

Snapper 7029193

DECAL, Front Baffle
(Superseded to 7029193YP)

$7.99

$

Usually ships in 2-12 days

0
