RP 215517HC (84905) - Snapper 21" Walk-Behind Mower, 5.5hp GRASS BAG ACCESSORY Parts Diagram

21" Walk-Behind Mower, 5.5hp

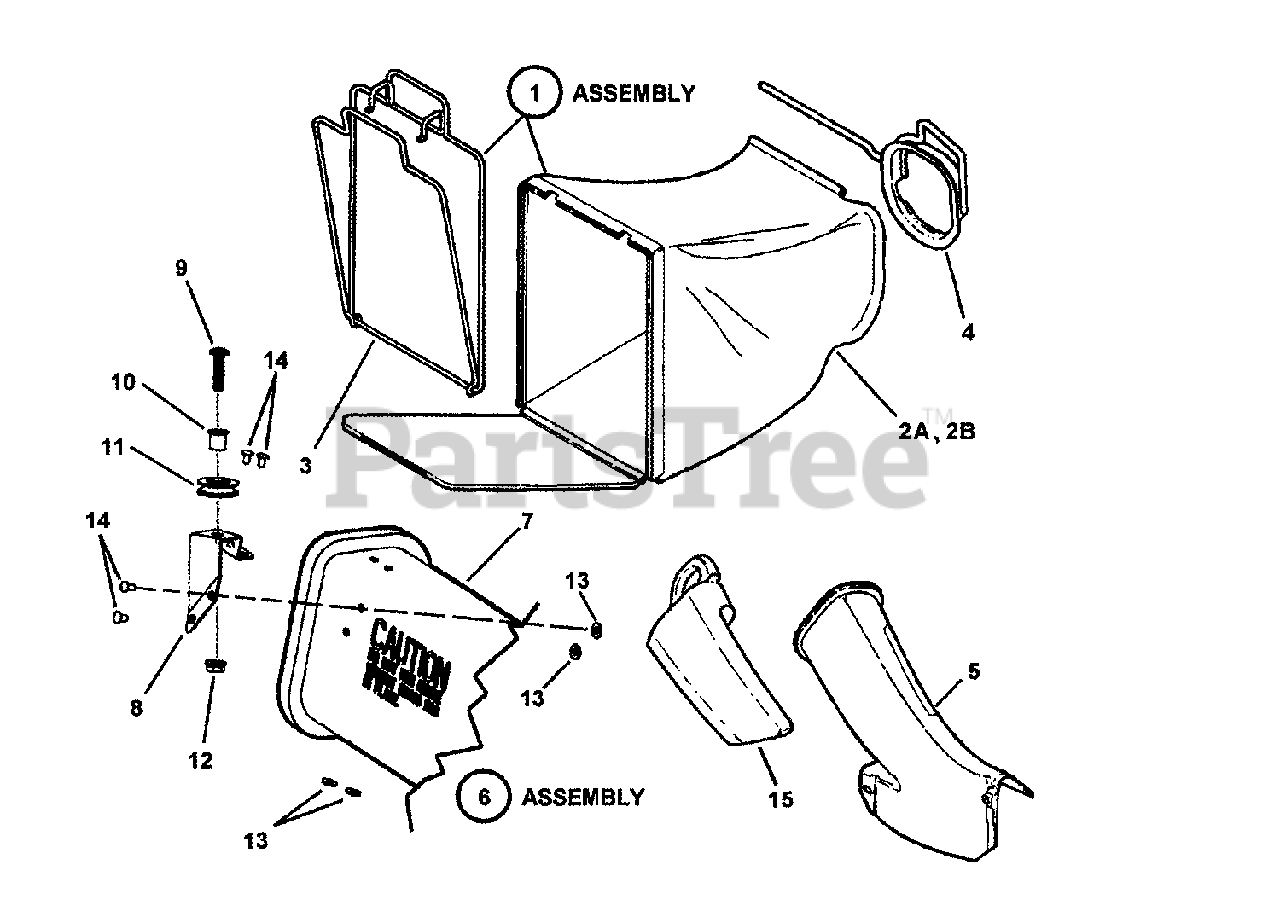

GRASS BAG ACCESSORY Parts Diagram

  • Title

--

Snapper 7061919

KIT, Grass Bag Catcher
(Superseded to 7060935YP)

Note: Was 61824 (Includes 2 thru 5)

$

$

Not available

1

Snapper 7059322

ASSEMBLY, Grass Bag (Includes 2 thru 4)
(Superseded to 7058571YP)

Note: Was 54058

$

$

Not available

2A

Snapper 7074425

BAG, Door Type (Black w/Gold Letters) (12" Wide)
(Superseded to 7075765YP)

$137.99

$

Usually ships in 2-12 days

0

2B

Snapper 7075765

BAG, Door Type (Black w/Gray Letters) (12" Wide)
(Superseded to 7075765YP)

Note: NOTE: Bag assembly 58571 is composed of items 2B, 3 & 4.

$137.99

$

Usually ships in 2-12 days

0

3

Snapper 7051906

ASSEMBLY, Bag Wire (12" Wide)
(Superseded to 7051906YP)

$110.99

$

In Stock, only 2 left!

0

4

Snapper 7042489

CONNECTOR, Grass Bag (weldment)
(Superseded to 7042489AYP)

$44.99

$

Usually ships in 2-12 days

0

5

Snapper 7016050

ADAPTER, Bag
(Superseded to 7016050YP)

Note: for Euro Bag Adapter ass'y see SIDE CHUTE ADAPTER page.

$90.99

$

Usually ships in 2-12 days

0

6

Snapper 7058037

ASSEMBLY, Grass Bag Adapter
(Superseded to 7600117YP)

Note: (Includes items 7 thru 14)

$142.99

$

Usually ships in 2-12 days

0

7

Snapper 7047081

ADAPTER, Bag
(Superseded to 7600117YP)

$142.99

$

Usually ships in 2-12 days

0

8

Snapper 7047082

BRACKET, Rope Pulley
(Superseded to 7047082AYP)

$9.49

$

Usually ships in 2-12 days

0

9

Snapper 7091984

SCREW, 5/16-18 x 1-1/4" Pan Head Machine
(Superseded to 7091984YP)

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

11

Snapper 7024228

PULLEY, Plastic
(Superseded to 7024228SM)

$4.99

$

In Stock, only 4 left!

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7072107

WASHER, 15/32" Flat
(Superseded to 7072107YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 2 left!

0

15

Snapper 7016814

PLUG, Chute Adapter
(Superseded to 7016814YP)

$49.99

$

In Stock, only 3 left!

0
