RP 20500 (80724) - Snapper 20" Walk-Behind Mower, 5hp Handles & Controls (Self-Propelled Models) Parts Diagram

20" Walk-Behind Mower, 5hp

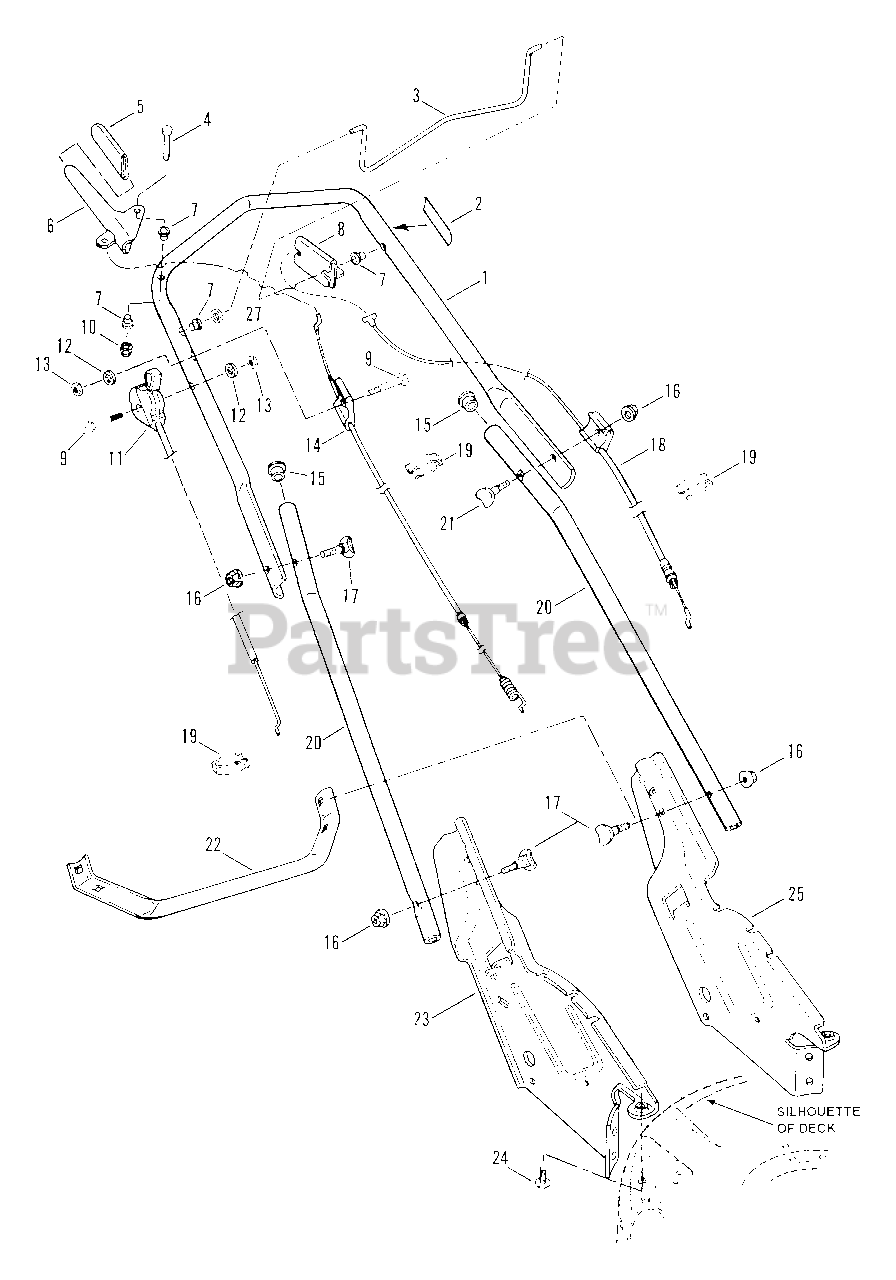

Handles & Controls (Self-Propelled Models) Parts Diagram

  • Title

1

Snapper 7074384

HANDLE, Upper
(Superseded to 7074384YP)

Note: Was 34688

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7024211

DECAL, Blade Control
(Superseded to 7024211YP)

$14.99

$

In Stock, Qty 5

0

3

Snapper 7017072

CONTROL, Blade
(Superseded to 7047011YP)

$

$

Not available

4

Snapper 7023792

PIN, .250 Dia. x 1 1/2"
(Superseded to 704031)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7014307

GRIP, Wheel Drive
(Superseded to 7014307YP)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7041728

HANDLE, Wheel Drive

$

$

Not available

7

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

$5.99

$

In Stock, Qty 5

0

9

Snapper 7090112

SCREW, 1/4-28 x 2" Hex Head Cap, Grade 5
(Superseded to 7090112YP)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper 7091020

NUT, 1/4 Push
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7029699

CONTROL, Throttle
(Superseded to 7029699YP)

$24.99

$

Usually ships in 2-12 days

0

12

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

13

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7029631

CABLE, Wheel Drive
(Superseded to 7029631YP)

$

$

Not available

15

Snapper 7016544

PLUG
(Superseded to 703931)

$3.99

$

In Stock, Qty 10

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7091190

SCREW, 5/16-18 x 1 1/2" Short Neck Curved Head
(Superseded to 704063)

$5.49

$

In Stock, Qty 5

0

18

Snapper 7029697

CABLE, Blade Control
(Superseded to 7029697YP)

$20.99

$

In Stock, only 1 left!

0

19

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7029621

HANDLE, Middle
(Superseded to 7029621YP)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 7091533

SCREW, 5/16-18 x 1 3/4" Short Neck Curved Head
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

22

Snapper 7034620

BRACE, Handle/Bracket
(Superseded to 7034620YP)

$17.99

$

Usually ships in 2-12 days

0

23

Snapper 7034330

BRACKET, Handle/Wheel (Right Hand)

$

$

Currently unavailable

24

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head, Torx
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 7034361

BRACKET, Handle/Wheel (Left Hand)
(Superseded to 7034361YP)

$98.99

$

Usually ships in 2-12 days

0

26

Snapper 7090951

NUT, 5/16-18 Large Flange Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

27

Snapper 7091673

WASHER, Flat, .125 x .252 I.D. x .625 O.D.

$

$

Currently unavailable
