Royal 53 - Husqvarna Walk-Behind Mower HANDLE & CONTROLS 6 Parts Diagram

Walk-Behind Mower

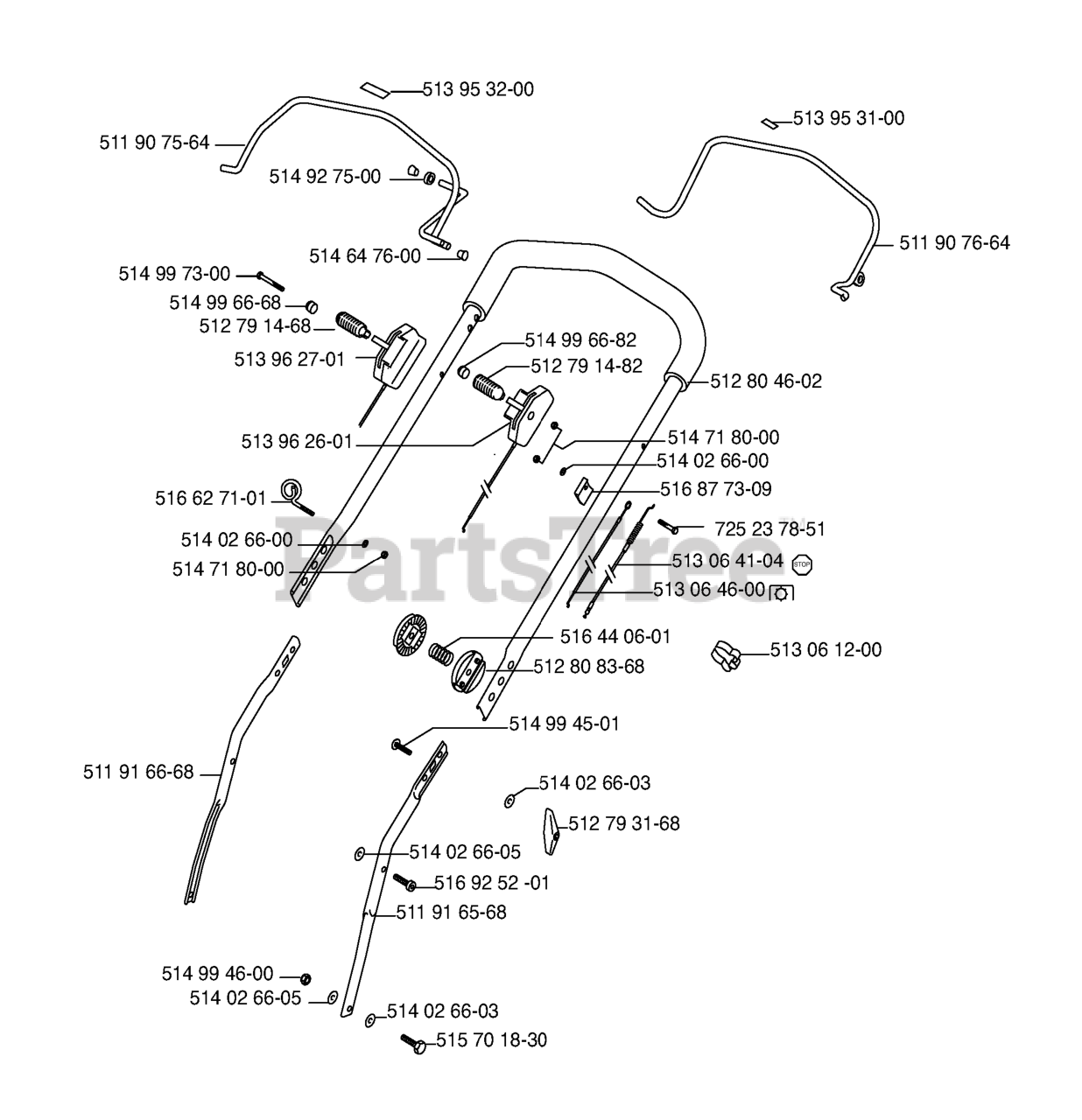

HANDLE & CONTROLS 6 Parts Diagram

  • Title
512 79 14-68

$

$

Not available

513 06 41-04

Husqvarna 513064104

CABLE, ENGINE BRAKE

$

$

Not available

514 02 66-00

$5.99

$

Usually ships in 3-10 days

0

514 71 80-00

Husqvarna 514718000

NUT M6 NYLOC GME/D

$

$

Not available

515 70 18-30

Husqvarna 515701830

SCREW
(Superseded to 725245751)

$5.99

$

In Stock, only 1 left!

0

725 23 78-51

$6.49

$

In Stock, only 2 left!

0

516 44 06-01

$

$

Not available

514 02 66-05

$

$

Not available

516 92 52-01

Husqvarna 516925201

SCREW
(Superseded to 516924101)

$

$

Not available

511 90 75-64

Husqvarna 511907564

BAIL ARM:BRAKE

$

$

Not available

511 91 66-68

Husqvarna 511916668

LOWER HANDLE RH

$

$

Not available

513 96 27-01

Husqvarna 513962701

CABLE VARIATOR
(Superseded to 513962700)

$

$

Not available

513 96 26-01

Husqvarna 513962601

CABLE THROTTLE

$

$

Not available

513 95 32-00

$

$

Not available

514 99 66-68

Husqvarna 514996668

REGULATOR KNOB CAP

$

$

Not available

516 62 71-01

Husqvarna 516627101

CABLE GUIDE
(Superseded to 513076300)

$

$

Not available

514 02 66-03

$

$

Not available

514 99 45-01

$

$

Not available

512 80 83-68

Husqvarna 512808368

TILT ADJUSTER

$

$

Not available

512 80 46-02

Husqvarna 512804602

COMFORT HANDLE W/ GRIP

$

$

Not available

514 99 66-82

Husqvarna 514996682

REGULATOR KNOB (RED)

$

$

Not available

512 79 14-82

$

$

Not available

514 64 76-00

$

$

Not available

511 90 76-64

Husqvarna 511907664

BAIL ARM:DRIVE
(Superseded to 511907668)

$

$

Not available

513 95 31-00

$

$

Not available

513 06 12-00

Husqvarna 513061200

CABLE CLIP STANDARD

$

$

Not available

514 99 73-00

Husqvarna 514997300

HEAD BOLT HEX M6

$

$

Not available

514 99 46-00

$

$

Not available

514 92 75-00

Husqvarna 514927500

NEEDS DESCRIPTION

$

$

Not available

516 87 73-09

$

$

Not available

513 06 46-00

Husqvarna 513064600

CABLE, DRIVE 53CM

$

$

Not available

512 79 31-68

Husqvarna 512793168

WINGNUT
(Superseded to 512793167)

$4.99

$

Usually ships in 3-10 days

0

511 91 65-68

Husqvarna 511916568

LOWER HANDLE

$

$

Not available
