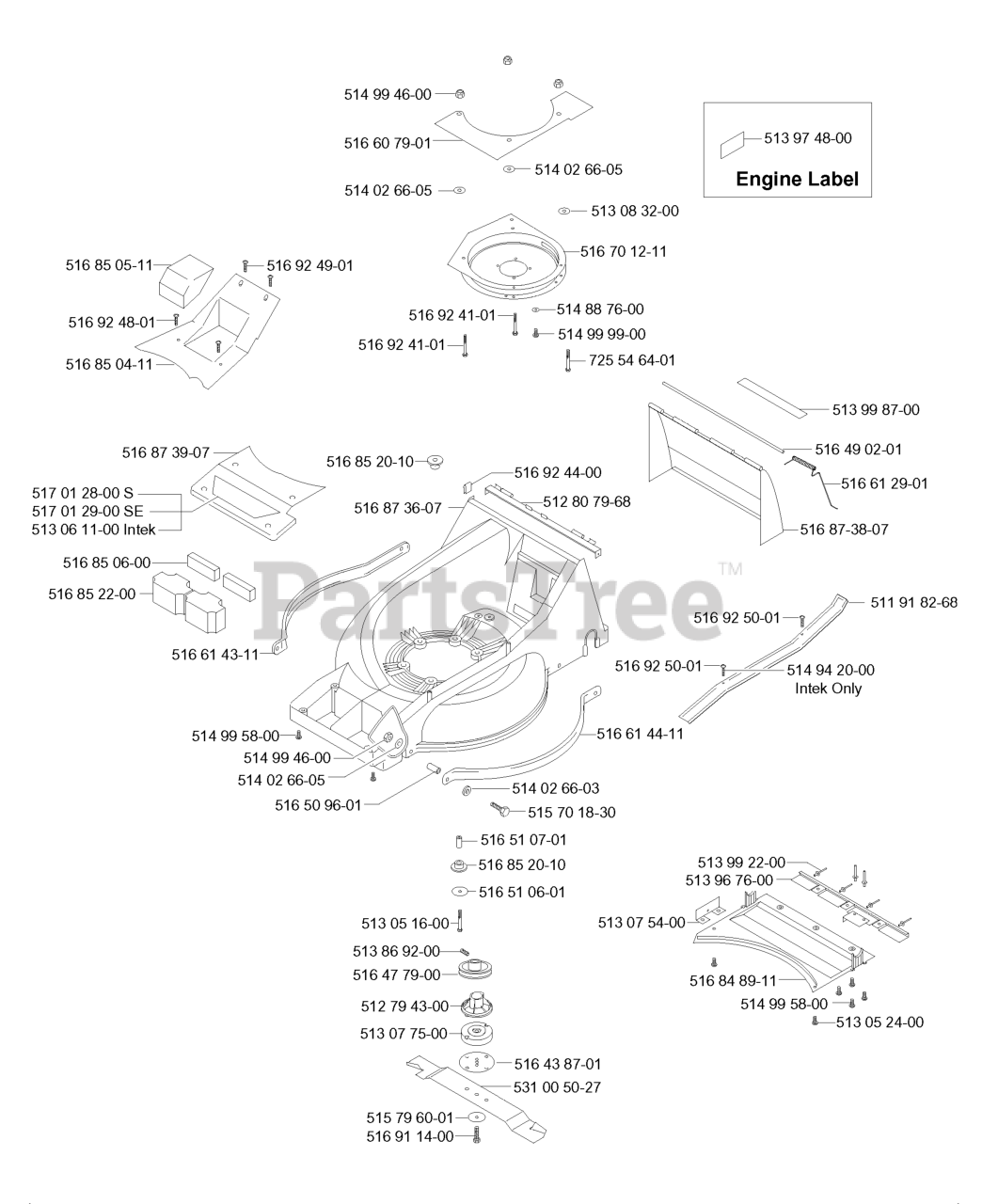

Royal 53 - Husqvarna Walk-Behind Mower FRAME 5 Parts Diagram

Walk-Behind Mower

FRAME 5 Parts Diagram

  • Title

514 02 66-03

Husqvarna 514026603

WASHER

$

$

Not available

516 85 05-11

Husqvarna 516850511

Cover

$

$

Not available

516 85 06-00

Husqvarna 516850600

FOAM 500EL

$

$

Not available

513 05 24-00

Husqvarna 513052400

SCREW M6.5X16 SELF TAP

$

$

Not available

513 99 22-00

Husqvarna 513992200

RIVET

$

$

Not available

516 85 20-10

Husqvarna 516852010

BUSHING

$1.49

$

In Stock, only 2 left!

0

513 86 92-00

Husqvarna 513869200

Screw

$

$

Not available

513 07 75-00

Husqvarna 513077500

SPACER

$

$

Not available

516 92 41-01

Husqvarna 516924101

SCREW

$

$

Not available

513 05 16-00

Husqvarna 513051600

SCREW M6X45

$

$

Not available

512 79 43-00

Husqvarna 512794300

DRIVE BUSH DIA 25MM

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

516 87 36-07

Husqvarna 516873607

DECK

$

$

Not available

516 85 04-11

Husqvarna 516850411

COVER

$

$

Not available

516 92 48-01

Husqvarna 516924801

SCREW

$

$

Not available

515 79 60-01

Husqvarna 515796001

WASHER

$5.99

$

Usually ships in 3-10 days

0

516 91 14-00

Husqvarna 516911400

BOLT

$

$

Not available

512 80 79-68

Husqvarna 512807968

BRACKET TOP

$

$

Not available

516 49 02-01

Husqvarna 516490201

Shaft

$

$

Not available

513 99 87-00

Husqvarna 513998700

NEEDS DESCRIPTION

$

$

Not available

514 99 58-00

Husqvarna 514995800

SCREW

$

$

Not available

516 61 44-11

Husqvarna 516614411

DECK PROTECTOR LH

$

$

Not available

516 51 07-01

Husqvarna 516510701

Sleeve

$

$

Not available

515 70 18-30

Husqvarna 515701830

SCREW
(Superseded to 725245751)

$5.99

$

In Stock, only 1 left!

0

511 91 82-68

Husqvarna 511918268

LINK ARM COVER

$

$

Not available

516 70 12-11

Husqvarna 516701211

ADAPTER
(Superseded to 512807867)

$

$

Not available

516 43 87-01

Husqvarna 516438701

STEEL PLATE ADAPTER

$22.99

$

In Stock, only 4 left!

0

514 02 66-05

Husqvarna 514026605

WASHER

$

$

Not available

516 61 29-01

Husqvarna 516612901

SPRING

$

$

Not available

514 99 99-00

Husqvarna 514999900

SCREW

$

$

Not available

516 84 89-11

Husqvarna 516848911

Cover

$

$

Not available

513 97 48-00

Husqvarna 513974800

DECAL

Note: ENGINE LABEL

$

$

Not available

513 96 76-00

Husqvarna 513967600

BRACKET ASSY

$

$

Not available

514 88 76-00

Husqvarna 514887600

WASHER

$

$

Not available

516 92 49-01

Husqvarna 516924901

SCREW

$

$

Not available

516 60 79-01

Husqvarna 516607901

Protector

$

$

Not available

516 92 50-01

Husqvarna 516925001

SCREW
(Superseded to 516924701)

$

$

Not available

517 01 28-00

Husqvarna 517012800

NEEDS DESCRIPTION

Note: S

$

$

Currently unavailable

513 07 54-00

Husqvarna 513075400

BOTTOM PLATE BRACKET

$

$

Not available

513 08 32-00

Husqvarna 513083200

WASHER M8 22.6X3

$

$

Not available

516 50 96-01

Husqvarna 516509601

SLEEVE

$

$

Not available

513 06 11-00

Husqvarna 513061100

DECAL, FRONT 53 INTEK

Note: INTEK

$

$

Not available

516 92 44-00

Husqvarna 516924400

Washer

$

$

Not available

531 00 50-27

Husqvarna 531005027

BLADE
(Superseded to 516494310)

$31.99

$

In Stock, only 2 left!

0

516 85 22-00

Husqvarna 516852200

COUNTERWEIGHT

$

$

Not available

516 87 39-07

Husqvarna 516873907

DECK FRONT COVER

$

$

Not available

514 94 20-00

Husqvarna 514942000

SCREW

Note: INTEK ONLY

$

$

Not available

516 87 38-07

Husqvarna 516873807

COVER

$

$

Not available

516 61 43-11

Husqvarna 516614311

DECK PROTECTOR RH

$

$

Not available

516 47 79-00

Husqvarna 516477900

PULLEY

$

$

Not available

516 51 06-01

Husqvarna 516510601

WASHER

$

$

Not available

725 54 64-01

Husqvarna 725546401

Screw

$4.49

$

Usually ships in 3-10 days

0

517 01 29-00

Husqvarna 517012900

NEEDS DESCRIPTION

Note: SE

$

$

Currently unavailable
