Royal 53 - Husqvarna Walk-Behind Mower (2003-01) Wheels / Drive System Parts Diagram

Walk-Behind Mower

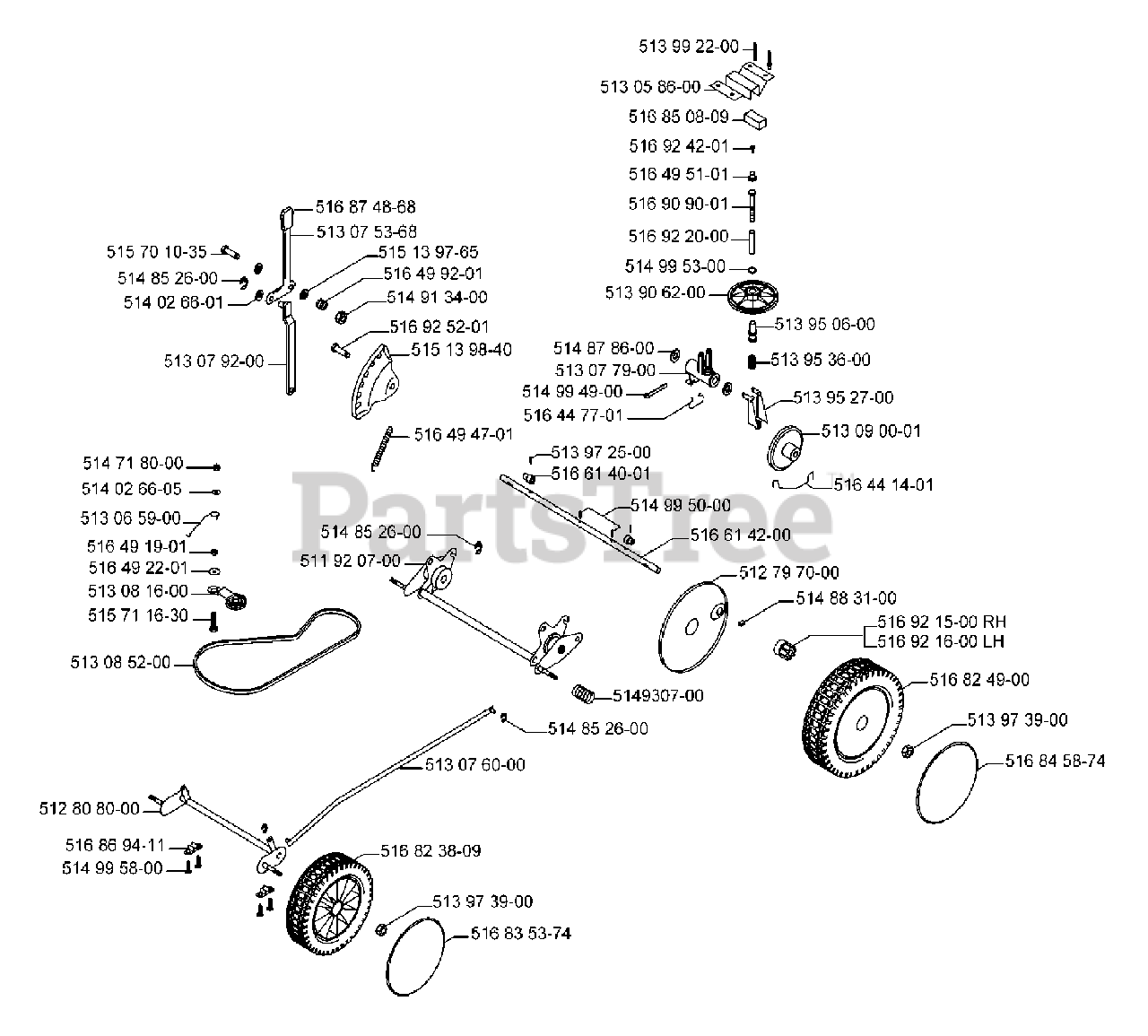

Wheels / Drive System Parts Diagram

  • Title
513992200

$

$

Not available

513058600

Husqvarna 513058600

SUPPORT PLATE

$

$

Not available

516924201

Husqvarna 516924201

Screw
(Superseded to 516925201)

$

$

Not available

516495101

$

$

Not available

516909001

$

$

Not available

516922000

$

$

Not available

516850809

Husqvarna 516850809

Slide Bearing

$

$

Not available

514995300

$

$

Not available

513906200

$

$

Not available

514878600

$

$

Not available

513950600

$

$

Not available

513953600

$

$

Not available

513952700

$

$

Not available

513090001

Husqvarna 513090001

Disc
(Superseded to 513090005)

$

$

Not available

516441401

Husqvarna 516441401

Holder Spacer

$

$

Not available

513077900

$

$

Not available

514994900

$

$

Not available

516447701

Husqvarna 516447701

Clips
(Superseded to 513951200)

$

$

Not available

513972500

$

$

Not available

516614001

$

$

Not available

514995000

$

$

Not available

515139765

$

$

Not available

516499201

$

$

Not available

514913400

$

$

Not available

516925201

Husqvarna 516925201

Screw
(Superseded to 516924101)

$

$

Not available

516494701

$

$

Not available

515139840

Husqvarna 515139840

Indexplate
(Superseded to 516805800)

$

$

Not available

513075368

Husqvarna 513075368

HEIGHT ADJUST LEVER

$

$

Not available

515701035

Husqvarna 515701035

BOLT HEX HEAD

$

$

Not available

514852600

Husqvarna 514852600

Retaining Ring

$

$

Not available

514026601

$

$

Not available

513079200

$

$

Not available

514718000

$

$

Not available

514026605

$

$

Not available

513065900

Husqvarna 513065900

SPRING, BELT TENSIONER

$

$

Not available

516492201

$

$

Not available

513081600

Husqvarna 513081600

BELT TENSIONER

$

$

Not available

515711630

$

$

Not available

513085200

Husqvarna 513085200

V BELT 43IN

$

$

Not available

516491901

$

$

Not available

514852600

Husqvarna 514852600

Retaining Ring

$

$

Not available

511920700

Husqvarna 511920700

REAR AXLE ASSY

$

$

Not available

513076000

Husqvarna 513076000

HEIGHT ADJUST LINK

$

$

Not available

514930700

$

$

Not available

514852600

Husqvarna 514852600

Retaining Ring

$

$

Not available

516614200

$

$

Not available

512797000

Husqvarna 512797000

BACKPLATE 9"

$

$

Not available

514883100

$7.99

$

In Stock, only 4 left!

0

516921500

Husqvarna 516921500

Pinion, Right

$

$

Not available

516921600

Husqvarna 516921600

Pinion, Left

$

$

Not available

516824900

$

$

Not available

513973900

Husqvarna 513973900

10MM LOCKNUT

$

$

Not available

516845874

Husqvarna 516845874

HUB CAP 9"

$

$

Not available

512808000

Husqvarna 512808000

FRONT AXLE ASSY

$

$

Not available

516869411

$

$

Not available

514995800

$

$

Not available

516823809

$

$

Not available

513973900

Husqvarna 513973900

10MM LOCKNUT

$

$

Not available

516835374

Husqvarna 516835374

HUB CAP 8"

$

$

Not available

516874868

Husqvarna 516874868

HEIGHT ADJUST KNOB

$

$

Not available
