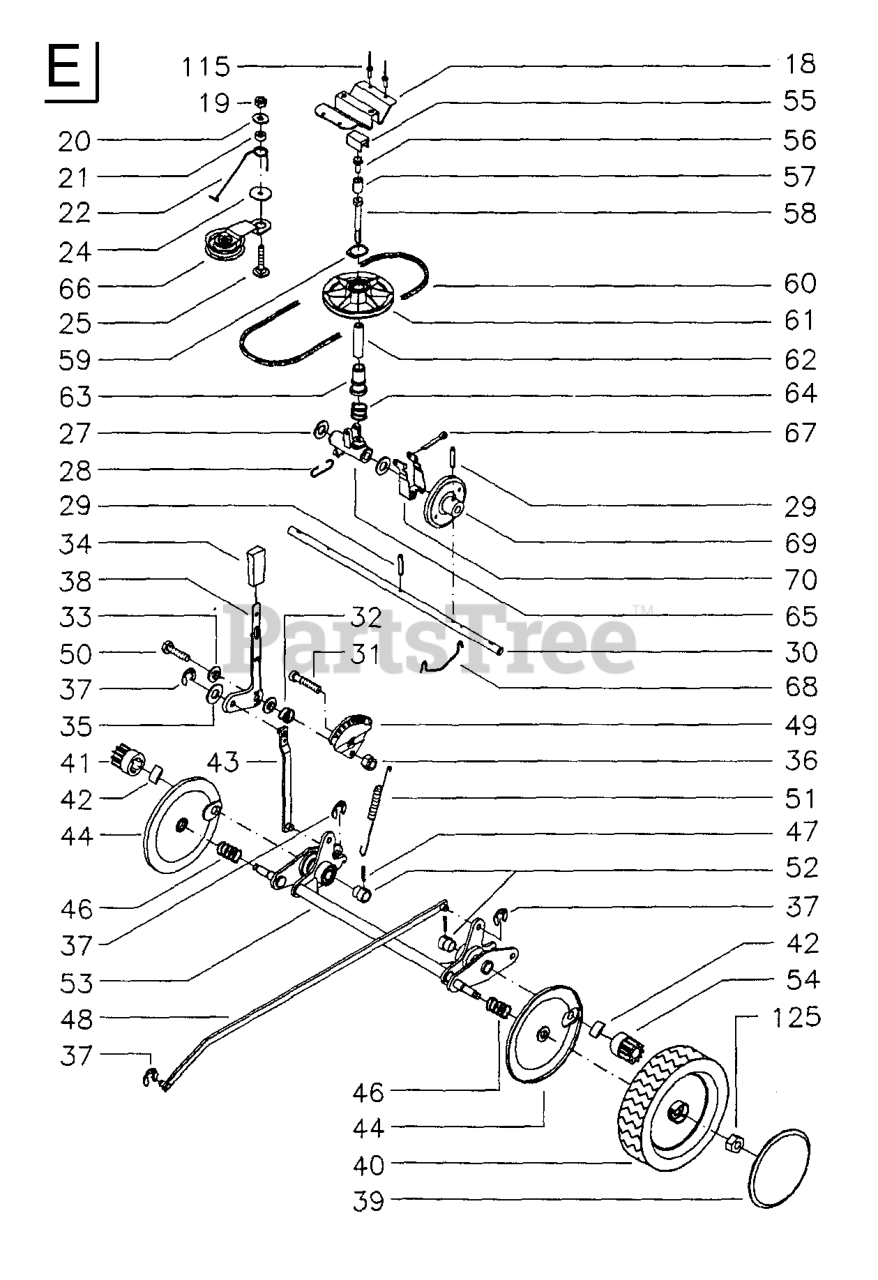

Royal 53 - Husqvarna Walk-Behind Mower (1998-11) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

68

Husqvarna 516441401

HOLDER SPACER

$

$

Not available

$

$

Not available

44

Husqvarna 516845709

SHIELD
(Superseded to 512797000)

$

$

Not available

42

Husqvarna 516910000

CARRIER
(Superseded to 514883100)

$7.99

$

In Stock, only 4 left!

0

41

Husqvarna 516921500

PINION, RIGHT

$

$

Not available

$

$

Not available

60

Husqvarna 516924600

BELT
(Superseded to 531005032)

$

$

Not available

38

$

$

Not available

$

$

Not available

$

$

Not available

49

Husqvarna 515139840

INDEXPLATE
(Superseded to 516805800)

$

$

Not available

63

Husqvarna 516712803

SLEEVE
(Superseded to 513950600)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Currently unavailable

$

$

Not available

30

Husqvarna 516614201

SHAFT
(Superseded to 516614200)

$

$

Not available

46

Husqvarna 516614801

SPRING
(Superseded to 514930700)

$

$

Not available

$

$

Not available

54

Husqvarna 516921600

PINION, LEFT

$

$

Not available

$

$

Not available

19

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

$

$

Not available

69

Husqvarna 516693700

WHEEL ASSY FRICTION
(Superseded to 513902401)

$

$

Not available

$

$

Not available

$

$

Not available

70

Husqvarna 516429701

RAM
(Superseded to 513952700)

$

$

Not available

66

Husqvarna 516700501

TENSIONER
(Superseded to 513081600)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

56

Husqvarna 516924201

SCREW
(Superseded to 516925201)

$

$

Not available

$2.99

$

In Stock, only 1 left!

0

27

Husqvarna 515768016

WASHER
(Superseded to 515796033)

$

$

Not available

$

$

Not available

61

Husqvarna 516703100

PULLEY
(Superseded to 513906200)

$

$

Not available

$

$

Not available

65

Husqvarna 516790800

HOLDER
(Superseded to 513077900)

$

$

Not available

$

$

Not available

59

$

$

Not available

39

Husqvarna 516845808

WHEEL COVER

$

$

Not available

55

Husqvarna 516850809

SLIDE BEARING

$

$

Not available

28

Husqvarna 516447701

CLIPS
(Superseded to 513951200)

$

$

Not available

$

$

Not available
