Royal 48 S - Husqvarna Walk-Behind Mower (1993-05) Handle Assembly Parts Diagram

Walk-Behind Mower

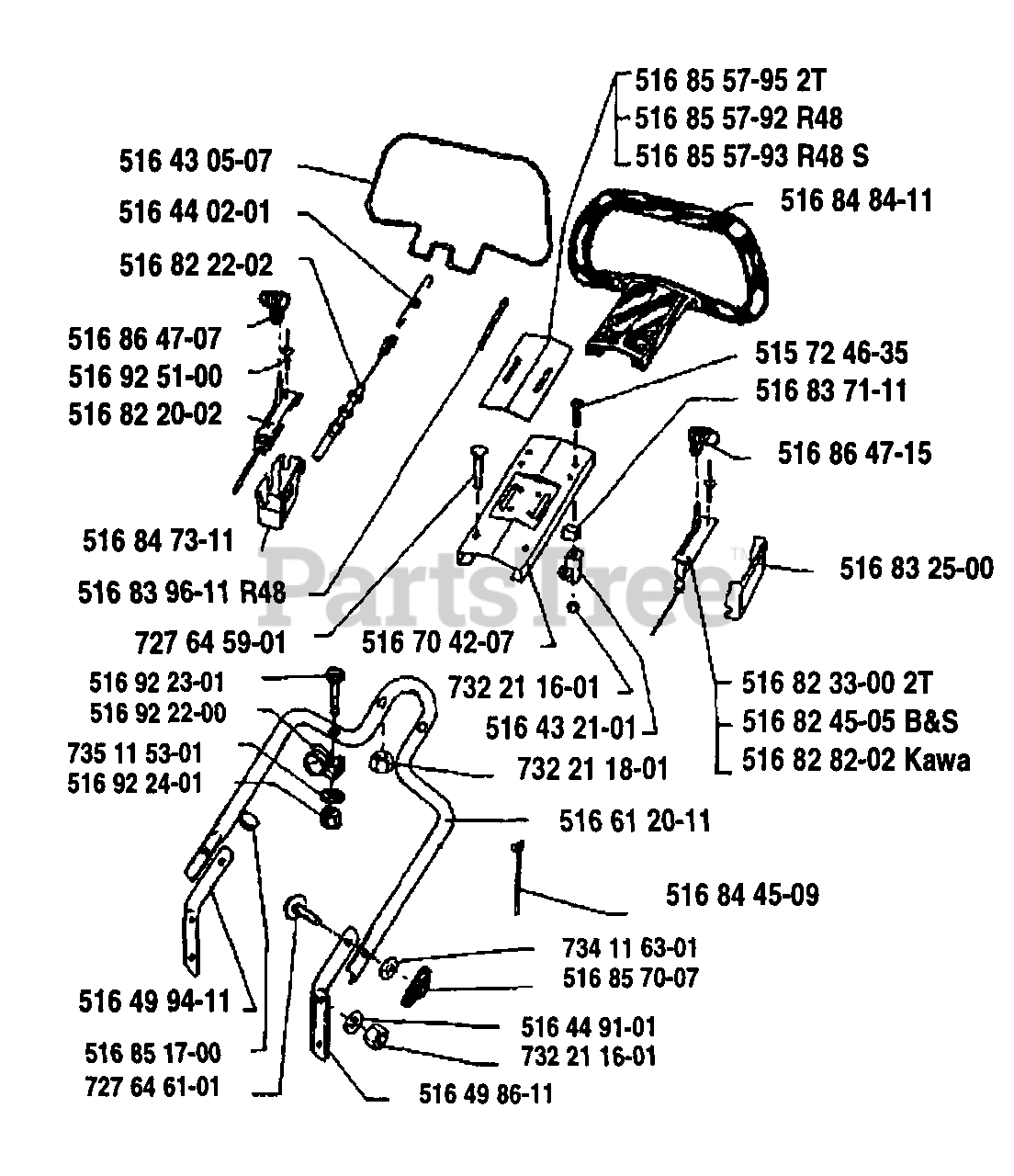

Handle Assembly Parts Diagram

  • Title
516430507

Husqvarna 516430507

CLUTCH BAR HSG.

$

$

Not available

516440201

Husqvarna 516440201

CLUTCH SPRING

$

$

Not available

516822202

Husqvarna 516822202

COUPLING WIRE

$

$

Not available

516864707

Husqvarna 516864707

KNOB
(Superseded to 516874707)

$

$

Not available

516925100

$

$

Not available

516822002

Husqvarna 516822002

CONTROL
(Superseded to 517810047)

$

$

Not available

516847311

$

$

Not available

$

$

Currently unavailable

727645901

$

$

Not available

516922301

$

$

Not available

516922200

$

$

Not available

735115301

Husqvarna 735115301

SPRING WASHER

$6.99

$

In Stock, only 1 left!

0

516922401

$

$

Not available

516704207

$

$

Not available

732211601

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

516432101

Husqvarna 516432101

REPL BY 516 43 21-01

$

$

Not available

732211801

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

516612011

$

$

Not available

516828202

Husqvarna 516828202

THROTTLE TRIGGER
(Superseded to 531005051)

$

$

Not available

516824505

Husqvarna 516824505

CONTROL
(Superseded to 531005050)

$

$

Not available

516823300

Husqvarna 516823300

THROTTLE TRIGGER

$

$

Not available

$

$

Currently unavailable

516837111

$

$

Not available

515724635

$

$

Not available

516848411

$

$

Not available

516855793

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

516499411

Husqvarna 516499411

HANDLE
(Superseded to 517770297)

$

$

Not available

$

$

Currently unavailable

727646101

$8.99

$

In Stock, only 1 left!

0

516844509

$

$

Not available

734116301

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

516857007

Husqvarna 516857007

WING NUT
(Superseded to 516874607)

$4.99

$

Usually ships in 3-10 days

0

516449101

$

$

Not available

732211601

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

516498611

Husqvarna 516498611

HANDLE
(Superseded to 517770297)

$

$

Not available

516832500

$

$

Not available
