Royal 48 - Husqvarna Walk-Behind Mower DRIVE Parts Diagram

Walk-Behind Mower

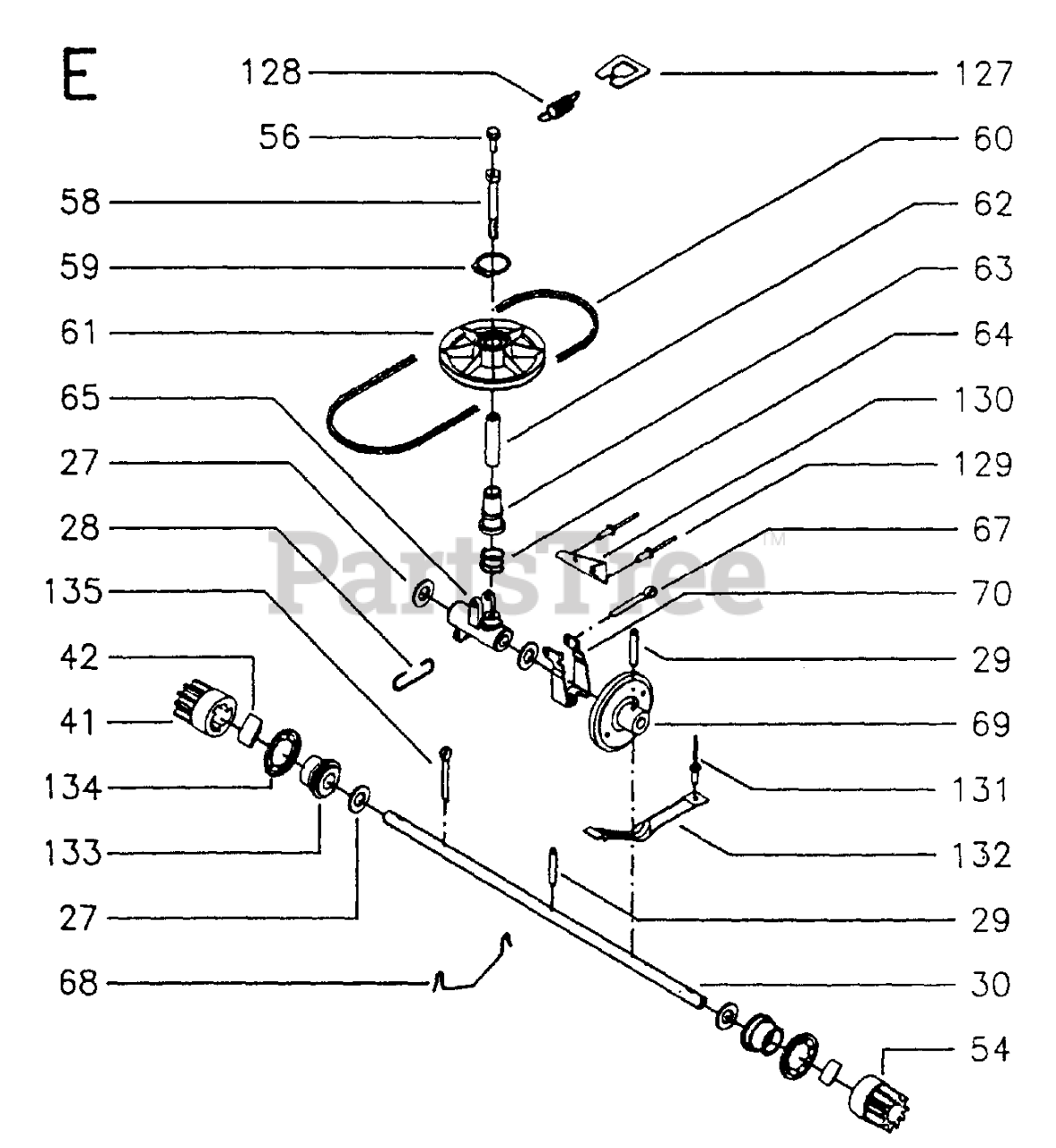

DRIVE Parts Diagram

  • Title
27

Husqvarna 515768016

WASHER
(Superseded to 515796033)

$

$

Not available

70

Husqvarna 516429701

RAM
(Superseded to 513952700)

$

$

Not available

$

$

Not available

$

$

Not available

63

Husqvarna 516712803

SLEEVE
(Superseded to 513950600)

$

$

Not available

41

Husqvarna 516921500

PINION, RIGHT

$

$

Not available

133

$

$

Not available

$

$

Not available

61

Husqvarna 516694600

PULLEY W/BRG

$

$

Not available

28

Husqvarna 516447701

CLIPS
(Superseded to 513951200)

$

$

Not available

$

$

Not available

68

Husqvarna 516441401

HOLDER SPACER

$

$

Not available

$2.49

$

In Stock, Qty 8

0

134

Husqvarna 516426600

LOCK WASHER

$

$

Not available

54

Husqvarna 516921600

PINION, LEFT

$

$

Not available

$

$

Not available

69

Husqvarna 516693700

WHEEL ASSY FRICTION
(Superseded to 513902401)

$

$

Not available

$

$

Not available

$

$

Not available

128

$

$

Not available

42

Husqvarna 516910000

CARRIER
(Superseded to 514883100)

$7.99

$

In Stock, only 4 left!

0

59

$

$

Not available

56

Husqvarna 516909101

SCREW TAPTITE

$

$

Not available

$

$

Not available

65

Husqvarna 516790800

HOLDER
(Superseded to 513077900)

$

$

Not available

131

Husqvarna 516909200

REPL BY 516 92 38-00
(Superseded to 516923800)

$

$

Not available

$

$

Not available

127

Husqvarna 516432001

SPRING FASTENING

$

$

Not available

$

$

Not available
