Royal 47 RC - Husqvarna Walk-Behind Mower BAGGER Parts Diagram

Walk-Behind Mower

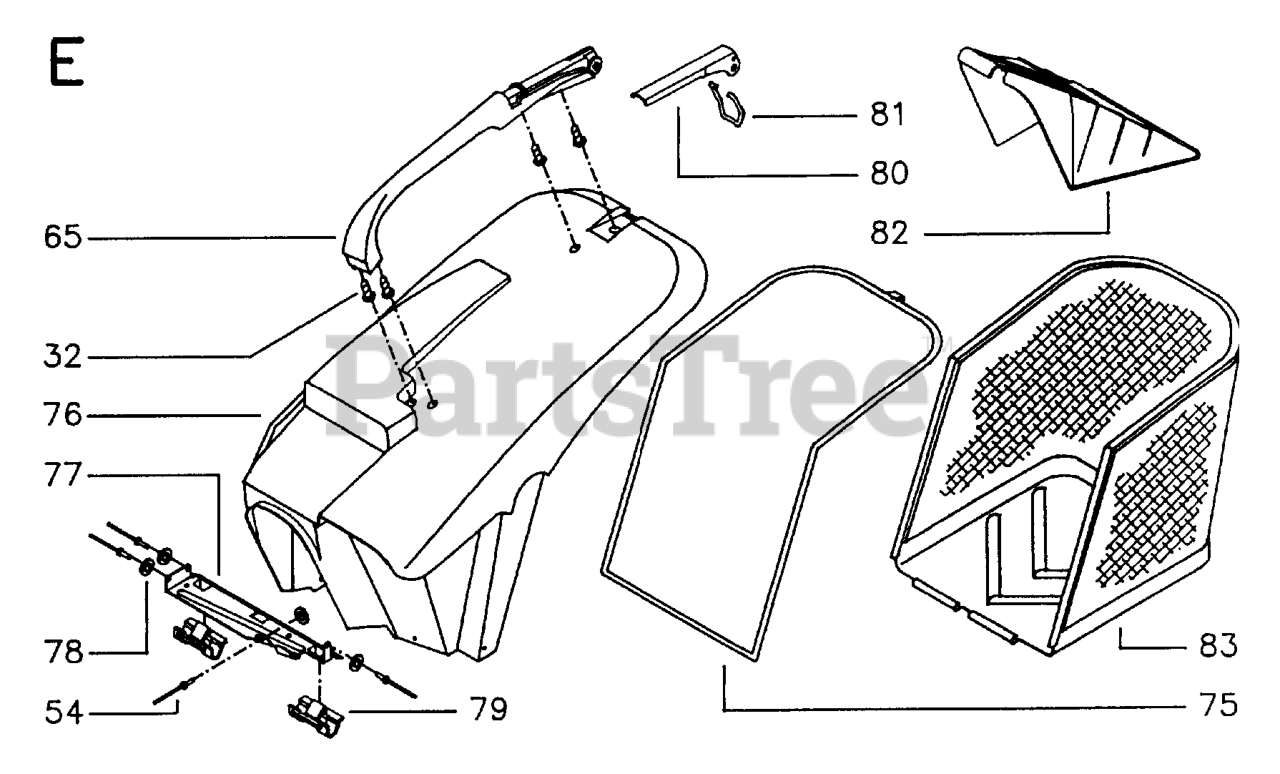

BAGGER Parts Diagram

  • Title

83

Husqvarna 516883511

NEEDS DESCRIPTION

$

$

Currently unavailable

79

Husqvarna 516882309

BRACKET

$

$

Not available

77

Husqvarna 516634001

BRACKET

$

$

Not available

75

Husqvarna 516713601

FRAME

$

$

Not available

65

Husqvarna 516871011

HANDLE

$

$

Not available

82

Husqvarna 516847600

REPL BY 997 00 85-15
(Superseded to 997008515)

$

$

Not available

32

Husqvarna 516925001

SCREW
(Superseded to 516924701)

$

$

Not available

54

Husqvarna 516909200

REPL BY 516 92 38-00
(Superseded to 516923800)

$

$

Not available

80

Husqvarna 516932511

LEVER

$

$

Not available

78

Husqvarna 734114741

WASHER

$5.99

$

Usually ships in 3-10 days

0

76

Husqvarna 516871107

COVER

$

$

Not available

81

Husqvarna 516632501

PAWL

$

$

Not available
