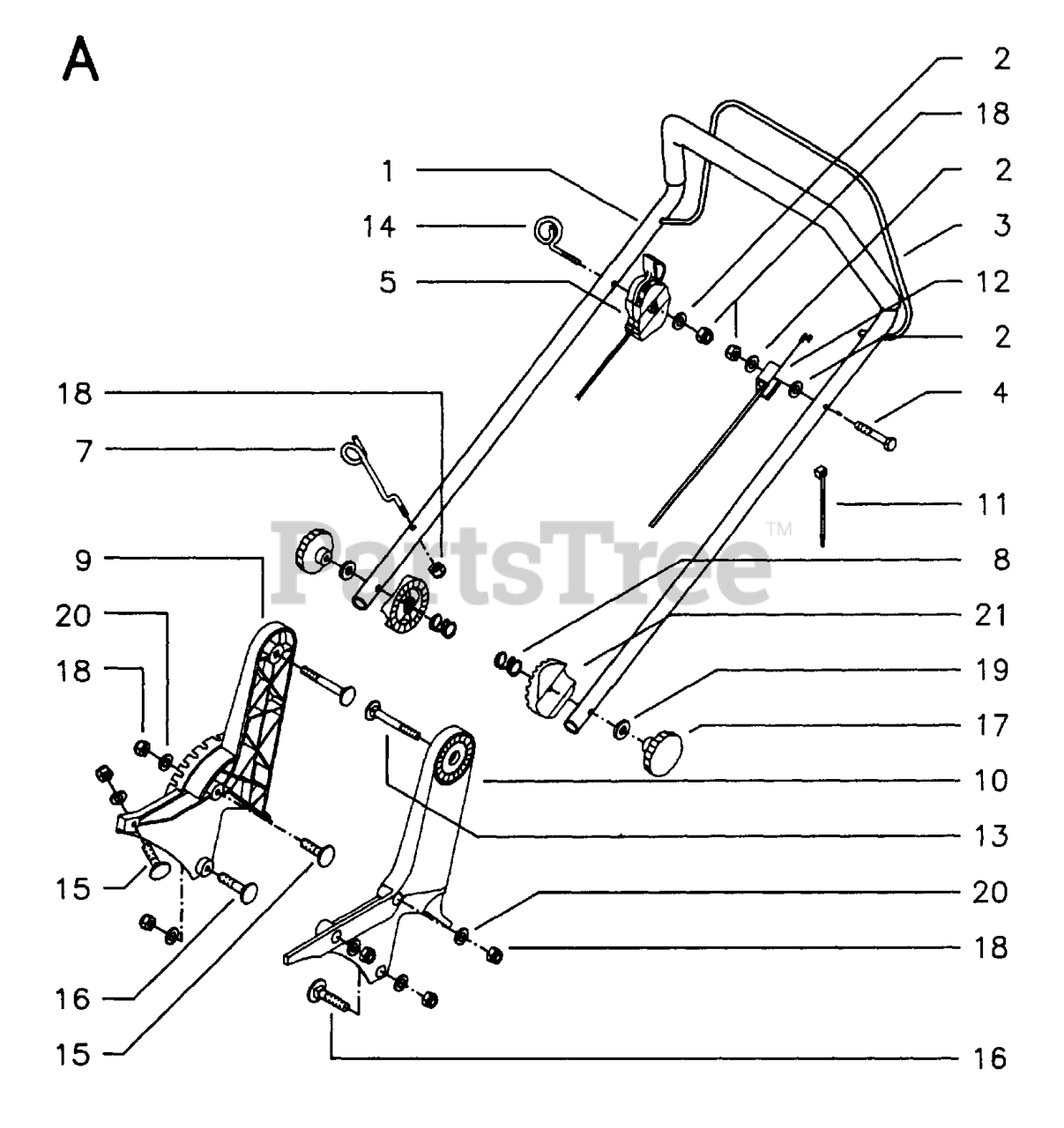

Royal 47 - Husqvarna Walk-Behind Mower HANDLE & CONTROLS 4 Parts Diagram

Walk-Behind Mower

HANDLE & CONTROLS 4 Parts Diagram

  • Title

20

Husqvarna 516449101

WASHER

$

$

Not available

14

Husqvarna 516623401

GUIDE

$

$

Not available

3

Husqvarna 516632307

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 725237851

SCREW

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 516844509

Tie-Wrap

$

$

Not available

2

Husqvarna 734115301

Washer

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 727637001

REPL BY 515 71 16-20
(Superseded to 515711620)

$

$

Not available

16

Husqvarna 515711625

SCREW

$

$

Not available

12

Husqvarna 517810046

WIRE R 47/47S/47SE

$

$

Not available

18

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

5

Husqvarna 517810060

THROTTLE TRIGGER

$

$

Not available

13

Husqvarna 515711865

BOLT

$

$

Not available

10

Husqvarna 516870711

NEEDS DESCRIPTION

$

$

Currently unavailable

17

Husqvarna 516870411

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 516870611

BRACKET

$

$

Not available

7

Husqvarna 516636301

HOLDER

$

$

Not available

21

Husqvarna 516870511

CLAMP

$

$

Not available

8

Husqvarna 516440601

SPRING

$

$

Not available

1

Husqvarna 516629325

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 515796009

WASHER

$

$

Not available
