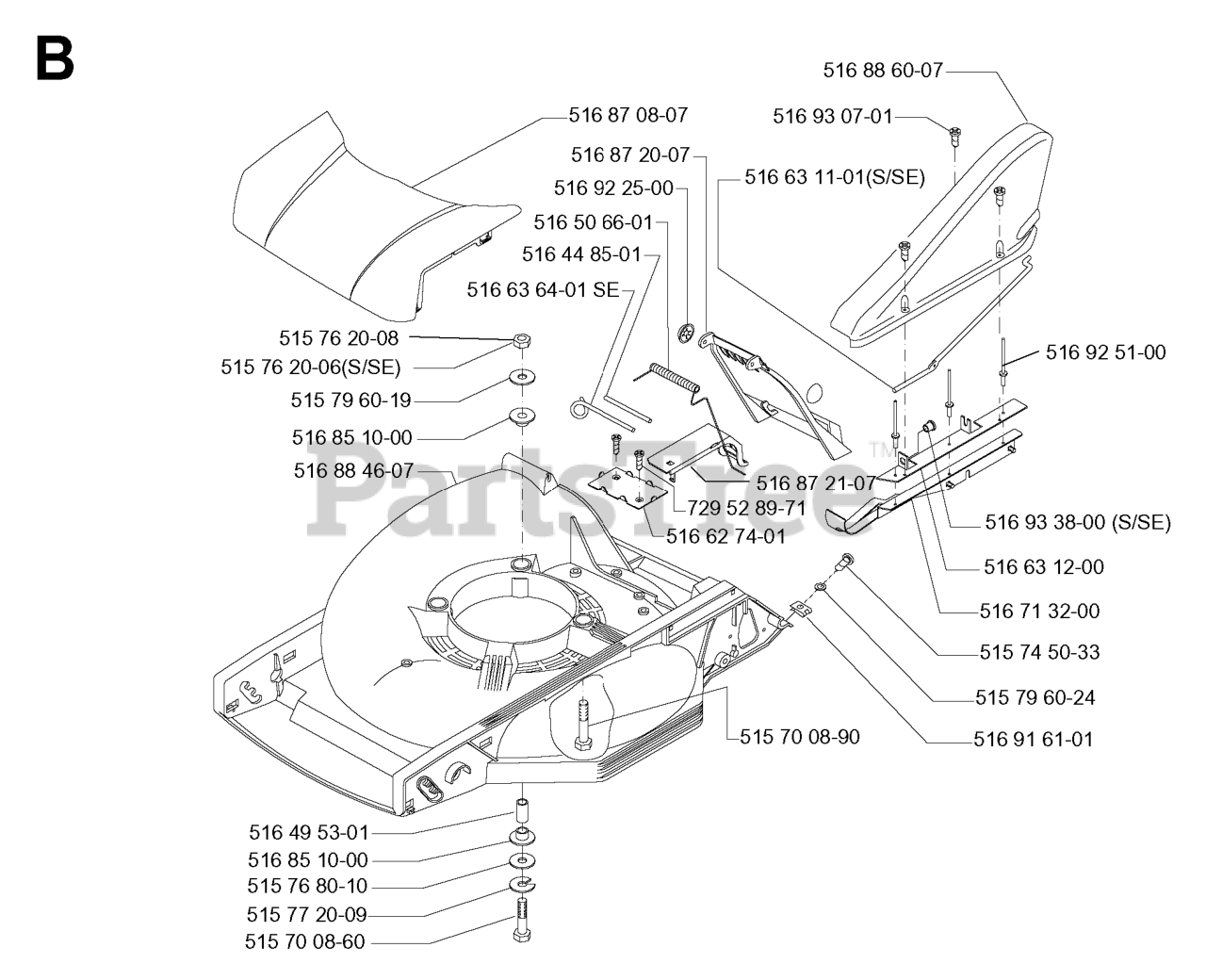

Royal 47 - Husqvarna Walk-Behind Mower FRAME 5 Parts Diagram

Walk-Behind Mower

FRAME 5 Parts Diagram

  • Title
515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$1.99

$

In Stock, only 3 left!

0

516 87 21-07

$

$

Not available

515 76 20-08

$

$

Currently unavailable

516 71 32-00

$

$

Not available

516 92 51-00

$

$

Not available

516 85 10-00

$

$

Not available

516 93 07-01

$

$

Not available

516 49 53-01

$

$

Not available

516 63 11-01

Husqvarna 516631101

BRACKET

Note: S/SE

$

$

Not available

516 50 66-01

$

$

Not available

729 52 89-71

$5.99

$

Usually ships in 3-10 days

0

515 70 08-60

Husqvarna 515700860

REPL BY 725 24 63-51
(Superseded to 725246351)

$5.99

$

In Stock, only 4 left!

0

516 63 12-00

Husqvarna 516631200

NEEDS DESCRIPTION

$

$

Currently unavailable

516 91 61-01

Husqvarna 516916101

LOCK PLATE

$

$

Not available

516 87 20-07

$

$

Not available

516 87 08-07

Husqvarna 516870807

NEEDS DESCRIPTION

$

$

Currently unavailable

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

516 93 38-00

Husqvarna 516933800

BUSHING

Note: S/SE

$

$

Not available

515 76 80-10

$

$

Not available

516 92 25-00

$

$

Not available

515 79 60-19

$

$

Not available

515 76 20-06

Husqvarna 515762006

REPL BY 732 21 16-01
(Superseded to 732211601)

Note: S/SE

$5.99

$

In Stock, only 1 left!

0

516 62 74-01

$

$

Not available

516 88 46-07

$

$

Not available

516 88 60-07

Husqvarna 516886007

NEEDS DESCRIPTION

$

$

Currently unavailable

515 79 60-24

$

$

Not available

515 70 08-90

$

$

Not available

515 74 50-33

Husqvarna 515745033

SCREW
(Superseded to 729541409)

$

$

Not available

516 63 64-01

Husqvarna 516636401

HOLDER

Note: SE

$

$

Not available
