Royal 47 - Husqvarna Walk-Behind Mower DRIVE 2 Parts Diagram

Walk-Behind Mower

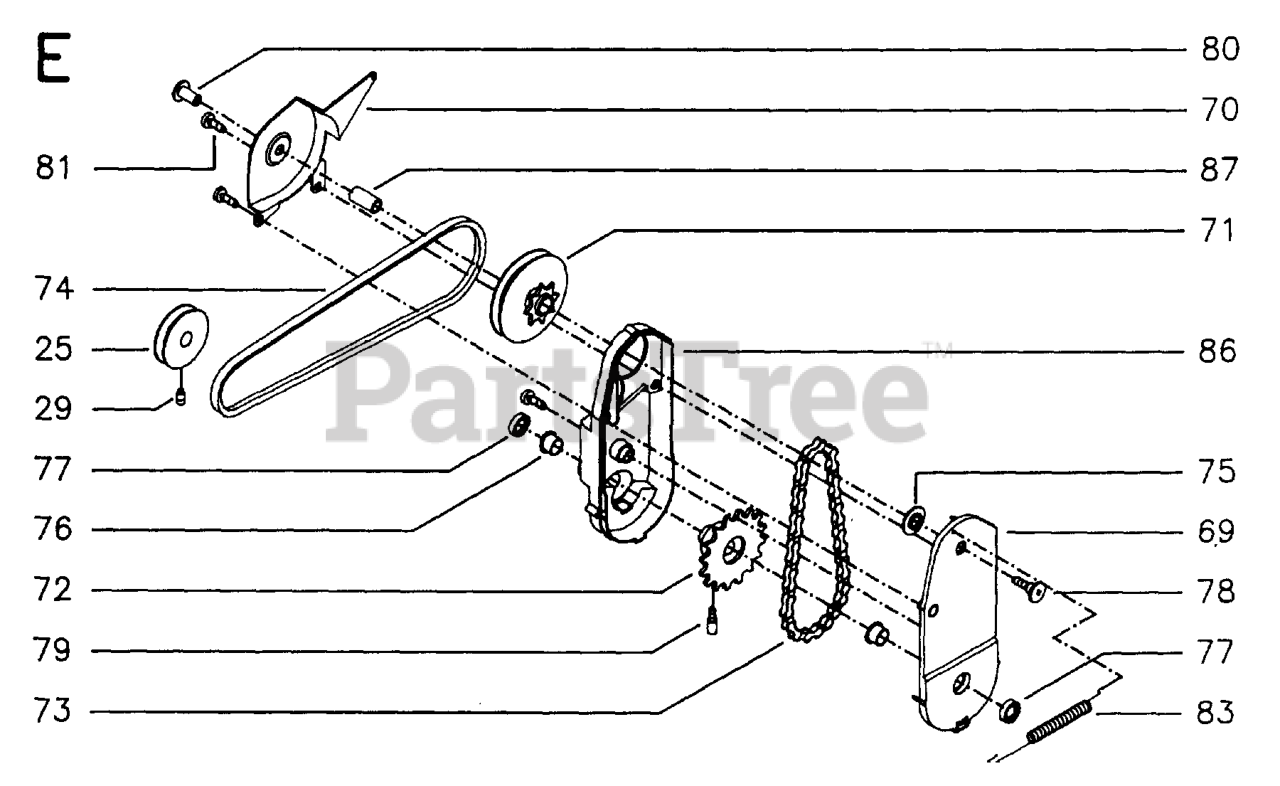

DRIVE 2 Parts Diagram

  • Title

77

Husqvarna 516933300

BUSHING

$

$

Not available

75

Husqvarna 515139754

WASHER

$

$

Not available

79

Husqvarna 516933901

SCREW

$

$

Not available

81

Husqvarna 729536771

SCREW

$

$

Not available

80

Husqvarna 516930301

SLEEVE

$

$

Not available

73

Husqvarna 515113032

CHAIN

$

$

Not available

74

Husqvarna 516907600

BELT
(Superseded to 531005036)

$

$

Not available

25

Husqvarna 516617400

WHEEL

$

$

Not available

87

Husqvarna 516933704

BUSHING

$

$

Not available

78

Husqvarna 516930401

SCREW

$

$

Not available

70

Husqvarna 516631801

COVER

$

$

Not available

29

Husqvarna 728636600

SCREW

$

$

Not available

83

Husqvarna 516619101

SPRING

$

$

Not available

72

Husqvarna 516877200

CHAIN WHEEL

$

$

Not available

71

Husqvarna 516868000

PULLEY

$

$

Not available

69

Husqvarna 516866911

COVER

$

$

Not available

86

Husqvarna 516869511

COVER

$

$

Not available

76

Husqvarna 516929700

REPL BY 516 88 29-00
(Superseded to 516882900)

$

$

Not available
