Royal 47 - Husqvarna Walk-Behind Mower CHASSIS / FRAME 2 Parts Diagram

Walk-Behind Mower

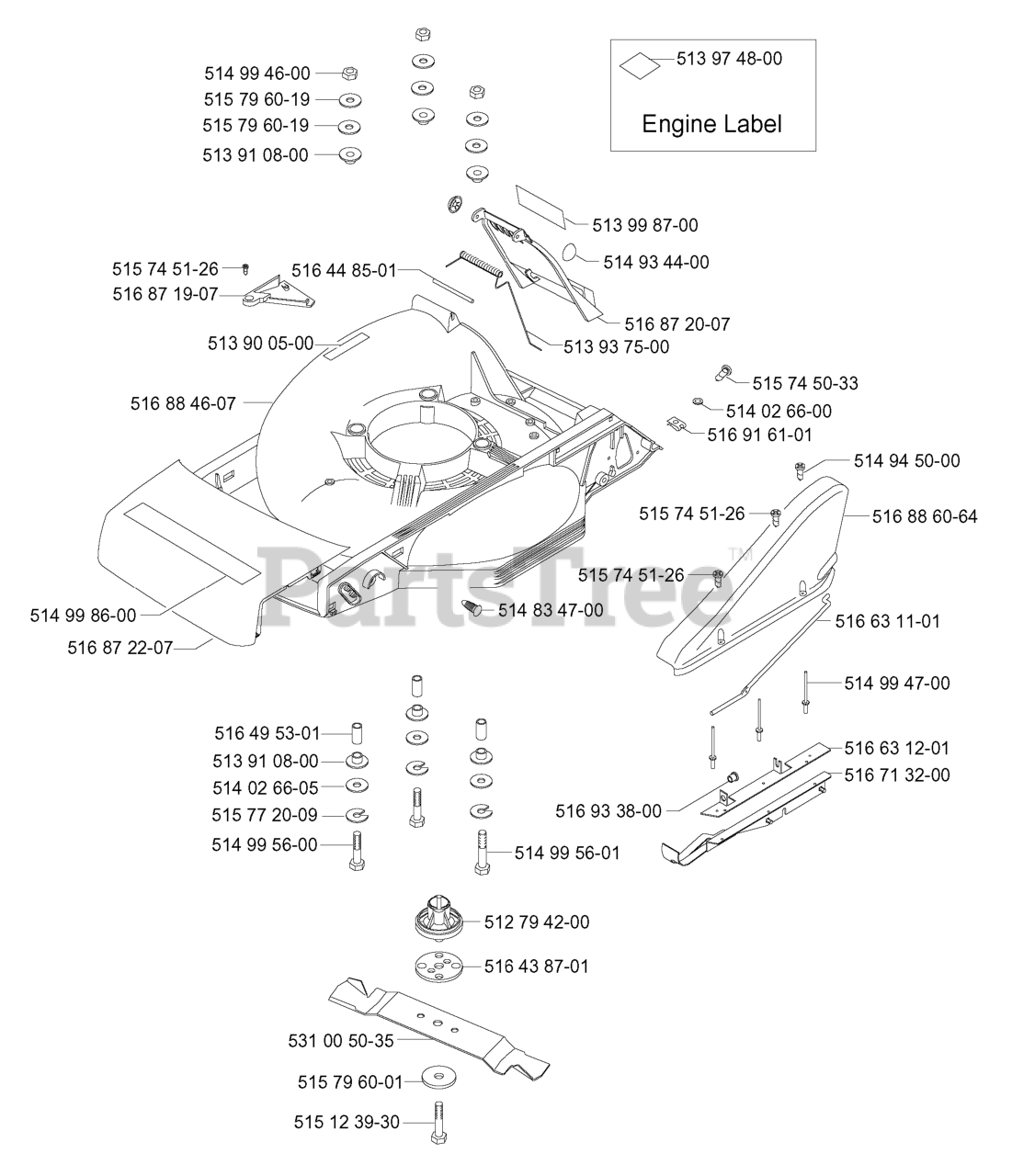

CHASSIS / FRAME 2 Parts Diagram

  • Title

514 02 66-05

Husqvarna 514026605

WASHER

$

$

Not available

516 88 60-64

Husqvarna 516886064

COVER

$

$

Not available

516 43 87-01

Husqvarna 516438701

STEEL PLATE ADAPTER

$22.99

$

In Stock, only 4 left!

0

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

513 99 87-00

Husqvarna 513998700

NEEDS DESCRIPTION

$

$

Not available

515 79 60-01

Husqvarna 515796001

WASHER

$5.99

$

Usually ships in 3-10 days

0

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available

516 93 38-00

Husqvarna 516933800

BUSHING

$

$

Not available

515 12 39-30

Husqvarna 515123930

REPL BY 515 12 39-31
(Superseded to 515123931)

$

$

Not available

514 02 66-00

Husqvarna 514026600

WASHER

$5.99

$

Usually ships in 3-10 days

0

516 63 11-01

Husqvarna 516631101

BRACKET

$

$

Not available

516 63 12-01

Husqvarna 516631201

PLATE

$

$

Not available

512 79 42-00

Husqvarna 512794200

ADAPTER

$

$

Not available

514 94 50-00

Husqvarna 514945000

SCREW

$

$

Not available

514 99 47-00

Husqvarna 514994700

RIVET

$

$

Not available

516 91 61-01

Husqvarna 516916101

LOCK PLATE

$

$

Not available

514 93 44-00

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available

514 83 47-00

Husqvarna 514834700

NEEDS DESCRIPTION

$

$

Currently unavailable

513 91 08-00

Husqvarna 513910800

INSULATOR

$

$

Not available

515 74 51-26

Husqvarna 515745126

SCREW

$

$

Not available

513 93 75-00

Husqvarna 513937500

SPRING

$

$

Not available

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

516 87 19-07

Husqvarna 516871907

COVER

$

$

Not available

516 71 32-00

Husqvarna 516713200

BRACKET

$

$

Not available

513 97 48-00

Husqvarna 513974800

DECAL

Note: ENGINE LABEL

$

$

Not available

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

$

$

Not available

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

531 00 50-35

Husqvarna 531005035

BLADE

$

$

Not available

515 74 50-33

Husqvarna 515745033

SCREW
(Superseded to 729541409)

$

$

Not available

514 99 56-01

Husqvarna 514995601

BOLT

$

$

Not available

514 99 86-00

Husqvarna 514998600

DECAL

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

513 90 05-00

Husqvarna 513900500

DECAL

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$1.99

$

In Stock, only 3 left!

0
