Royal 46 - Husqvarna Walk-Behind Mower WHEELS & TIRES 5 Parts Diagram

Walk-Behind Mower

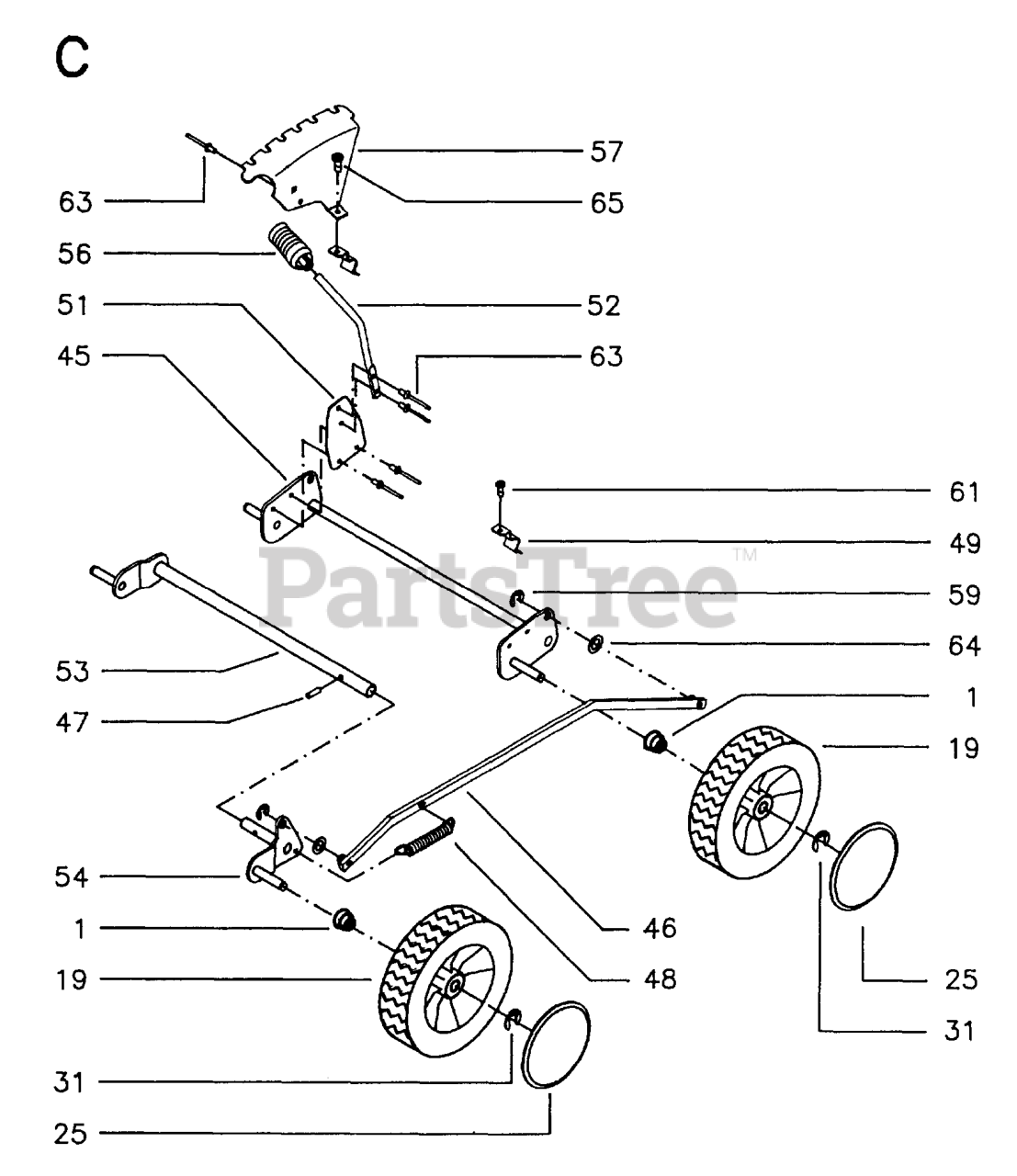

WHEELS & TIRES 5 Parts Diagram

  • Title

56

Husqvarna 516872407

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 516827009

WHEEL

$

$

Not available

53

Husqvarna 516710301

SHAFT

$

$

Not available

51

Husqvarna 516617301

BRACKET

$

$

Not available

63

Husqvarna 516909200

REPL BY 516 92 38-00
(Superseded to 516923800)

$

$

Not available

31

Husqvarna 515116038

SNAP RING

$

$

Not available

65

Husqvarna 515745126

SCREW

$

$

Not available

54

Husqvarna 516710201

BRACKET

$

$

Not available

45

Husqvarna 516710401

SHAFT

$

$

Not available

64

Husqvarna 516932000

WASHER

$

$

Not available

49

Husqvarna 516499301

PLATE

$

$

Not available

59

Husqvarna 516905100

Ring

$

$

Not available

61

Husqvarna 516930701

SCREW

$

$

Not available

57

Husqvarna 516617111

BRACKET

$

$

Not available

1

Husqvarna 516436801

CONE SPRING

$

$

Not available

48

Husqvarna 516499701

SPRING

$

$

Not available

52

Husqvarna 516629401

LEVER

$

$

Not available

46

Husqvarna 516709901

ROD

$

$

Not available

25

Husqvarna 516854908

HUB CAP

$

$

Not available

47

Husqvarna 721433801

KEY

$

$

Not available
