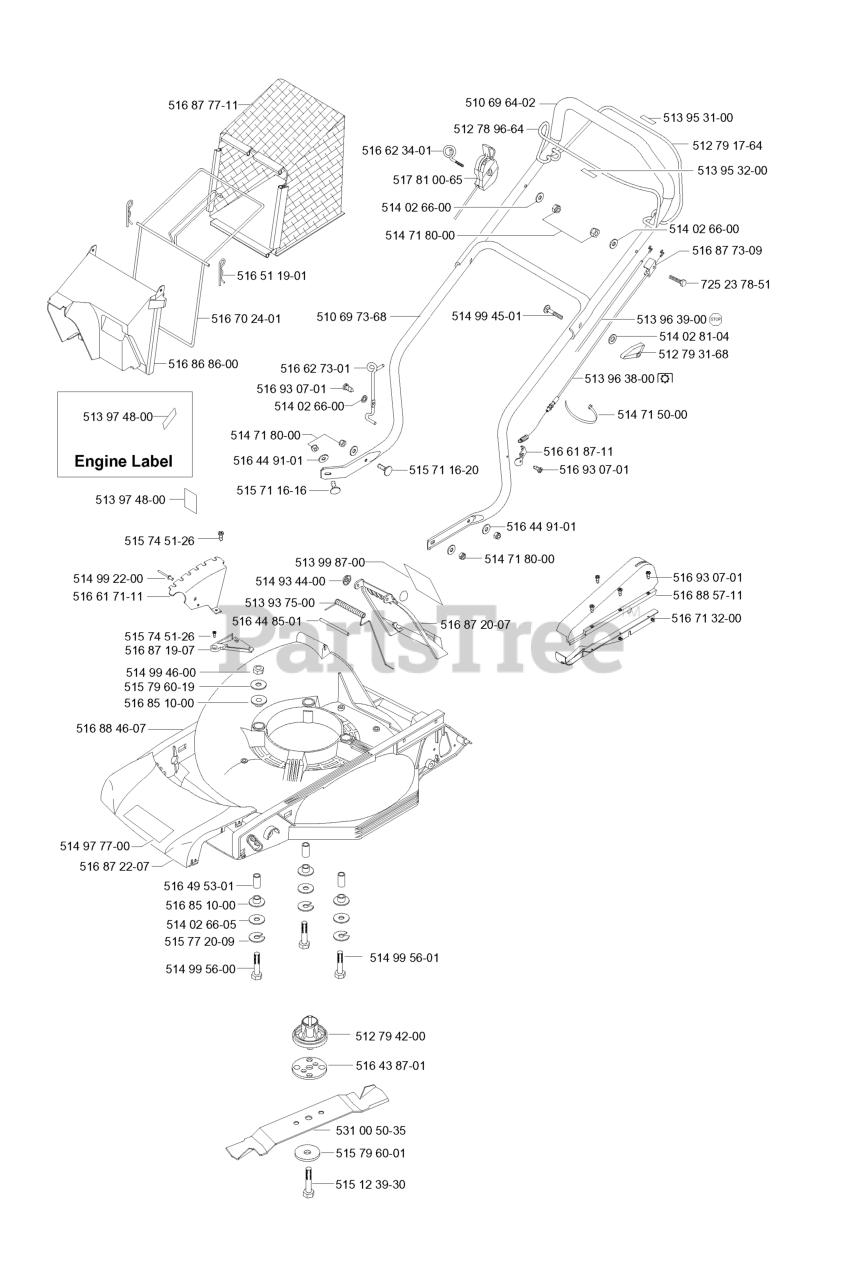

Royal 46 - Husqvarna Walk-Behind Mower (2000-04) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

510 69 64-02

Husqvarna 510696402

NEEDS DESCRIPTION

$

$

Currently unavailable

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

512 79 31-68

Husqvarna 512793168

WINGNUT
(Superseded to 512793167)

$4.99

$

Usually ships in 3-10 days

0

516 44 91-01

Husqvarna 516449101

WASHER

$

$

Not available

510 69 73-68

Husqvarna 510697368

NEEDS DESCRIPTION

$

$

Currently unavailable

516 61 71-11

Husqvarna 516617111

BRACKET

$

$

Not available

514 02 81-04

Husqvarna 514028104

WASHER

$

$

Not available

531 00 50-35

Husqvarna 531005035

BLADE

$

$

Not available

516 44 85-01

Husqvarna 516448501

PIN
(Superseded to 516636401)

$

$

Not available

513 96 38-00

Husqvarna 513963800

NEEDS DESCRIPTION

$

$

Currently unavailable

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

514 71 50-00

Husqvarna 514715000

Cable Tie

$

$

Not available

514 02 66-00

Husqvarna 514026600

WASHER

$5.99

$

Usually ships in 3-10 days

0

513 97 48-00

Husqvarna 513974800

DECAL

$

$

Not available

516 87 73-09

Husqvarna 516877309

BRACKET

$

$

Not available

515 79 60-01

Husqvarna 515796001

WASHER

$5.99

$

Usually ships in 3-10 days

0

516 70 24-01

Husqvarna 516702401

SUPPORT

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

514 97 77-00

Husqvarna 514977700

DECAL

$

$

Not available

516 62 34-01

Husqvarna 516623401

GUIDE

$

$

Not available

514 71 80-00

Husqvarna 514718000

NUT M6 NYLOC GME/D

$

$

Not available

514 99 22-00

Husqvarna 514992200

NEEDS DESCRIPTION

$

$

Currently unavailable

514 99 45-01

Husqvarna 514994501

Bolt

$

$

Not available

513 95 31-00

Husqvarna 513953100

Decal

$

$

Not available

516 93 07-01

Husqvarna 516930701

SCREW

$

$

Not available

516 71 32-00

Husqvarna 516713200

BRACKET

$

$

Not available

513 96 39-00

Husqvarna 513963900

NEEDS DESCRIPTION

$

$

Currently unavailable

516 62 73-01

Husqvarna 516627301

HOLDER

$

$

Not available

514 93 44-00

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available

516 43 87-01

Husqvarna 516438701

STEEL PLATE ADAPTER

$22.99

$

In Stock, only 4 left!

0

516 88 57-11

Husqvarna 516885711

COVER

$

$

Not available

516 87 19-07

Husqvarna 516871907

COVER

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$1.49

$

In Stock, only 3 left!

0

512 79 17-64

Husqvarna 512791764

LOOP

$

$

Not available

513 99 87-00

Husqvarna 513998700

NEEDS DESCRIPTION

$

$

Not available

517 81 00-65

Husqvarna 517810065

THROTTLE TRIGGER

$

$

Not available

725 23 78-51

Husqvarna 725237851

SCREW

$6.49

$

Usually ships in 3-10 days

0

514 02 66-05

Husqvarna 514026605

WASHER

$

$

Not available

514 99 56-01

Husqvarna 514995601

BOLT

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available

516 85 10-00

Husqvarna 516851000

WASHER

$

$

Not available

516 51 19-01

Husqvarna 516511901

PIN

$

$

Not available

516 61 87-11

Husqvarna 516618711

BRACKET

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

$

$

Not available

515 74 51-26

Husqvarna 515745126

SCREW

$

$

Not available

515 71 16-20

Husqvarna 515711620

SCREW

$

$

Not available

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

515 71 16-16

Husqvarna 515711616

SCREW
(Superseded to 727636801)

$

$

Not available

516 86 86-00

Husqvarna 516868600

COVER

$

$

Not available

512 78 96-64

Husqvarna 512789664

LOOP

$

$

Not available

513 95 32-00

Husqvarna 513953200

DECAL

$

$

Not available

516 87 77-11

Husqvarna 516877711

BAG

$

$

Not available

512 79 42-00

Husqvarna 512794200

ADAPTER

$

$

Not available

515 12 39-30

Husqvarna 515123930

REPL BY 515 12 39-31
(Superseded to 515123931)

$

$

Not available

513 93 75-00

Husqvarna 513937500

SPRING

$

$

Not available
