Royal 46 (964471839) - Husqvarna Walk-Behind Mower (1999-05) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

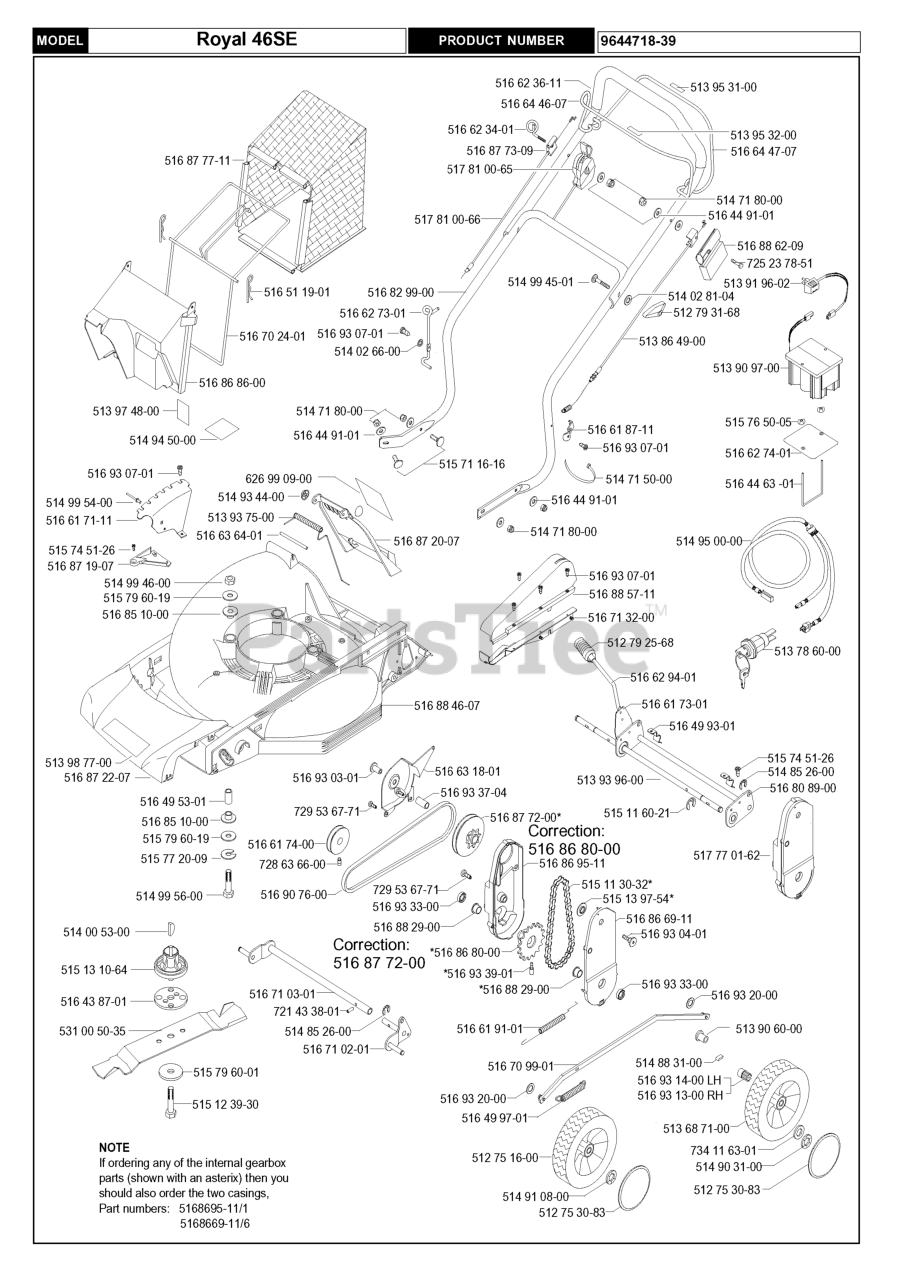

PRODUCT COMPLETE Parts Diagram

  • Title

513 95 32-00

Husqvarna 513953200

DECAL

$

$

Not available

516 93 20-00

Husqvarna 516932000

WASHER

$

$

Not available

515 74 51-26

Husqvarna 515745126

SCREW

$

$

Not available

516 62 73-01

Husqvarna 516627301

HOLDER

$

$

Not available

516 93 07-01

Husqvarna 516930701

SCREW

$

$

Not available

721 43 38-01

Husqvarna 721433801

KEY

$

$

Not available

516 93 33-00

Husqvarna 516933300

BUSHING

$

$

Not available

516 85 10-00

Husqvarna 516851000

WASHER

$

$

Not available

514 99 54-00

Husqvarna 514995400

RIVET

$

$

Not available

516 87 73-09

Husqvarna 516877309

BRACKET

$

$

Not available

514 71 80-00

Husqvarna 514718000

NUT M6 NYLOC GME/D

$

$

Not available

516 71 03-01

Husqvarna 516710301

SHAFT

$

$

Not available

515 13 97-54

Husqvarna 515139754

WASHER

$

$

Not available

516 88 29-00

Husqvarna 516882900

BEARING

$

$

Not available

517 81 00-66

Husqvarna 517810066

WIRE

$

$

Not available

516 70 99-01

Husqvarna 516709901

ROD

$

$

Not available

516 49 53-01

Husqvarna 516495301

SPACER

$

$

Not available

513 98 77-00

Husqvarna 513987700

NEEDS DESCRIPTION

$

$

Currently unavailable

514 99 45-01

Husqvarna 514994501

Bolt

$

$

Not available

516 86 80-00

Husqvarna 516868000

PULLEY

$

$

Not available

515 79 60-19

Husqvarna 515796019

Washer

$

$

Not available

516 44 63-01

Husqvarna 516446301

BRACKET

$

$

Not available

729 53 67-71

Husqvarna 729536771

SCREW

$

$

Not available

516 64 46-07

Husqvarna 516644607

LOOP

$

$

Not available

516 44 91-01

Husqvarna 516449101

WASHER

$

$

Not available

513 90 97-00

Husqvarna 513909700

BATTERY

$

$

Not available

516 64 47-07

Husqvarna 516644707

BRAKE LEVER

$

$

Not available

513 95 31-00

Husqvarna 513953100

Decal

$

$

Not available

734 11 63-01

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

514 02 81-04

Husqvarna 514028104

WASHER

$

$

Not available

516 93 04-01

Husqvarna 516930401

SCREW

$

$

Not available

512 75 30-83

Husqvarna 512753083

HUB

$

$

Not available

515 77 20-09

Husqvarna 515772009

REPL BY 735 11 64-01
(Superseded to 735116401)

$1.99

$

In Stock, only 3 left!

0

516 61 91-01

Husqvarna 516619101

SPRING

$

$

Not available

514 95 00-00

Husqvarna 514950000

CABLE

$

$

Not available

516 82 99-00

Husqvarna 516829900

NEEDS DESCRIPTION

$

$

Currently unavailable

516 43 87-01

Husqvarna 516438701

STEEL PLATE ADAPTER

$22.99

$

In Stock, only 4 left!

0

513 93 96-00

Husqvarna 513939600

SHAFT

$

$

Not available

513 68 71-00

Husqvarna 513687100

REPL BY 513 86 71-00
(Superseded to 513867100)

$

$

Not available

626 99 09-00

Husqvarna 626990900

DECAL

$

$

Not available

516 61 74-00

Husqvarna 516617400

WHEEL

$

$

Not available

515 12 39-30

Husqvarna 515123930

REPL BY 515 12 39-31
(Superseded to 515123931)

$

$

Not available

517 77 01-62

Husqvarna 517770162

HOUSING

$

$

Not available

516 90 76-00

Husqvarna 516907600

BELT
(Superseded to 531005036)

$

$

Not available

515 11 60-21

Husqvarna 515116021

SNAP RING

$

$

Not available

516 70 24-01

Husqvarna 516702401

SUPPORT

$

$

Not available

516 51 19-01

Husqvarna 516511901

PIN

$

$

Not available

516 62 36-11

Husqvarna 516623611

NEEDS DESCRIPTION

$

$

Currently unavailable

514 85 26-00

Husqvarna 514852600

RETAINING RING

$

$

Not available

516 87 72-00

Husqvarna 516877200

CHAIN WHEEL

$

$

Not available

514 02 66-00

Husqvarna 514026600

WASHER

$5.99

$

Usually ships in 3-10 days

0

516 87 19-07

Husqvarna 516871907

COVER

$

$

Not available

514 71 50-00

Husqvarna 514715000

Cable Tie

$

$

Not available

516 93 14-00

Husqvarna 516931400

PINION

Note: LH

$

$

Not available

516 62 94-01

Husqvarna 516629401

LEVER

$

$

Not available

512 79 25-68

Husqvarna 512792568

KNOB

$

$

Not available

516 63 18-01

Husqvarna 516631801

COVER

$

$

Not available

512 75 16-00

Husqvarna 512751600

WHEEL

$

$

Not available

516 80 89-00

Husqvarna 516808900

SHAFT

$

$

Not available

515 11 30-32

Husqvarna 515113032

CHAIN

$

$

Not available

516 62 34-01

Husqvarna 516623401

GUIDE

$

$

Not available

516 49 97-01

Husqvarna 516499701

SPRING

$

$

Not available

728 63 66-00

Husqvarna 728636600

SCREW

$

$

Not available

516 86 86-00

Husqvarna 516868600

COVER

$

$

Not available

514 91 08-00

Husqvarna 514910800

PUSH ON FIX

$

$

Not available

517 81 00-65

Husqvarna 517810065

THROTTLE TRIGGER

$

$

Not available

516 87 20-07

Husqvarna 516872007

COVER

$

$

Not available

516 93 03-01

Husqvarna 516930301

SLEEVE

$

$

Not available

513 86 49-00

Husqvarna 513864900

WIRE

$

$

Not available

514 90 31-00

Husqvarna 514903100

STARLOCK

$

$

Not available

516 71 02-01

Husqvarna 516710201

BRACKET

$

$

Not available

516 49 93-01

Husqvarna 516499301

PLATE

$

$

Not available

516 86 69-11

Husqvarna 516866911

COVER

$

$

Not available

514 00 53-00

Husqvarna 514005300

KEY

$6.99

$

Usually ships in 3-10 days

0

516 87 77-11

Husqvarna 516877711

BAG

$

$

Not available

513 91 96-02

Husqvarna 513919602

BATTERY CHARGER

$

$

Not available

516 93 39-01

Husqvarna 516933901

SCREW

$

$

Not available

516 88 46-07

Husqvarna 516884607

CHASSIS

$

$

Not available

513 78 60-00

Husqvarna 513786000

IGNITION SWITCH

$

$

Not available

531 00 50-35

Husqvarna 531005035

BLADE

$

$

Not available

513 90 60-00

Husqvarna 513906000

SPRING

$

$

Not available

516 88 62-09

Husqvarna 516886209

NEEDS DESCRIPTION

$

$

Currently unavailable

513 97 48-00

Husqvarna 513974800

DECAL

$

$

Not available

515 71 16-16

Husqvarna 515711616

SCREW
(Superseded to 727636801)

$

$

Not available

514 99 46-00

Husqvarna 514994600

NUT

$

$

Not available

515 76 50-05

Husqvarna 515765005

WING NUT

$

$

Not available

516 87 72-00

Husqvarna 516877200

CHAIN WHEEL

Note: CORRECTION:

$

$

Not available

516 61 73-01

Husqvarna 516617301

BRACKET

$

$

Not available

516 61 87-11

Husqvarna 516618711

BRACKET

$

$

Not available

516 61 71-11

Husqvarna 516617111

BRACKET

$

$

Not available

516 93 37-04

Husqvarna 516933704

BUSHING

$

$

Not available

514 88 31-00

Husqvarna 514883100

PAWL

$7.99

$

In Stock, only 4 left!

0

515 79 60-01

Husqvarna 515796001

WASHER

$5.99

$

Usually ships in 3-10 days

0

515 13 10-64

Husqvarna 515131064

BLADE ADAPTER
(Superseded to 531005028)

$

$

Not available

514 94 50-00

Husqvarna 514945000

SCREW

$

$

Not available

516 88 57-11

Husqvarna 516885711

COVER

$

$

Not available

512 79 31-68

Husqvarna 512793168

WINGNUT
(Superseded to 512793167)

$4.99

$

Usually ships in 3-10 days

0

516 87 22-07

Husqvarna 516872207

COVER

$

$

Not available

725 23 78-51

Husqvarna 725237851

SCREW

$6.49

$

In Stock, only 2 left!

0

516 62 74-01

Husqvarna 516627401

PLATE

$

$

Not available

514 93 44-00

Husqvarna 514934400

STAR LOCKWASHER

$

$

Not available

516 63 64-01

Husqvarna 516636401

HOLDER

$

$

Not available

516 93 13-00

Husqvarna 516931300

NEEDS DESCRIPTION

Note: RH

$

$

Not available

514 99 56-00

Husqvarna 514995600

BOLT

$

$

Not available

516 71 32-00

Husqvarna 516713200

BRACKET

$

$

Not available

513 93 75-00

Husqvarna 513937500

SPRING

$

$

Not available

516 86 80-00

Husqvarna 516868000

PULLEY

Note: CORRECTION:

$

$

Not available
