Royal 43 - Husqvarna Walk-Behind Mower (1998-05) FRAME & ENGINE Parts Diagram

Walk-Behind Mower

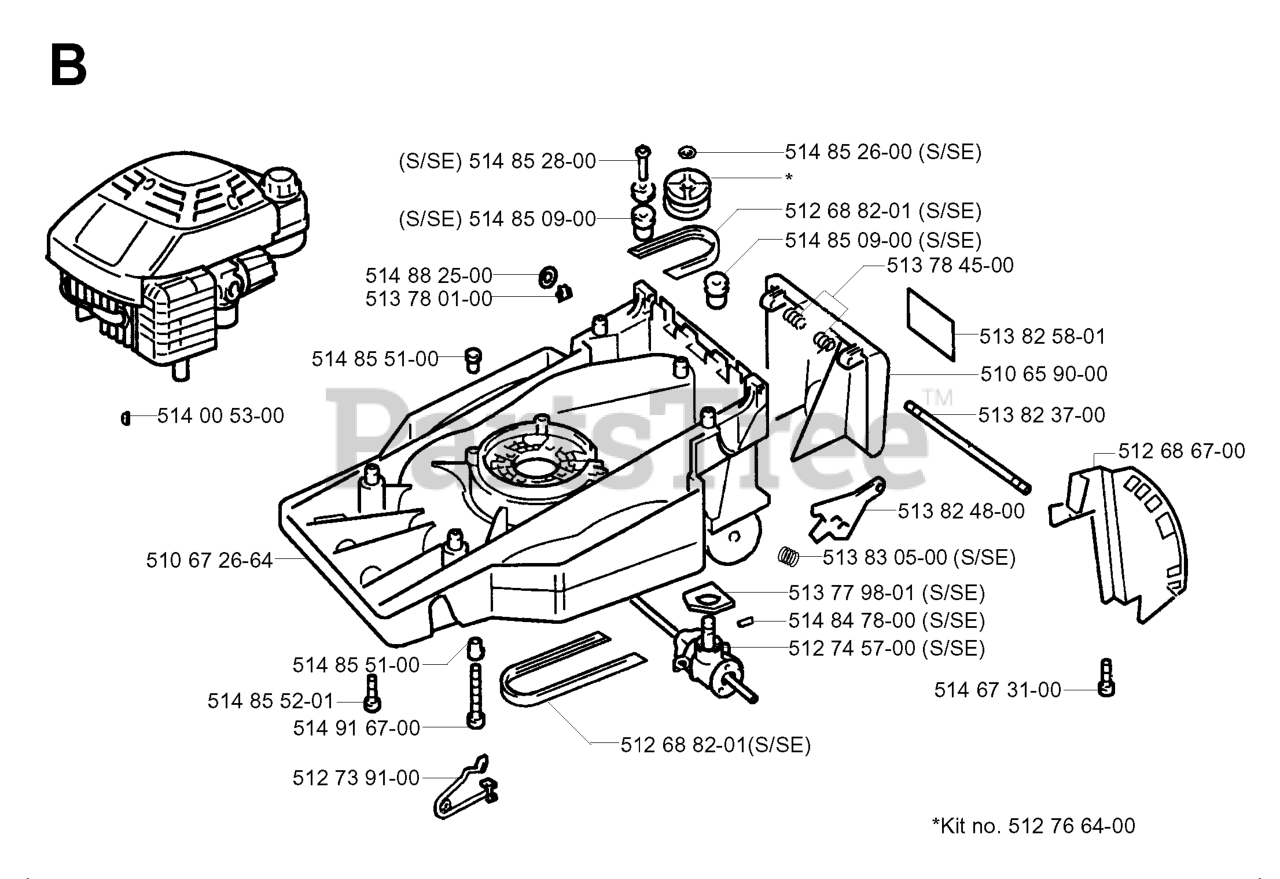

FRAME & ENGINE Parts Diagram

  • Title
514 85 26-00

Husqvarna 514852600

RETAINING RING

Note: S/SE

$

$

Not available

510 67 26-64

$

$

Currently unavailable

512 68 67-00

$

$

Not available

513 82 58-01

$

$

Currently unavailable

514 00 53-00

$6.99

$

Usually ships in 3-10 days

0

512 74 57-00

Husqvarna 512745700

NEEDS DESCRIPTION

Note: S/SE

$

$

Currently unavailable

514 85 09-00

Husqvarna 514850900

BUSHING

Note: S/SE

$

$

Not available

512 76 64-00

$

$

Currently unavailable

513 78 45-00

$

$

Not available

514 85 52-01

$

$

Currently unavailable

512 68 82-01

Husqvarna 512688201

Note: S/SE

$

$

Currently unavailable

513 83 05-00

Husqvarna 513830500

Note: S/SE

$

$

Currently unavailable

514 84 78-00

Husqvarna 514847800

PIN

Note: S/SE

$

$

Not available

514 88 25-00

$

$

Not available

514 67 31-00

Husqvarna 514673100

SCREW-ON/OFF SWITCH

$

$

Not available

513 78 01-00

$

$

Not available

514 91 67-00

$

$

Not available

514 85 51-00

$

$

Not available

513 82 48-00

$

$

Currently unavailable

514 85 28-00

Husqvarna 514852800

RIVET

Note: S/SE

$

$

Not available

510 65 90-00

$

$

Not available

513 82 37-00

$

$

Currently unavailable

512 73 91-00

$

$

Currently unavailable

513 77 98-01

Husqvarna 513779801

Note: S/SE

$

$

Currently unavailable
