Royal 43 EL - Husqvarna Walk-Behind Mower FRAME & ENGINE Parts Diagram

Walk-Behind Mower

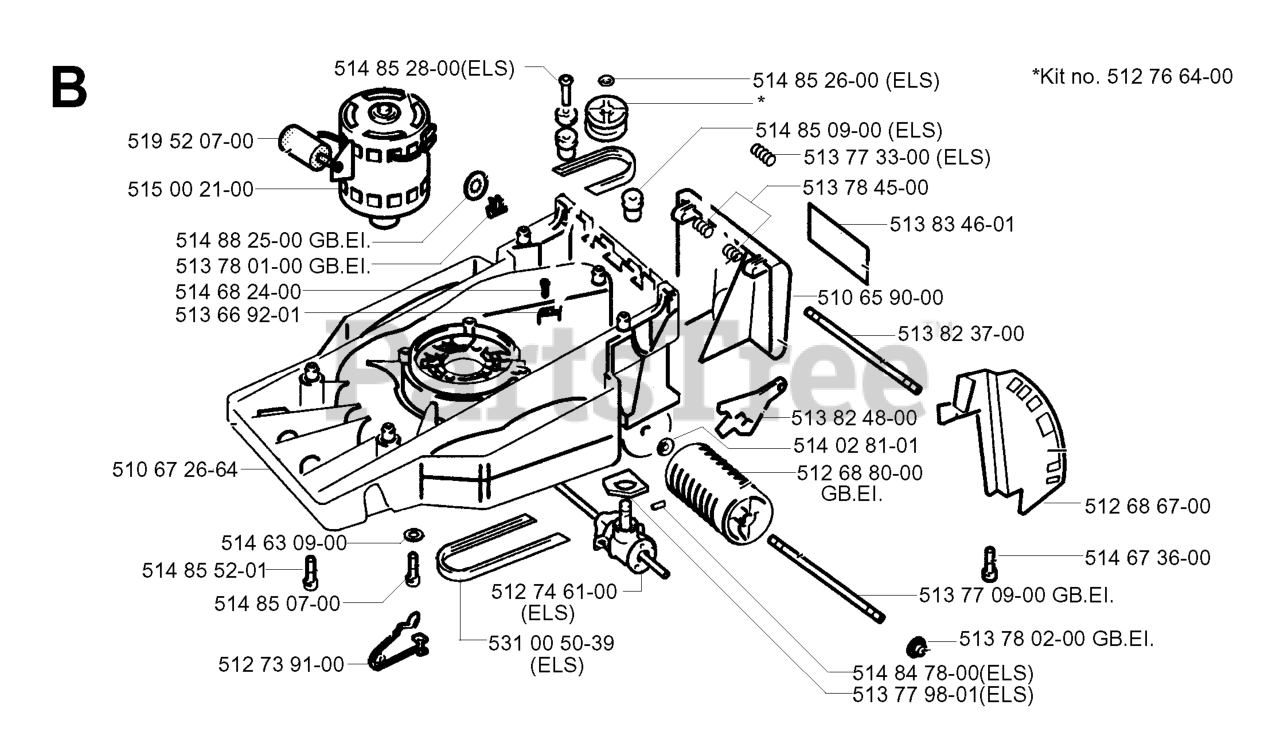

FRAME & ENGINE Parts Diagram

  • Title
514 85 26-00

Husqvarna 514852600

RETAINING RING

Note: ELS

$

$

Not available

512 68 80-00

Husqvarna 512688000

ROLLER

Note: GB.EI.

$

$

Not available

514 85 07-00

$

$

Not available

513 78 02-00

Husqvarna 513780200

BUSHING

Note: GB.EI.

$

$

Not available

512 73 91-00

$

$

Currently unavailable

514 85 28-00

Husqvarna 514852800

RIVET

Note: ELS

$

$

Not available

513 83 46-01

Husqvarna 513834601

NEEDS DESCRIPTION

$

$

Currently unavailable

515 00 21-00

Husqvarna 515002100

NEEDS DESCRIPTION

$

$

Currently unavailable

514 02 81-01

$

$

Currently unavailable

514 67 36-00

$

$

Not available

531 00 50-39

$

$

Currently unavailable

513 78 01-00

Husqvarna 513780100

BUSHING

Note: GB.EI.

$

$

Not available

513 77 33-00

Husqvarna 513773300

CLUTCH SPRING

Note: ELS

$

$

Not available

512 68 67-00

$

$

Not available

513 77 98-01

$

$

Currently unavailable

513 82 48-00

$

$

Currently unavailable

513 77 09-00

Husqvarna 513770900

SHAFT

Note: GB.EI.

$

$

Not available

513 78 45-00

$

$

Not available

514 68 24-00

$

$

Not available

514 88 25-00

Husqvarna 514882500

WASHER

Note: GB.EI.

$

$

Not available

510 65 90-00

$

$

Not available

513 82 37-00

$

$

Currently unavailable

512 74 61-00

Husqvarna 512746100

NEEDS DESCRIPTION

Note: ELS

$

$

Currently unavailable

514 85 52-01

$

$

Currently unavailable

513 66 92-01

Husqvarna 513669201

NEEDS DESCRIPTION

$

$

Currently unavailable

514 85 09-00

Husqvarna 514850900

BUSHING

Note: ELS

$

$

Not available

514 63 09-00

$

$

Not available

514 84 78-00

Husqvarna 514847800

PIN

Note: ELS

$

$

Not available

512 76 64-00

$

$

Currently unavailable

510 67 26-64

$

$

Currently unavailable

519 52 07-00

Husqvarna 519520700

NEEDS DESCRIPTION

$

$

Currently unavailable
