Rogue - Bad Boy Zero-Turn Mower (2025) Front End Subassemblies Parts Diagram

Zero-Turn Mower

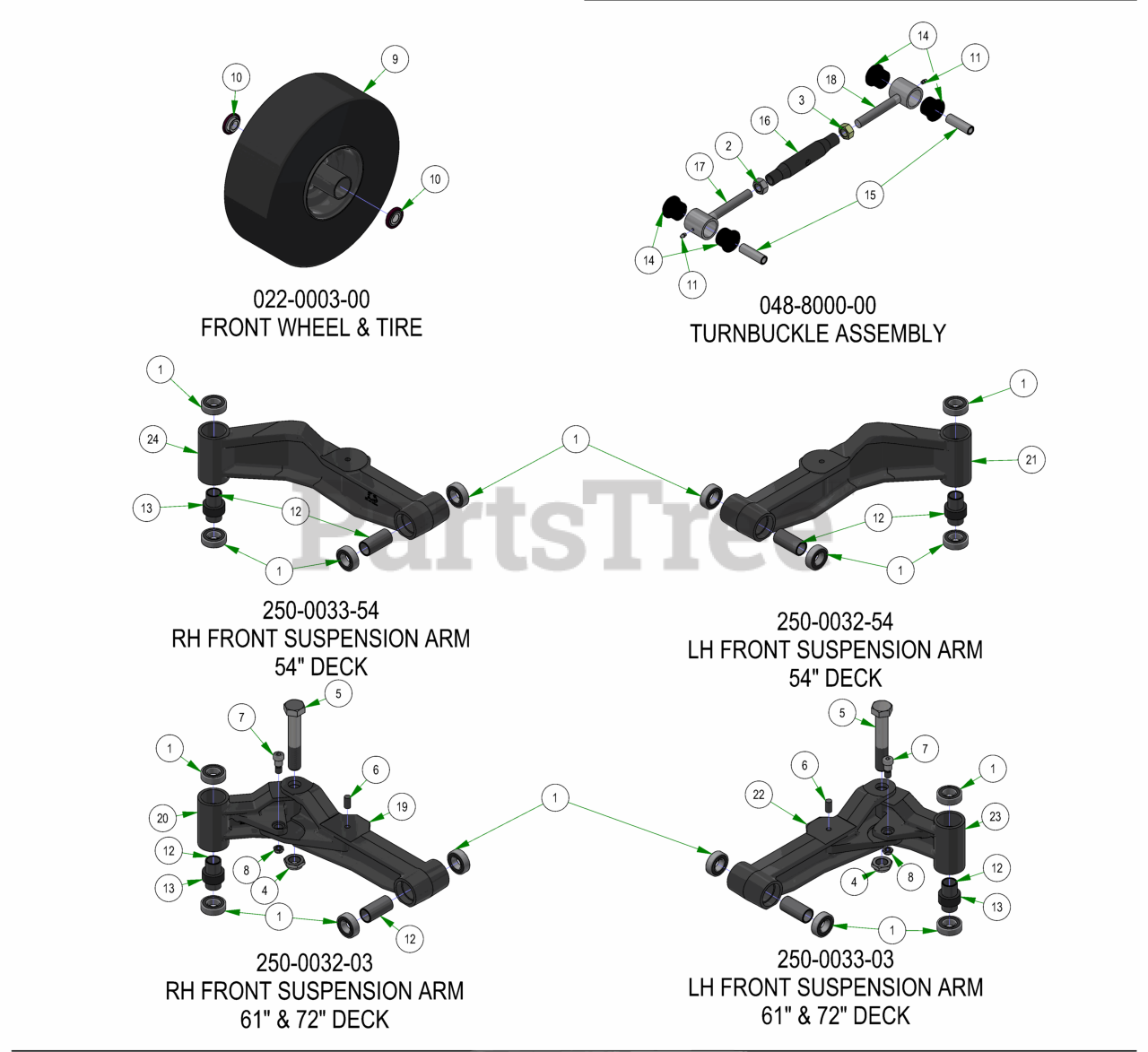

Front End Subassemblies Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-0030-00

Hex Nut M20-2.5

$

$

Currently unavailable

3

Bad Boy 013-0031-00

Hex Nut M20-2.5 Left Hand Threads Gold Plated

$

$

Currently unavailable

4

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

5

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

6

Bad Boy 018-2009-00

1/2-13 x 1" Stud

$6.49

$

Usually ships in 4-7 days

0

7

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

8

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

9

Bad Boy 022-0004-00

15x6-6 Tire Only

$91.99

$

Usually ships in 4-7 days

0

10

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 20+

0

11

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

13

Bad Boy 029-7050-00

Rubber Stabilizer (Front Forks) [R series]

$9.49

$

Usually ships in 4-7 days

0

14

Bad Boy 032-2000-00

Polyeurethane Bushing

$4.99

$

In Stock, Qty 11

0

15

Bad Boy 032-2001-00

Sleeve

$4.99

$

In Stock, only 4 left!

0

16

Bad Boy 048-8020-00

2024 Turnbuckle Body

$

$

Currently unavailable

17

Bad Boy 048-8021-00

Turnbuckle End Right-Handed Thread

$

$

Currently unavailable

18

Bad Boy 048-8022-00

Turnbuckle End Left-Handed Thread

$

$

Currently unavailable

19

Bad Boy 250-0032-01

INNER RH FRONT AXLE

$

$

Not available

20

Bad Boy 250-0032-02

OUTER FRONT ARM RH

$

$

Not available

21

Bad Boy 250-0032-22

2019 Front I-Beam Left - Black

$

$

Currently unavailable

22

Bad Boy 250-0033-01

INNER FRONT ARM LH

$

$

Not available

23

Bad Boy 250-0033-02

CAST OUTER ARM LH

$

$

Not available

24

Bad Boy 250-0033-22

R.H. I-BEAM ARM - Black

$

$

Currently unavailable
