Rogue - Bad Boy Zero-Turn Mower (2025) Engine - Vanguard EFI Parts Diagram

Zero-Turn Mower

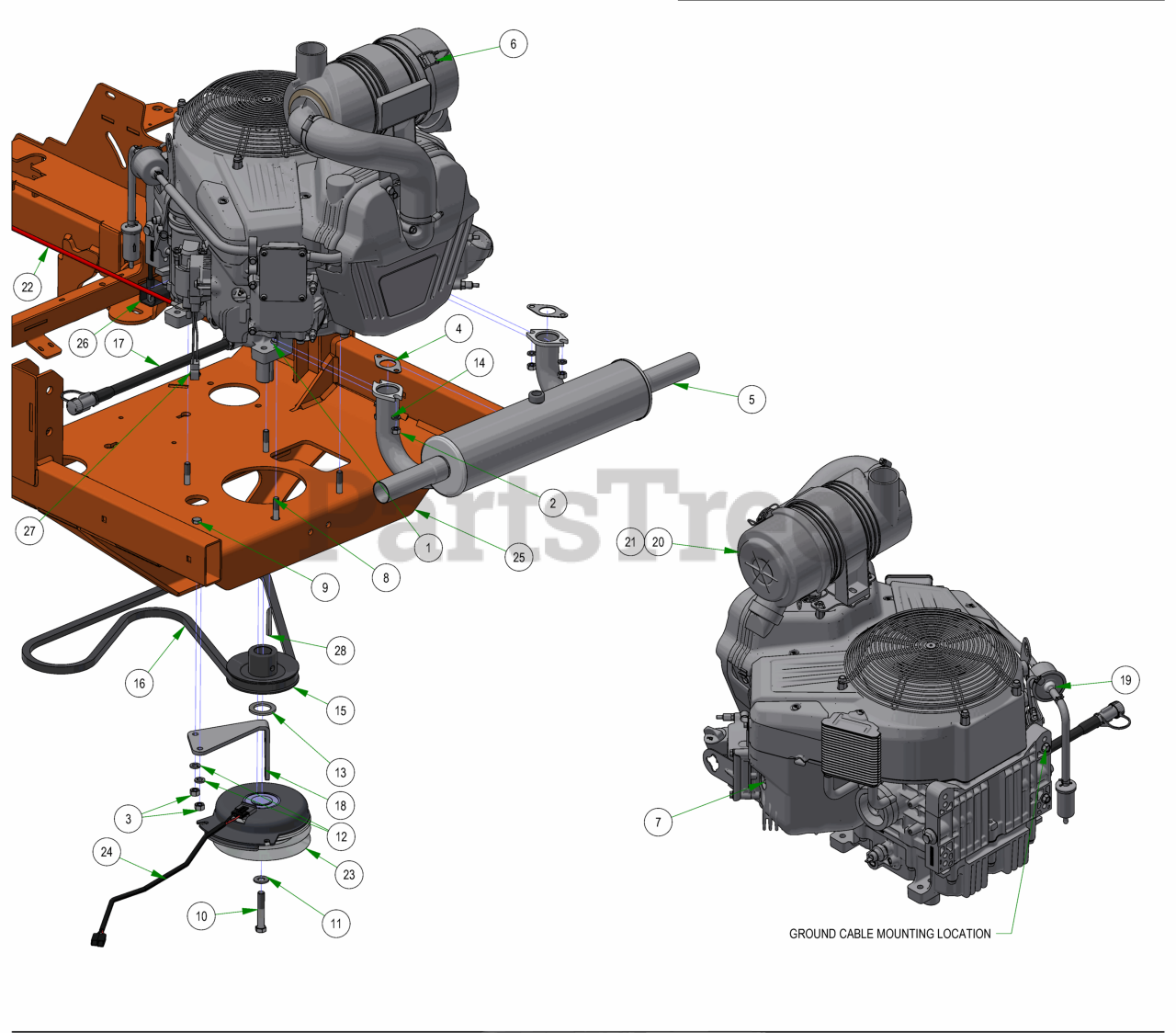

Engine - Vanguard EFI Parts Diagram

  • Title

1

Bad Boy 013-0009-00

3/8-16 HEX FLANGE TOP LOCKNUT ZINC

$2.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

3

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 015-0025-00

Exhaust Gasket for 23 Vanguard

$11.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-1014-00

Muffler for 36Hp Vanguard

$226.99

$

Usually ships in 4-7 days

0

6

Bad Boy 015-3001-00

2019 VANGUARD EFI 37 HP 993cc VERTICAL SHAFT

$3989.99

$

Usually ships in 4-7 days

0

7

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

8

Bad Boy 018-0115-00

3/8-16x1-3/4 Gr5 Hex Flange Screw Zinc Clear

$

$

Currently unavailable

9

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

10

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$3.99

$

Usually ships in 4-7 days

0

11

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

12

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

13

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

14

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

16

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

17

Bad Boy 051-5402-00

14mm Oid Drain - 36hp Vanguard

$33.99

$

Usually ships in 4-7 days

0

18

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

Usually ships in 4-7 days

0

19

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

20

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 12

0

21

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 5

0

22

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

23

Bad Boy 070-1000-00

Clutch

$319.99

$

In Stock, Qty 20+

0

24

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

25

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

$1025.99

$

Usually ships in 4-7 days

0

26

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

27

Bad Boy 086-9013-21

2019 Harness Adaptor - Vanguard 37 EFI Vert/Horiz

$34.99

$

Usually ships in 4-7 days

0

28

Bad Boy 042-0012-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$

$

Currently unavailable
