Rogue - Bad Boy Zero-Turn Mower (2025) Drive Arms Parts Diagram

Zero-Turn Mower

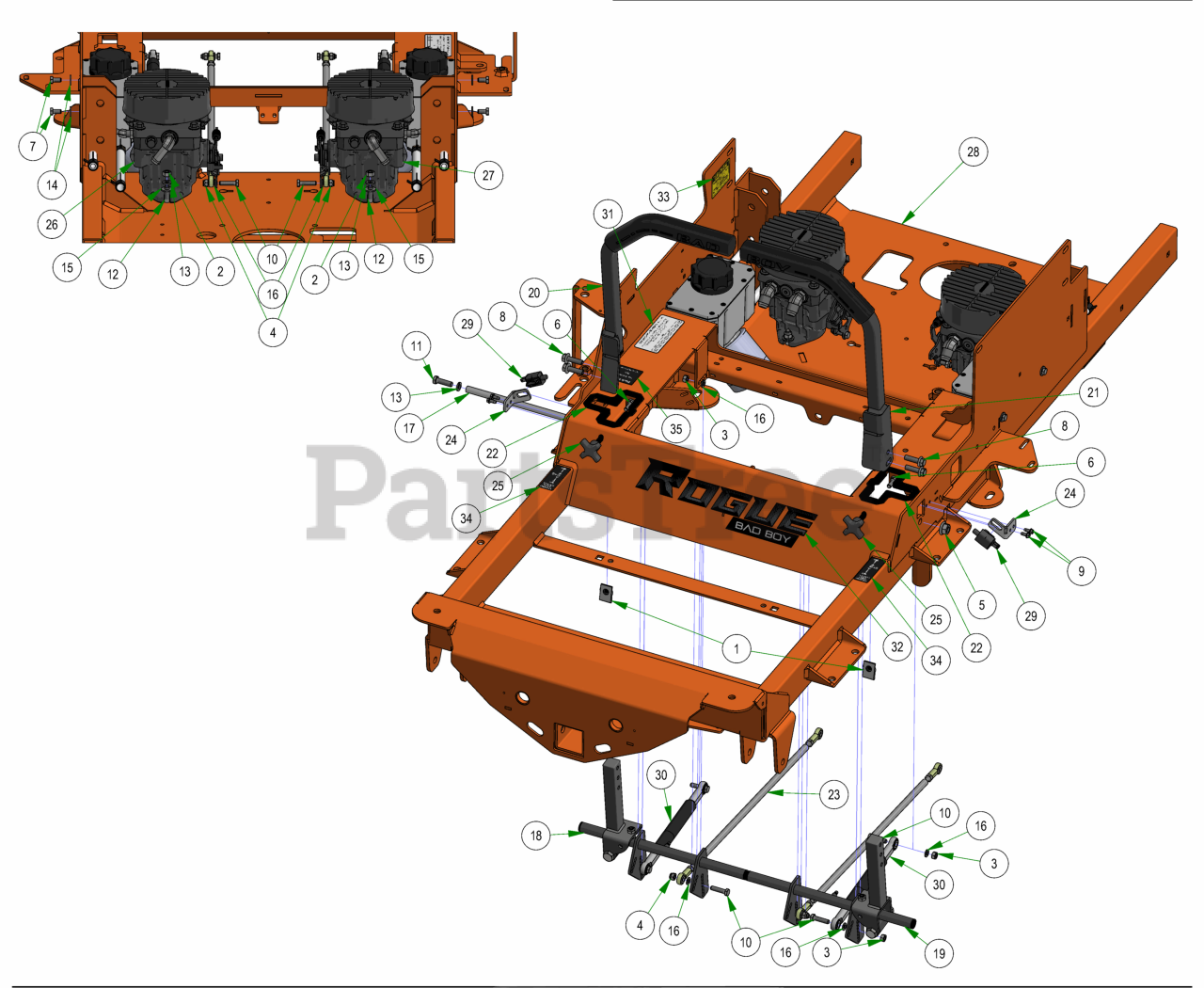

Drive Arms Parts Diagram

  • Title

1

Bad Boy 013-0021-00

Extruded Nut 3/8"-16 3/4" Hole Center With Patch

$4.99

$

In Stock, Qty 6

0

2

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

4

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

5

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

7

Bad Boy 018-0068-00

5/16-18 x 5/8 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-0078-00

3/8-16 X 1 1/4 HEX WASHER UNSLOT MACHINE SCREW ZINC GR5

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-1080-00

12-24 X 1/2 HEX WASHER UNLSOT F TCS ZINC

$2.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

11

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

12

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

14

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

15

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

16

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 028-0051-00

2019 Steering Actuator Rod

$24.99

$

Usually ships in 4-7 days

0

18

Bad Boy 031-0030-24

R Series Square Drive Arm Actuator RH Assembly

$102.99

$

Usually ships in 4-7 days

0

19

Bad Boy 031-0031-24

R Series Square Drive Arm Actuator LH Assembly

$102.99

$

Usually ships in 4-7 days

0

20

Bad Boy 031-9070-00

R Series Square Drive Arm RH Assembly

$148.99

$

Usually ships in 4-7 days

0

21

Bad Boy 031-9071-00

R Series Square Drive Arm LH Assembly

$148.99

$

Usually ships in 4-7 days

0

22

Bad Boy 032-0002-00

Snap-in Drive Arm Bushing

$16.99

$

In Stock, only 2 left!

0

23

Bad Boy 035-0004-00

2019 Outlaw Gen2 XP Push Rod Assembly

$45.99

$

Usually ships in 4-7 days

0

24

Bad Boy 039-2163-00

Push In Arm Safety Switch R Series Bracket

$

$

Currently unavailable

25

Bad Boy 057-5800-00

Speed Limiting Knob 3/8-16X 3"

$6.99

$

Usually ships in 4-7 days

0

26

Bad Boy 067-8053-21

2021 LH ROGUE HYDRO TANK LINE ASSY

$797.99

$

Usually ships in 4-7 days

0

27

Bad Boy 067-8054-21

2021 RH ROGUE HYDRO TANK LINE ASSY

$797.99

$

Usually ships in 4-7 days

0

28

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

$1025.99

$

Usually ships in 4-7 days

0

29

Bad Boy 077-8075-00

Rail Mount Safety Switch

$6.99

$

Usually ships in 4-7 days

0

30

Bad Boy 087-0002-00

2019 SROID Damper With Spherical Rod Ends

$66.99

$

Usually ships in 4-7 days

0

31

Bad Boy 091-0015-24

2024 EPA Build Date Punch Decal

$

$

Currently unavailable

32

Bad Boy 091-0516-00

Rogue back Plate & Front Decal

$11.99

$

Usually ships in 4-7 days

0

33

Bad Boy 091-1020-00

Hydraulic Decal

$1.49

$

Usually ships in 4-7 days

0

34

Bad Boy 091-1114-00

2018 LH/RH Steering Control Decal Roll

$16.99

$

Usually ships in 4-7 days

0

35

Bad Boy 091-4037-00

2019 Deck Release Decal

$8.49

$

Usually ships in 4-7 days

0
