Rogue - Bad Boy Zero-Turn Mower (2024) TANKS & BATTERY- FUEL TANKS Parts Diagram

Zero-Turn Mower

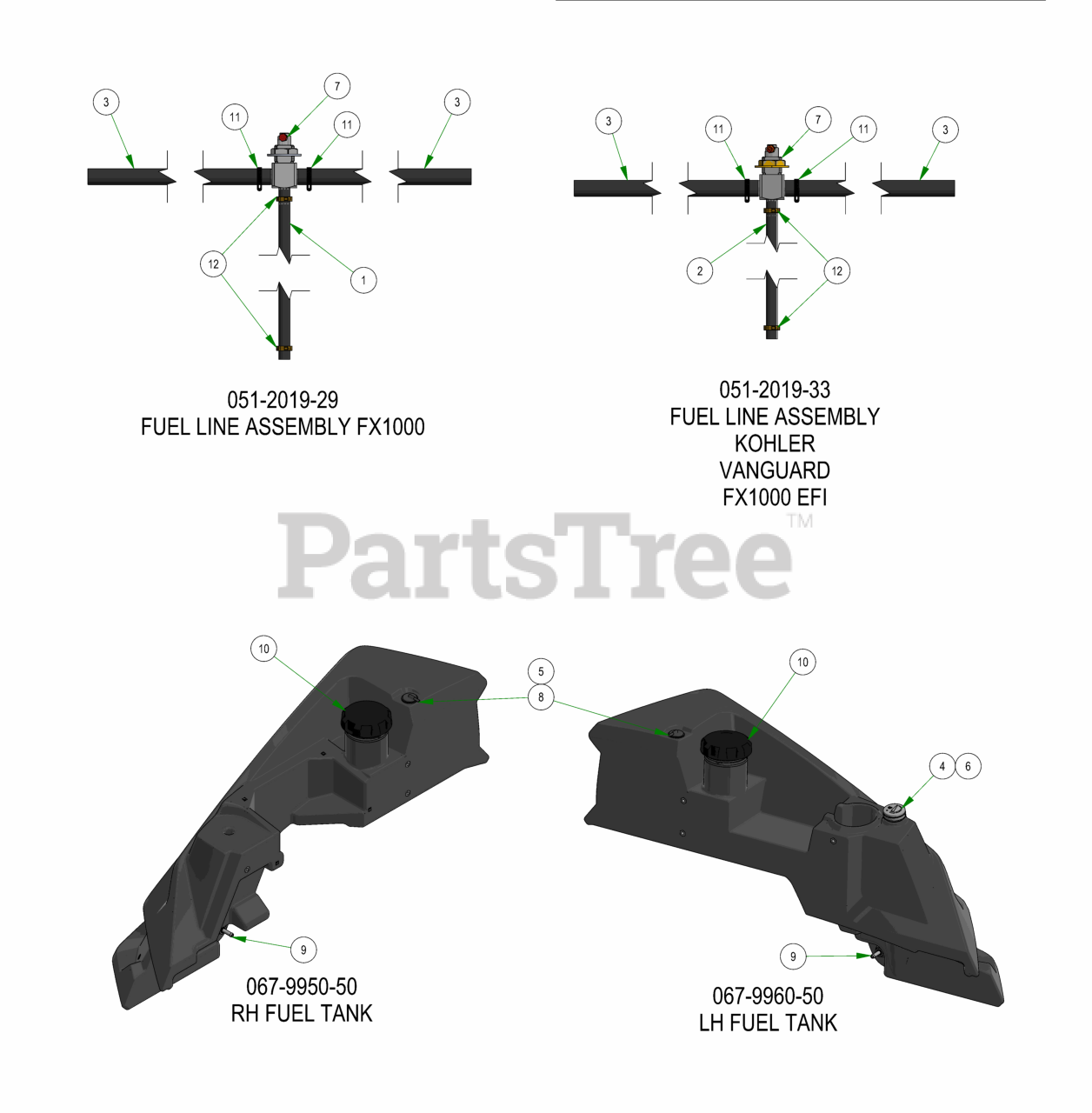

TANKS & BATTERY- FUEL TANKS Parts Diagram

  • Title
1

Bad Boy 051-8067-22

1/4" Fuel Line Hose

$12.99

$

Usually ships in 4-7 days

0

2

Bad Boy 051-8067-32

1/4" Fuel Line Hose

$17.99

$

Usually ships in 4-7 days

0

3

Bad Boy 051-8075-26

5/16" fuel line hose

$19.99

$

Usually ships in 4-7 days

0

4

Bad Boy 067-4080-00

Fuel Gauge with Grommet

$34.99

$

In Stock, Qty 10

0

5

Bad Boy 067-6054-00

Roll Over Valve Grommet

$8.49

$

In Stock, only 3 left!

0

6

Bad Boy 067-6056-00

Fuel Gauge Grommet

$7.49

$

In Stock, only 3 left!

0

7

Bad Boy 067-6058-00

3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4

$22.99

$

In Stock, only 2 left!

0

8

Bad Boy 067-6070-00

Rollover Valve

$26.99

$

In Stock, Qty 20+

0

9

Bad Boy 067-9901-00

Fuel Pick-up

$24.99

$

Usually ships in 4-7 days

0

10

$30.99

$

Usually ships in 4-7 days

0

11

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

$3.99

$

Usually ships in 4-7 days

0

12

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0
