Rogue - Bad Boy Zero-Turn Mower (2024) TANKS & BATTERY Parts Diagram

Zero-Turn Mower

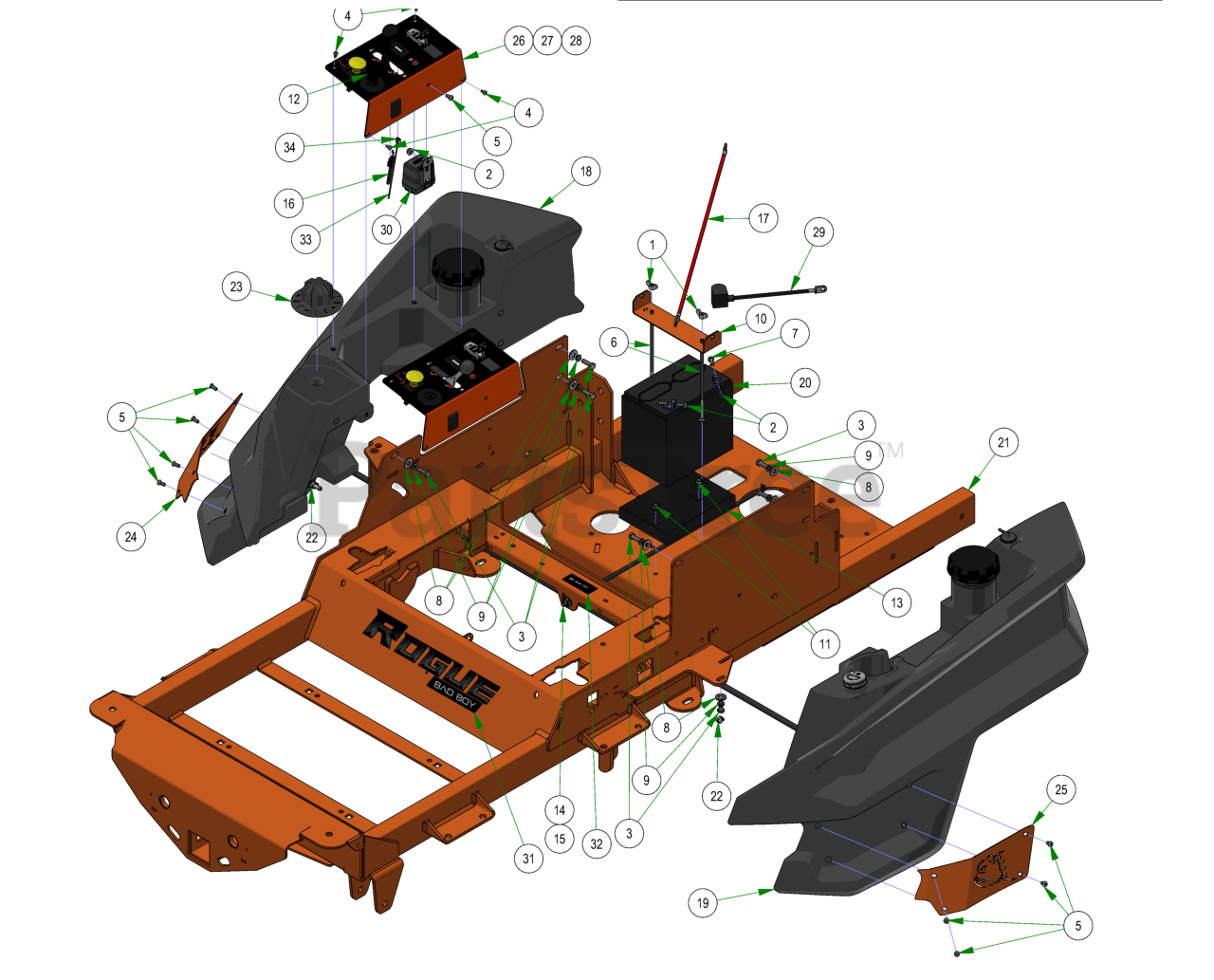

TANKS & BATTERY Parts Diagram

  • Title

1

Bad Boy 013-8051-00

1/4-20 WING NUT FORGED (TYPE A) LIGHT SERIES ZINC

$0.99

$

In Stock, Qty 5

0

2

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 9

0

5

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 018-8050-00

1/4-20 X 8 CARRIAGE BOLT (MIN 6" THREAD) ZINC

$1.99

$

In Stock, Qty 12

0

7

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

8

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

10

Bad Boy 026-0312-00

2023 Rogue Battery Hold Down Plate

$22.99

$

Usually ships in 4-7 days

0

11

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

12

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

13

Bad Boy 043-8931-00

Battery Tray

$21.99

$

Usually ships in 4-7 days

0

14

Bad Boy 051-2019-29

2023 Rebel Rogue Renegade Fuel Line for Kohler

$

$

Currently unavailable

15

Bad Boy 051-2019-33

2023 Rebel Rogue Renegade Fuel Line for Kawasaki

$

$

Currently unavailable

16

Bad Boy 055-8021-75

Outlaw Throttle Cable

$30.99

$

In Stock, Qty 12

0

17

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

18

Bad Boy 067-9950-50

2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)

$378.99

$

Usually ships in 4-7 days

0

19

Bad Boy 067-9960-50

2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)

$265.99

$

In Stock, only 2 left!

0

20

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

21

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

$1025.99

$

Usually ships in 4-7 days

0

22

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

$2.49

$

Usually ships in 4-7 days

0

23

Bad Boy 077-9001-00

2019 Deck Height Dial

$22.99

$

Usually ships in 4-7 days

0

24

Bad Boy 079-3290-00

2019 Outlaw Fuel Tank Insert - Right

$9.49

$

Usually ships in 4-7 days

0

25

Bad Boy 079-3291-00

2019 Outlaw Fuel Tank Insert - Left

$9.49

$

Usually ships in 4-7 days

0

26

Bad Boy 079-3481-10

Rebel/Rogue EFI Control Panel Assy

$124.99

$

Usually ships in 0 days

0

27

Bad Boy 079-3481-19

Rebel/Rogue Control Panel Assy

$124.99

$

Usually ships in 4-7 days

0

28

Bad Boy 079-3581-22

Rebel/Rogue Control Panel Assy-Drive by Wire

$

$

Not available

29

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

30

Bad Boy 086-2050-19

2019 Wiring Harness-Rebel/Rogue

$414.99

$

Usually ships in 4-7 days

0

31

Bad Boy 091-0516-00

Rogue back Plate & Front Decal

$11.99

$

Usually ships in 4-7 days

0

32

Bad Boy 091-6022-00

R-Series Shut Off Valve Decal

$1.49

$

Usually ships in 4-7 days

0

33

Bad Boy 216-1000-00

16 AWG Black Insulated Wire for Tachometer

$

$

Currently unavailable

34

Bad Boy 216-1051-00

1/4" Female Quick Connect Terminal

$2.49

$

Usually ships in 4-7 days

0
