Rogue - Bad Boy Zero-Turn Mower (2024) REAR SUSPENSION Parts Diagram

Zero-Turn Mower

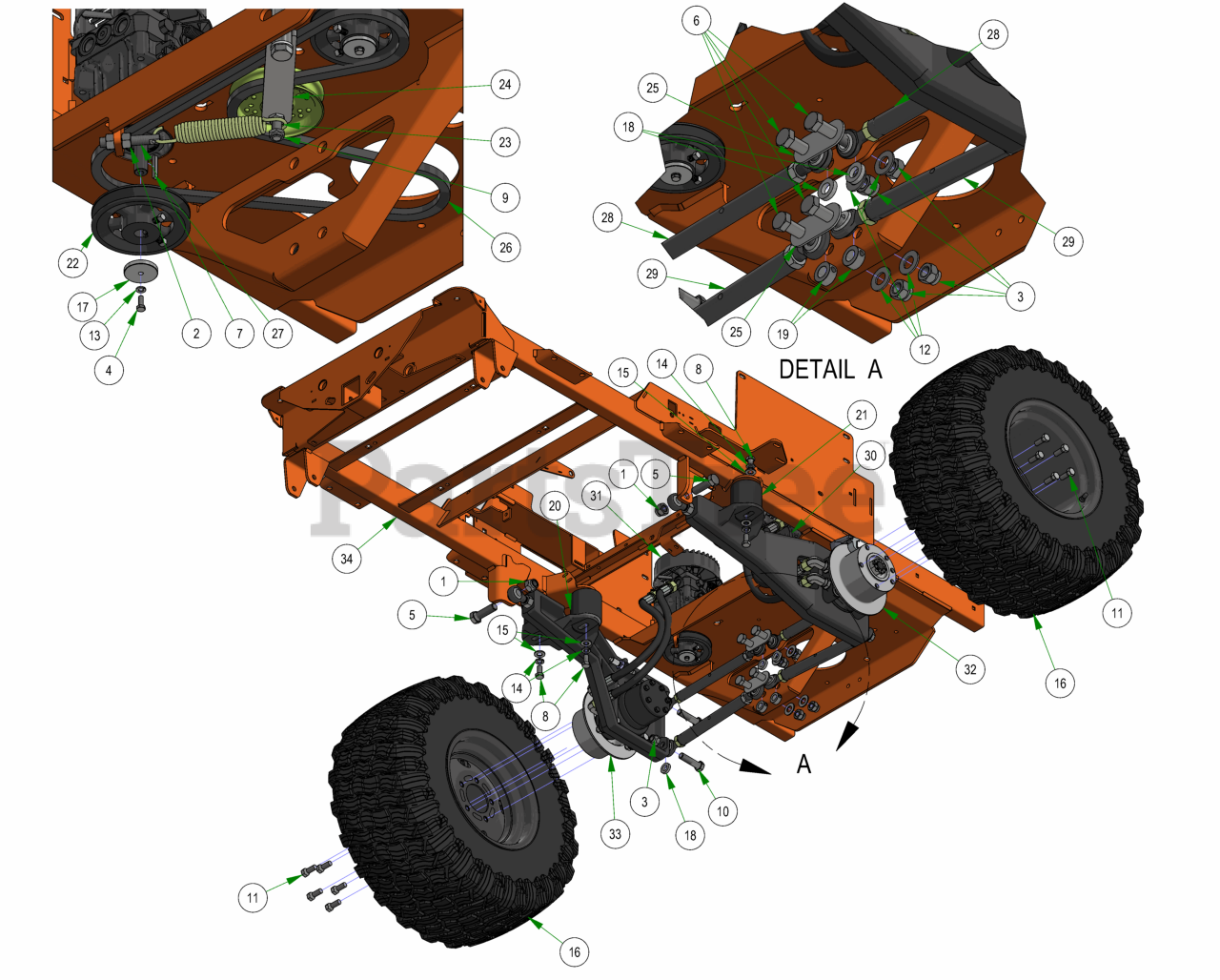

REAR SUSPENSION Parts Diagram

  • Title

1

Bad Boy 013-0023-00

3/4-10 NYLON INSERT LOCKNUT ZINC

$7.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

3

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

5

Bad Boy 018-0045-00

3/4-10 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

6

Bad Boy 018-0049-00

5/8-11 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

8

Bad Boy 018-2030-00

1/2-13 X 1 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

10

Bad Boy 018-6059-00

5/8-11 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 2 left!

0

11

Bad Boy 018-7033-00

1/2-20 x 60° Lug Bolts Zinc Grade 8

$2.49

$

In Stock, Qty 20+

0

12

Bad Boy 019-0009-00

5/8" Flat Washer SAE Spec Grade 8

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 019-4008-00

1/4 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 6

0

14

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

15

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

In Stock, only 1 left!

0

16

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf -10.5" Rim

$389.99

$

In Stock, only 2 left!

0

17

Bad Boy 025-0034-00

Rogue Pump washer

$4.99

$

In Stock, Qty 11

0

18

Bad Boy 025-0071-00

Spacer 1.125OD x .625 ID x .250 Length

$15.99

$

Usually ships in 4-7 days

0

19

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

20

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

21

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

In Stock, only 2 left!

0

22

Bad Boy 033-5011-00

5" PUMP PULLEY W/ SET SCREW

$37.99

$

In Stock, Qty 13

0

23

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

24

Bad Boy 039-0031-19

2019 Rogue Pump Idler Assy

$75.99

$

Usually ships in 4-7 days

0

25

Bad Boy 039-2145-00

2019 Suspension Gusset Outlaw

$15.99

$

Usually ships in 4-7 days

0

26

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

27

Bad Boy 042-5013-00

5MM X 36MM SQ MACHINERY KEY C1018 ROUNDED ENDS

$3.49

$

In Stock, Qty 14

0

28

Bad Boy 048-6061-00

2019 Suspension Radius Rod Assembly

$62.99

$

Usually ships in 4-7 days

0

29

Bad Boy 048-6064-00

2019 Suspension Radius Rod Assembly

$83.99

$

In Stock, only 2 left!

0

30

Bad Boy 067-8053-21

2021 LH ROGUE HYDRO TANK LINE ASSY

$797.99

$

Usually ships in 4-7 days

0

31

Bad Boy 067-8054-21

2021 RH ROGUE HYDRO TANK LINE ASSY

$797.99

$

Usually ships in 4-7 days

0

32

Bad Boy 070-0001-98

2019 Rouge Trailing Arm LH Assy

$

$

Currently unavailable

33

Bad Boy 070-0002-98

2019 Rogue Trailing Arm RH Assy

$

$

Currently unavailable

34

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

$1025.99

$

Usually ships in 4-7 days

0
