Rogue - Bad Boy Zero-Turn Mower (2024) ENGINE - KAWASAKI FX1000 EFI Parts Diagram

Zero-Turn Mower

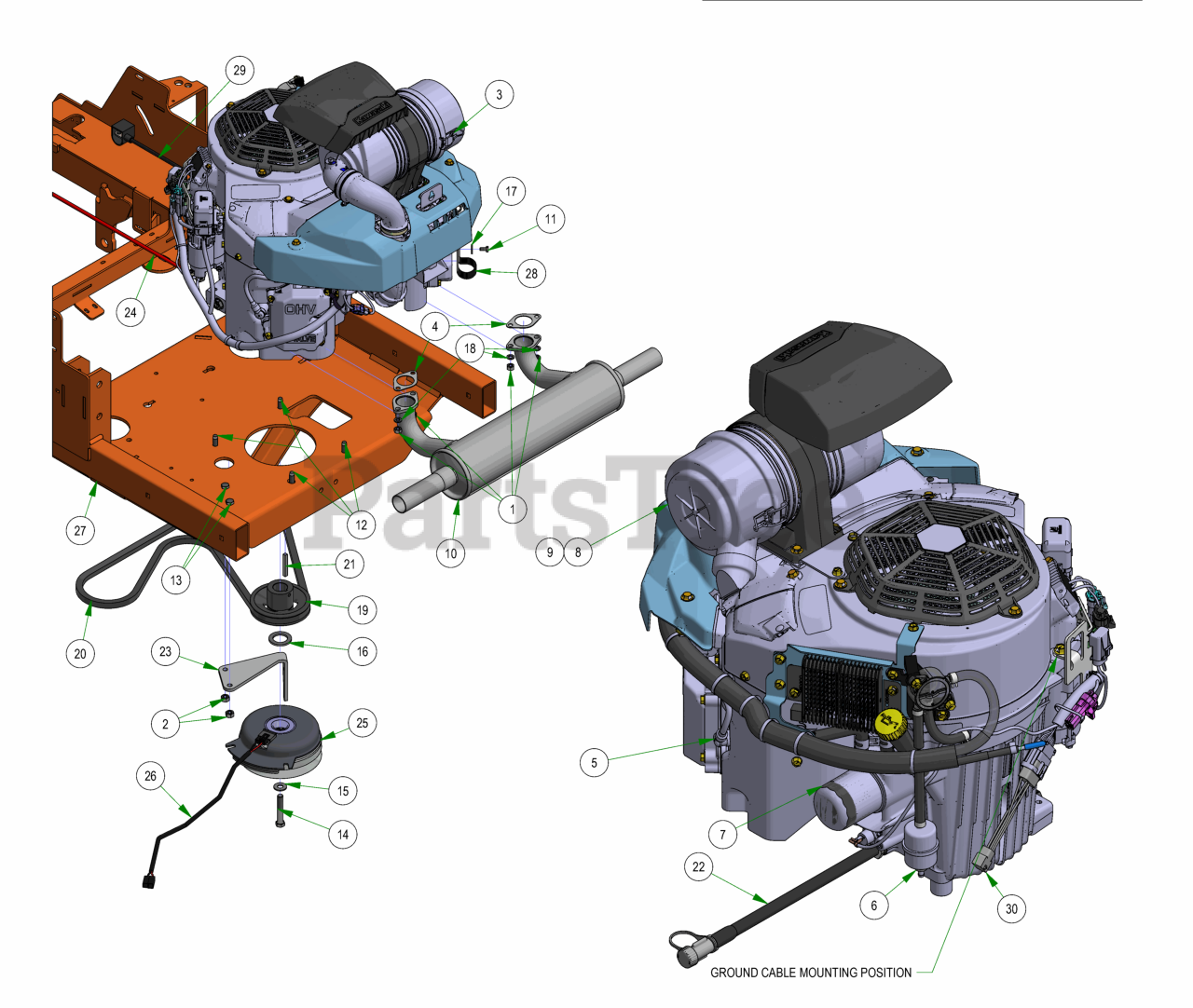

ENGINE - KAWASAKI FX1000 EFI Parts Diagram

  • Title

1

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 015-0083-00

Kawasaki FX1000EFI 38.5HP

$

$

Not available

4

Bad Boy 015-1010-01

Exhaust Gasket

$9.49

$

In Stock, only 2 left!

0

5

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

6

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0

7

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

8

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

9

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

10

Bad Boy 015-1010-00

2019 Rebel/Rogue Kawasaki 1000 Muffler

$226.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-0025-00

M6-1.0 X 12MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

12

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS

$1.99

$

In Stock, Qty 11

0

13

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

14

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$3.99

$

Usually ships in 4-7 days

0

15

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

17

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

18

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

19

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

20

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

21

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 1 left!

0

22

Bad Boy 051-5404-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 3 left!

0

23

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

24

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

25

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

26

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

27

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

$1025.99

$

Usually ships in 4-7 days

0

28

Bad Boy 072-5000-00

Diesel Hydraulic Hose Clamp

$7.99

$

Usually ships in 4-7 days

0

29

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

30

Bad Boy 086-9016-00

Harness Adaptor for Kawasaki EFI

$125.99

$

Usually ships in 4-7 days

0
