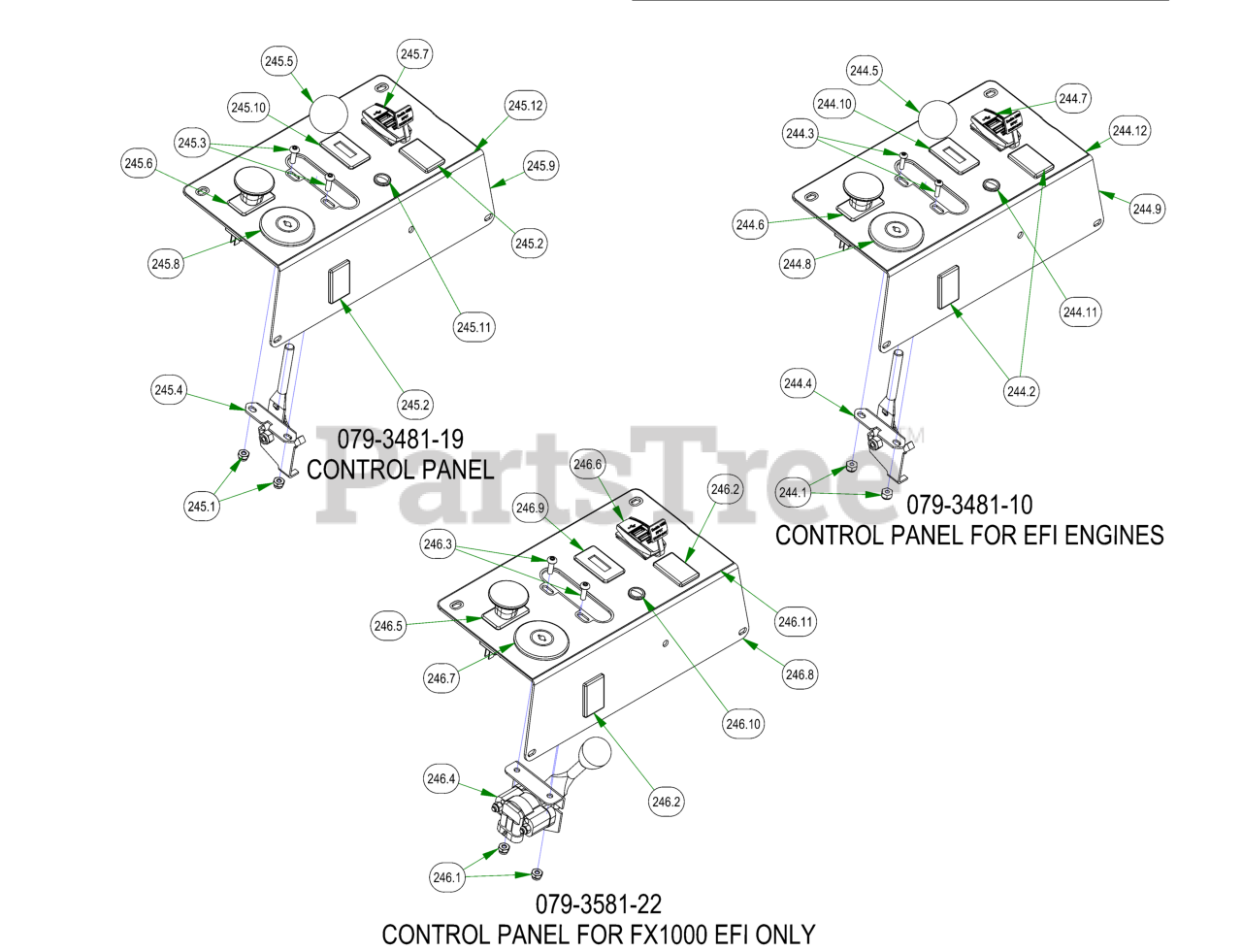

Rogue - Bad Boy Zero-Turn Mower (2023) TANKS & BATTERY-CONTROL PANELS Parts Diagram

Zero-Turn Mower

TANKS & BATTERY-CONTROL PANELS Parts Diagram

  • Title

244

Bad Boy 079-3481-10

Rebel/Rogue EFI Control Panel Assy

$124.99

$

Usually ships in 0 days

0

245

Bad Boy 079-3481-19

Rebel/Rogue Control Panel Assy

$124.99

$

Usually ships in 4-7 days

0

246

Bad Boy 079-3581-22

Rebel/Rogue Control Panel Assy-Drive by Wire

$

$

Not available

244.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

244.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

244.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

244.4

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 3 left!

0

244.5

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

244.6

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

244.7

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

244.8

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

244.9

Bad Boy 079-3483-00

2022 Rebel Control Panel

$

$

Not available

245.1

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

245.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

245.3

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

245.4

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 3 left!

0

245.5

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

245.6

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

245.7

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

245.8

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

245.9

Bad Boy 079-3483-00

2022 Rebel Control Panel

$

$

Not available

246.1

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

246.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

246.3

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

246.4

Bad Boy 055-3001-00

Kawasaki \ Kohler Drive By Wire

$127.99

$

Usually ships in 4-7 days

0

246.5

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

246.6

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

246.7

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

246.8

Bad Boy 079-3483-00

2022 Rebel Control Panel

$

$

Not available

246.9

Bad Boy 083-4050-00

Tachometer

$85.99

$

In Stock, only 2 left!

0

244.10

Bad Boy 083-4050-00

Tachometer

$85.99

$

In Stock, only 2 left!

0

244.11

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

244.12

Bad Boy 091-4009-22

2022 Rebel/Rogue Control Panel Decal

$11.99

$

Usually ships in 4-7 days

0

245.10

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

245.11

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

245.12

Bad Boy 091-4009-22

2022 Rebel/Rogue Control Panel Decal

$11.99

$

Usually ships in 4-7 days

0

246.10

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

246.11

Bad Boy 091-4009-22

2022 Rebel/Rogue Control Panel Decal

$11.99

$

Usually ships in 4-7 days

0
