Rogue - Bad Boy Zero-Turn Mower (2023) TANKS & BATTERY Parts Diagram

Zero-Turn Mower

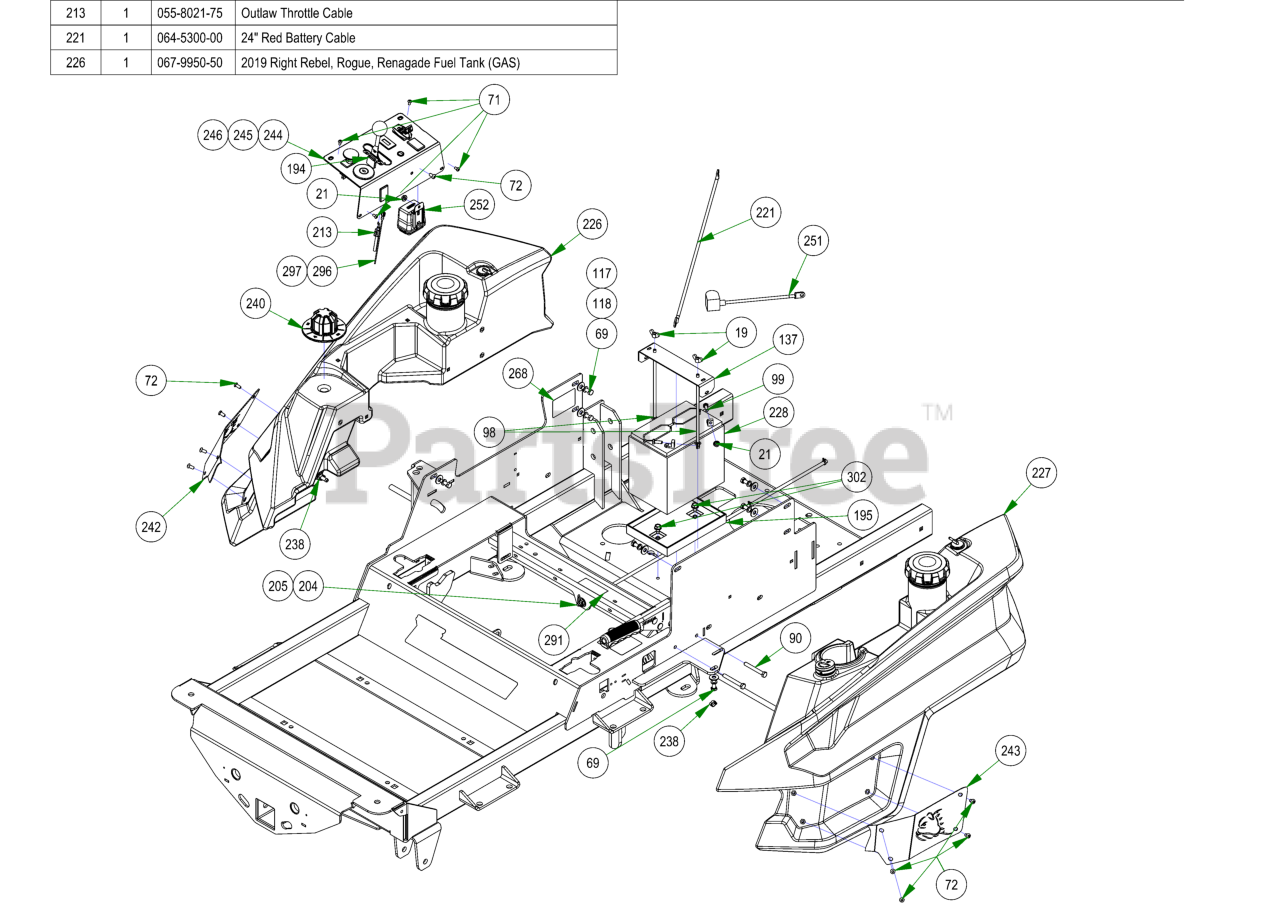

TANKS & BATTERY Parts Diagram

  • Title

19

Bad Boy 013-8051-00

1/4-20 WING NUT FORGED (TYPE A) LIGHT SERIES ZINC

Note: -

$0.99

$

In Stock, Qty 5

0

21

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

Note: -

$0.99

$

In Stock, only 4 left!

0

69

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

Note: -

$0.99

$

Usually ships in 4-7 days

0

71

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

Note: -

$0.99

$

In Stock, Qty 9

0

72

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

Note: -

$0.99

$

In Stock, only 4 left!

0

90

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

Note: -

$0.99

$

In Stock, only 2 left!

0

98

Bad Boy 018-8050-00

1/4-20 X 8 CARRIAGE BOLT (MIN 6" THREAD) ZINC

Note: -

$1.99

$

In Stock, Qty 12

0

99

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

Note: -

$0.99

$

In Stock, only 3 left!

0

117

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

Note: -

$0.99

$

In Stock, Qty 20+

0

118

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

Note: -

$0.99

$

In Stock, only 4 left!

0

137

Bad Boy 026-0312-00

2023 Rogue Battery Hold Down Plate

Note: -

$22.99

$

Usually ships in 4-7 days

0

194

Bad Boy 042-9000-00

Ignition Key

Note: -

$4.49

$

In Stock, Qty 20+

0

195

Bad Boy 043-8931-00

Battery Tray

Note: -

$21.99

$

Usually ships in 4-7 days

0

204

Bad Boy 051-2019-29

2023 Rebel Rogue Renegade Fuel Line for Kohler

Note: -

$

$

Currently unavailable

205

Bad Boy 051-2019-33

2023 Rebel Rogue Renegade Fuel Line for Kawasaki

Note: -

$

$

Currently unavailable

213

Bad Boy 055-8021-75

Outlaw Throttle Cable

Note: -

$30.99

$

In Stock, Qty 12

0

221

Bad Boy 064-5300-00

24" Red Battery Cable

Note: -

$23.99

$

In Stock, Qty 5

0

226

Bad Boy 067-9950-50

2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)

Note: -

$378.99

$

Usually ships in 4-7 days

0

227

Bad Boy 067-9960-50

2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)

Note: -

$265.99

$

In Stock, only 2 left!

0

228

Bad Boy 068-8049-00

SP-35 Battery

Note: -

$

$

Not available

238

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

Note: -

$2.49

$

Usually ships in 4-7 days

0

240

Bad Boy 077-9001-00

2019 Deck Height Dial

Note: -

$22.99

$

Usually ships in 4-7 days

0

242

Bad Boy 079-3290-00

2019 Outlaw Fuel Tank Insert - Right

Note: -

$9.49

$

Usually ships in 4-7 days

0

243

Bad Boy 079-3291-00

2019 Outlaw Fuel Tank Insert - Left

Note: -

$9.49

$

Usually ships in 4-7 days

0

244

Bad Boy 079-3481-10

Rebel/Rogue EFI Control Panel Assy

Note: -

$124.99

$

Usually ships in 0 days

0

245

Bad Boy 079-3481-19

Rebel/Rogue Control Panel Assy

Note: -

$124.99

$

Usually ships in 4-7 days

0

246

Bad Boy 079-3581-22

Rebel/Rogue Control Panel Assy-Drive by Wire

Note: -

$

$

Not available

251

Bad Boy 086-0005-00

Starter Cable

Note: -

$10.99

$

Usually ships in 4-7 days

0

252

Bad Boy 086-2050-19

2019 Wiring Harness-Rebel/Rogue

Note: -

$414.99

$

Usually ships in 4-7 days

0

268

Bad Boy 091-1020-00

Hydraulic Decal

Note: -

$1.49

$

Usually ships in 4-7 days

0

291

Bad Boy 091-6022-00

R-Series Shut Off Valve Decal

Note: -

$1.49

$

Usually ships in 4-7 days

0

296

Bad Boy 216-1000-00

16 AWG Black Insulated Wire for Tachometer

Note: -

$

$

Currently unavailable

297

Bad Boy 216-1051-00

1/4" Female Quick Connect Terminal

Note: -

$2.49

$

Usually ships in 4-7 days

0

302

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

Note: -

$1.49

$

Usually ships in 4-7 days

0

204

Bad Boy 051-2019-29

2023 Rebel Rogue Renegade Fuel Line for Kohler

Note: -

$

$

Currently unavailable

205

Bad Boy 051-2019-33

2023 Rebel Rogue Renegade Fuel Line for Kawasaki

Note: -

$

$

Currently unavailable

235

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

Note: -

$1025.99

$

Usually ships in 4-7 days

0

281

Bad Boy 091-4028-00

2019 Rogue Cooler Cover Decal

Note: -

$13.99

$

Usually ships in 4-7 days

0
