Rogue - Bad Boy Zero-Turn Mower (2023) REAR SUSPENSION Parts Diagram

Zero-Turn Mower

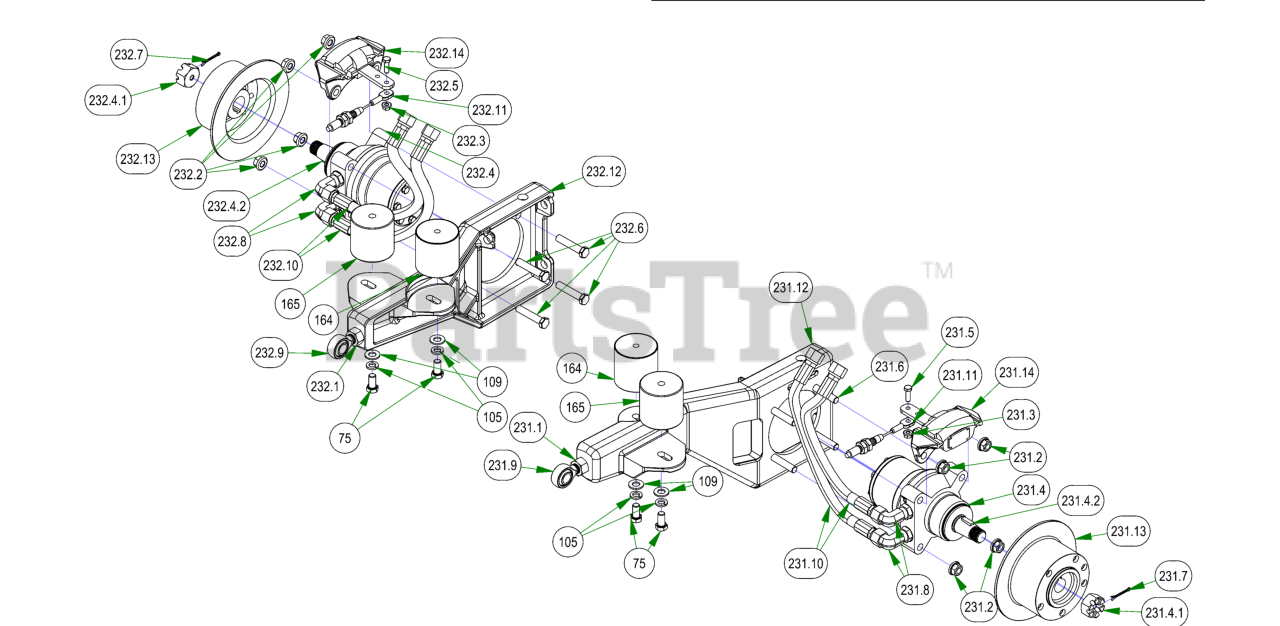

REAR SUSPENSION Parts Diagram

  • Title

4

Bad Boy 013-0023-00

3/4-10 NYLON INSERT LOCKNUT ZINC

$7.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

14

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

52

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

57

Bad Boy 018-0045-00

3/4-10 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

59

Bad Boy 018-0049-00

5/8-11 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

67

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

0

75

Bad Boy 018-2030-00

1/2-13 X 1 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

79

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

94

Bad Boy 018-6059-00

5/8-11 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 2 left!

0

96

Bad Boy 018-7033-00

1/2-20 x 60° Lug Bolts Zinc Grade 8

$2.49

$

In Stock, Qty 20+

0

103

Bad Boy 019-0009-00

5/8" Flat Washer SAE Spec Grade 8

$3.49

$

Usually ships in 4-7 days

0

104

Bad Boy 019-4008-00

1/4SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 6

0

105

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

109

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

In Stock, only 2 left!

0

115

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

122

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf -10.5" Rim

$389.99

$

In Stock, only 2 left!

0

123

Bad Boy 022-4091-00

2019 Assy-26x12-12 Reaper Turf-8.5" Rim

$398.99

$

Usually ships in 4-7 days

0

129

Bad Boy 025-0071-00

Spacer 1.125OD x .625 ID x .250 Length

$15.99

$

Usually ships in 4-7 days

0

133

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

164

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

165

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

In Stock, only 2 left!

0

166

Bad Boy 033-5011-00

5" PUMP PULLEY W/ SET SCREW

$37.99

$

In Stock, Qty 13

0

173

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

180

Bad Boy 039-0031-19

2019 Rogue Pump Idler Assy

$75.99

$

Usually ships in 4-7 days

0

183

Bad Boy 039-2145-00

2019 Suspension Gusset Outlaw

$15.99

$

Usually ships in 4-7 days

0

190

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

191

Bad Boy 042-5013-00

5MM X 36MM SQ MACHINERY KEY C1018 ROUNDED ENDS

$3.49

$

In Stock, Qty 14

0

200

Bad Boy 048-6061-00

2019 Suspension Radius Rod Assembly

$62.99

$

Usually ships in 4-7 days

0

201

Bad Boy 048-6064-00

2019 Suspension Radius Rod Assembly

$83.99

$

In Stock, only 2 left!

0

224

Bad Boy 067-8053-21

2021 LH ROGUE HYDRO TANK LINE ASSY

$797.99

$

Usually ships in 4-7 days

0

225

Bad Boy 067-8054-21

2021 RH ROGUE HYDRO TANK LINE ASSY

$797.99

$

Usually ships in 4-7 days

0

231

Bad Boy 070-0001-98

2019 Rouge Trailing Arm LH Assy

$

$

Currently unavailable

232

Bad Boy 070-0002-98

2019 Rogue Trailing Arm RH Assy

$

$

Currently unavailable

235

Bad Boy 070-2305-00

2023 Rogue Frame - Painted

$1025.99

$

Usually ships in 4-7 days

0

166.2

Bad Boy 030-0076-00

5/16-24 X 1/2 SOCKET SET SCREW KNURLED CUP POINT

$0.99

$

Usually ships in 4-7 days

0

231.1

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

231.2

Bad Boy 013-6040-00

1/2-13 Gr 8 Centerlock Flange Nut

$1.49

$

In Stock, only 3 left!

0

231.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

231.4

Bad Boy 015-4601-00

18cc Parker Wheel Motor- Left

$683.99

$

Usually ships in 4-7 days

0

231.5

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

231.6

Bad Boy 018-6041-00

1/2-13 x 2.75 Gr. 8 Hex Head Bolt

$3.49

$

In Stock, only 3 left!

0

231.7

Bad Boy 020-7022-00

1/8 X 1-1/2 COTTER PIN ZINC

$0.99

$

In Stock, only 2 left!

0

231.8

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

231.9

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

232.1

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

232.2

Bad Boy 013-6040-00

1/2-13 Gr 8 Centerlock Flange Nut

$1.49

$

In Stock, only 3 left!

0

232.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

232.4

Bad Boy 015-4600-00

18cc Parker Wheel Motor- Right

$683.99

$

Usually ships in 4-7 days

0

232.5

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

232.6

Bad Boy 018-6041-00

1/2-13 x 2.75 Gr. 8 Hex Head Bolt

$3.49

$

In Stock, only 3 left!

0

232.7

Bad Boy 020-7022-00

1/8 X 1-1/2 COTTER PIN ZINC

$0.99

$

In Stock, only 2 left!

0

232.8

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

232.9

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

231.10

Bad Boy 051-6006-00

20" Hydraulic Hose

$49.99

$

In Stock, only 2 left!

0

231.11

Bad Boy 064-8054-00

2019 Short Brake Cable-Suspension Models

$54.99

$

Usually ships in 4-7 days

0

231.12

Bad Boy 070-0001-00

2019 Left Trailing Arm

$332.99

$

Usually ships in 4-7 days

0

231.13

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

231.14

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

231.4.1

Bad Boy 013-7050-00

1" Castle Nut for HydroGear Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

231.4.2

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

232.10

Bad Boy 051-6006-00

20" Hydraulic Hose

$49.99

$

In Stock, only 2 left!

0

232.11

Bad Boy 064-9002-00

2019 Long Brake Cable-Renegade, Rogue

$54.99

$

Usually ships in 4-7 days

0

232.12

Bad Boy 070-0002-00

2019 Right Trailing Arm

$250.99

$

Usually ships in 4-7 days

0

232.13

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

232.14

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

232.4.1

Bad Boy 013-7050-00

1" Castle Nut for HydroGear Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

232.4.2

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0
