Rogue - Bad Boy Zero-Turn Mower (2022) ENGINE - 993cc VANGUARD EFI 37HP Parts Diagram

Zero-Turn Mower

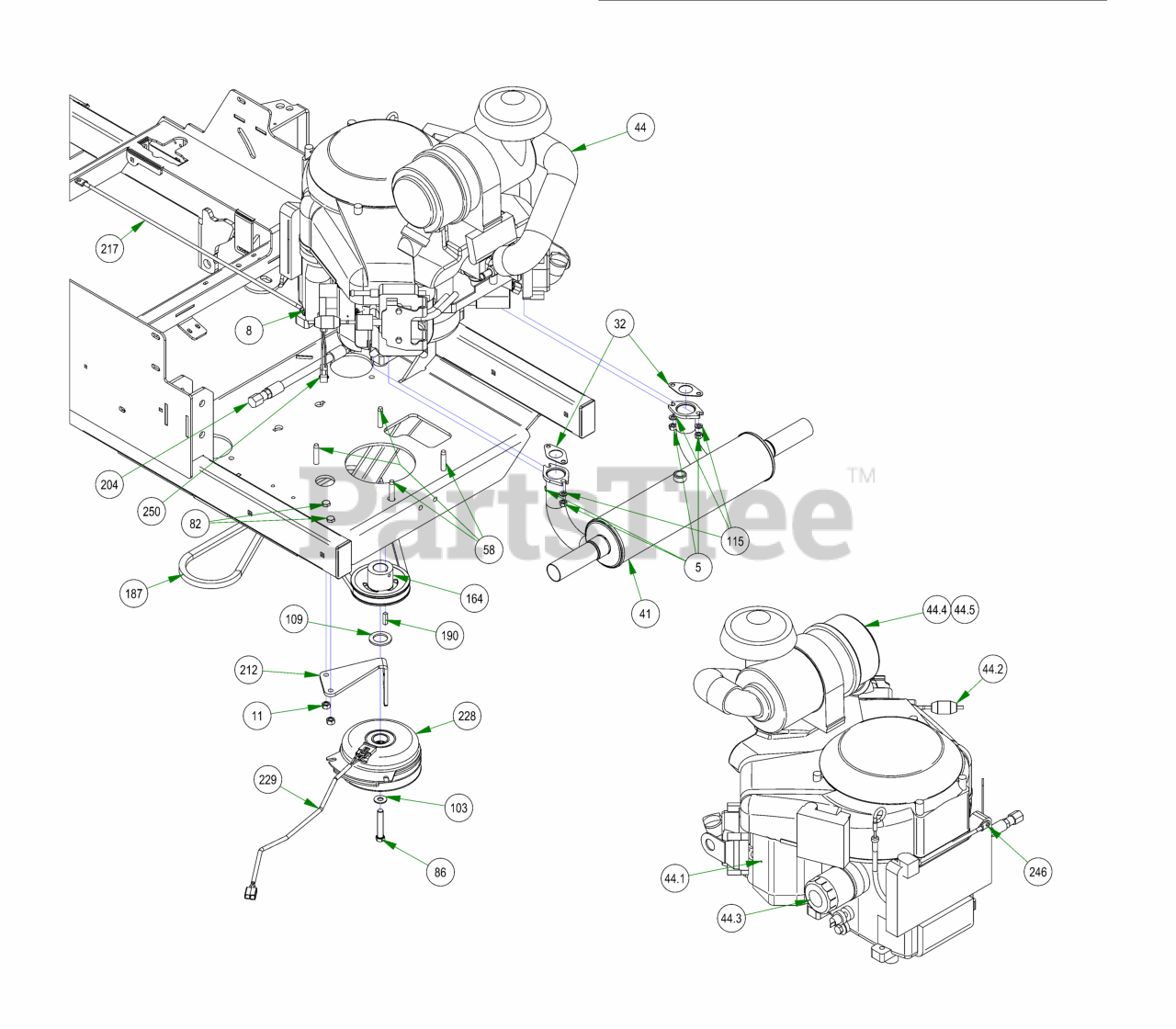

ENGINE - 993cc VANGUARD EFI 37HP Parts Diagram

  • Title

5

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

8

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

31

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

32

Bad Boy 015-0025-00

Exhaust Gasket for 23 Vanguard

$11.99

$

Usually ships in 4-7 days

0

41

Bad Boy 015-1014-00

Muffler for 36Hp Vanguard

$226.99

$

Usually ships in 4-7 days

0

44

Bad Boy 015-3001-00

993cc Vanguard Engine

$3989.99

$

Usually ships in 4-7 days

0

58

Bad Boy 018-0061-00

3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt

$6.49

$

Usually ships in 4-7 days

0

82

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

86

Bad Boy 018-5300-00

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$1.49

$

In Stock, only 3 left!

0

103

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

109

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

115

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

164

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

187

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

190

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

204

Bad Boy 051-5402-00

14 mm Oil drain Hose 993cc Vanguard

$33.99

$

Usually ships in 4-7 days

0

212

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

Usually ships in 4-7 days

0

217

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

228

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

229

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

230

Bad Boy 070-5375-00

2021 Rogue Suspension Frame Painted

$1025.99

$

Usually ships in 4-7 days

0

246

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

250

Bad Boy 086-9013-21

2019 Harness Adaptor - Vanguard 37 EFI Vert/Horiz

$34.99

$

Usually ships in 4-7 days

0

44.1

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

44.2

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

44.3

Bad Boy 063-8018-00

Oil Filter

$22.99

$

In Stock, Qty 19

0

44.4

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

44.5

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0
