Rogue - Bad Boy Zero-Turn Mower (2021) TANKS & BATTERY Parts Diagram

Zero-Turn Mower

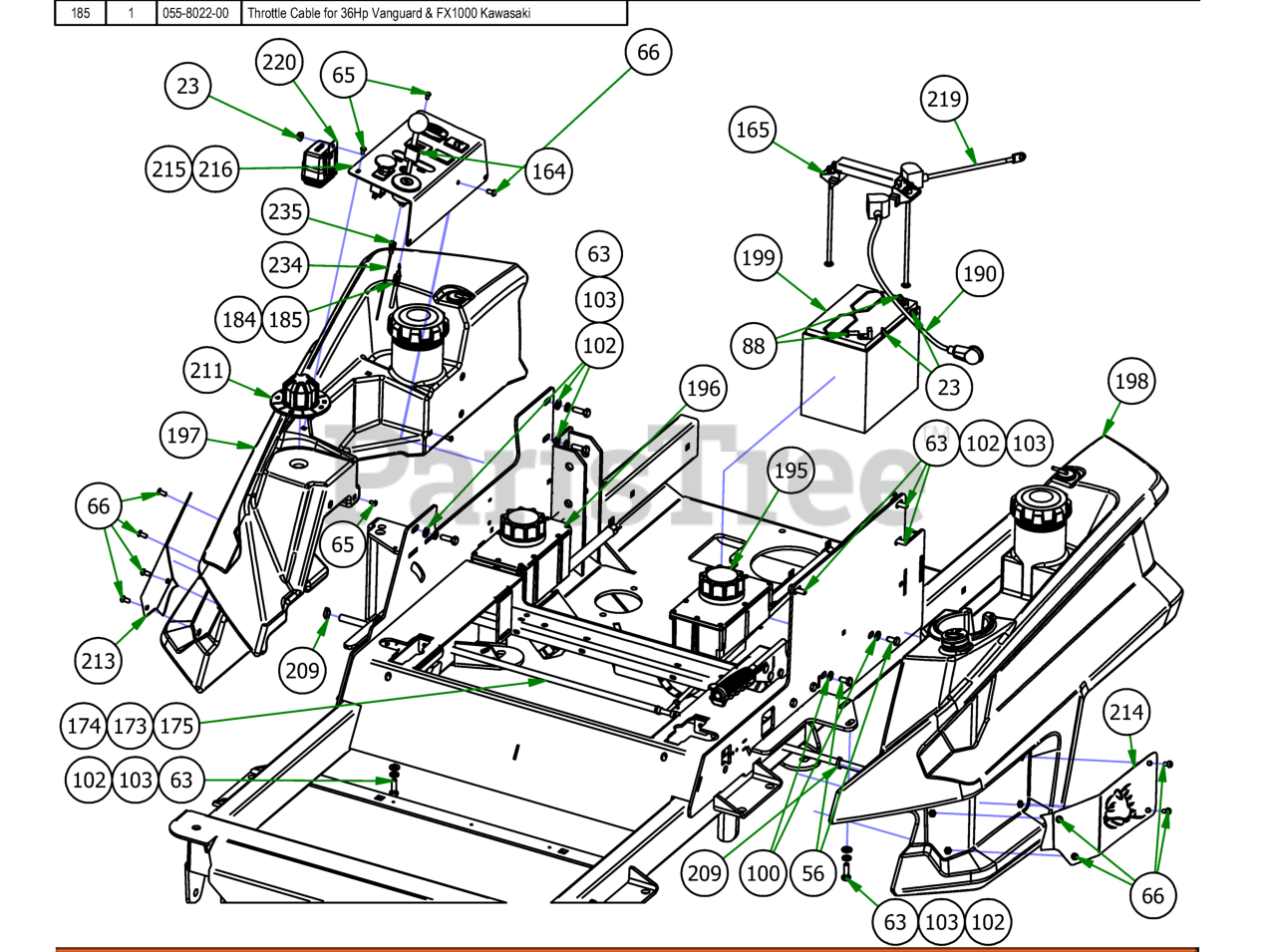

TANKS & BATTERY Parts Diagram

  • Title

23

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 4 left!

0

56

Bad Boy 018-0068-00

5/16-18 x 5/8 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

63

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

65

Bad Boy 018-2010-00

10-32 x 3/8" Button Socket Head Bolt

$0.99

$

In Stock, Qty 9

0

66

Bad Boy 018-2012-00

1/4" x 1/2" BS C/S 18-8 SS

$0.99

$

In Stock, only 4 left!

0

88

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 3 left!

0

100

Bad Boy 019-7040-00

1/4 USS Flat Washer Zinc

$0.99

$

In Stock, Qty 7

0

102

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

103

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

164

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

165

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 9

0

173

Bad Boy 051-2019-22

2019 Rebel Rogue Renegade Fuel Line for Vanguard & Yamaha

$47.99

$

Usually ships in 4-7 days

0

174

Bad Boy 051-2019-28

2019 Rebel Rogue Renegade Fuel Line for Kohler

$56.99

$

Usually ships in 4-7 days

0

175

Bad Boy 051-2019-32

2019 Rebel Rogue Renegade Fuel Line for Kawasaki

$56.99

$

Usually ships in 4-7 days

0

184

Bad Boy 055-8021-75

Outlaw Throttle Cable

$30.99

$

In Stock, Qty 12

0

185

Bad Boy 055-8022-00

Throttle Cable for 36Hp Vanguard & FX1000 Kawasaki

$41.99

$

In Stock, Qty 14

0

190

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

195

Bad Boy 067-8053-19

LH Rogue Hydro Tank Assy

$235.99

$

Usually ships in 4-7 days

0

196

Bad Boy 067-8054-19

RH Rogue Hydro Tank Assy

$235.99

$

Usually ships in 4-7 days

0

197

Bad Boy 067-9950-50

2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)

$378.99

$

Usually ships in 4-7 days

0

198

Bad Boy 067-9960-50

2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)

$265.99

$

In Stock, only 2 left!

0

199

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

209

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

$2.49

$

Usually ships in 4-7 days

0

211

Bad Boy 077-9001-00

2019 Deck Height Dial

$22.99

$

Usually ships in 4-7 days

0

213

Bad Boy 079-3290-00

2019 Outlaw Fuel Tank Insert - Right

$9.49

$

Usually ships in 4-7 days

0

214

Bad Boy 079-3291-00

2019 Outlaw Fuel Tank Insert - Left

$9.49

$

Usually ships in 4-7 days

0

215

Bad Boy 079-3481-10

Rebel/Rogue EFI Control Panel Assy

$124.99

$

Usually ships in 0 days

0

216

Bad Boy 079-3481-19

Rebel/Rogue Control Panel Assy

$124.99

$

Usually ships in 4-7 days

0

219

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

220

Bad Boy 086-2050-19

2019 Wiring Harness-Rebel/Rogue

$414.99

$

Usually ships in 4-7 days

0

234

Bad Boy 216-1000-00

16 AWG Black Insulated Wire for Tachometer

$

$

Currently unavailable

235

Bad Boy 216-1051-00

1/4" Female Quick Connect Terminal

$2.49

$

Usually ships in 4-7 days

0

206

Bad Boy 070-5372-19

2019 Veritical Suspension Frame

$

$

Not available
