Rogue - Bad Boy Zero-Turn Mower (2021) ENGINE - 824cc KOHLER EFI 33HP Parts Diagram

Zero-Turn Mower

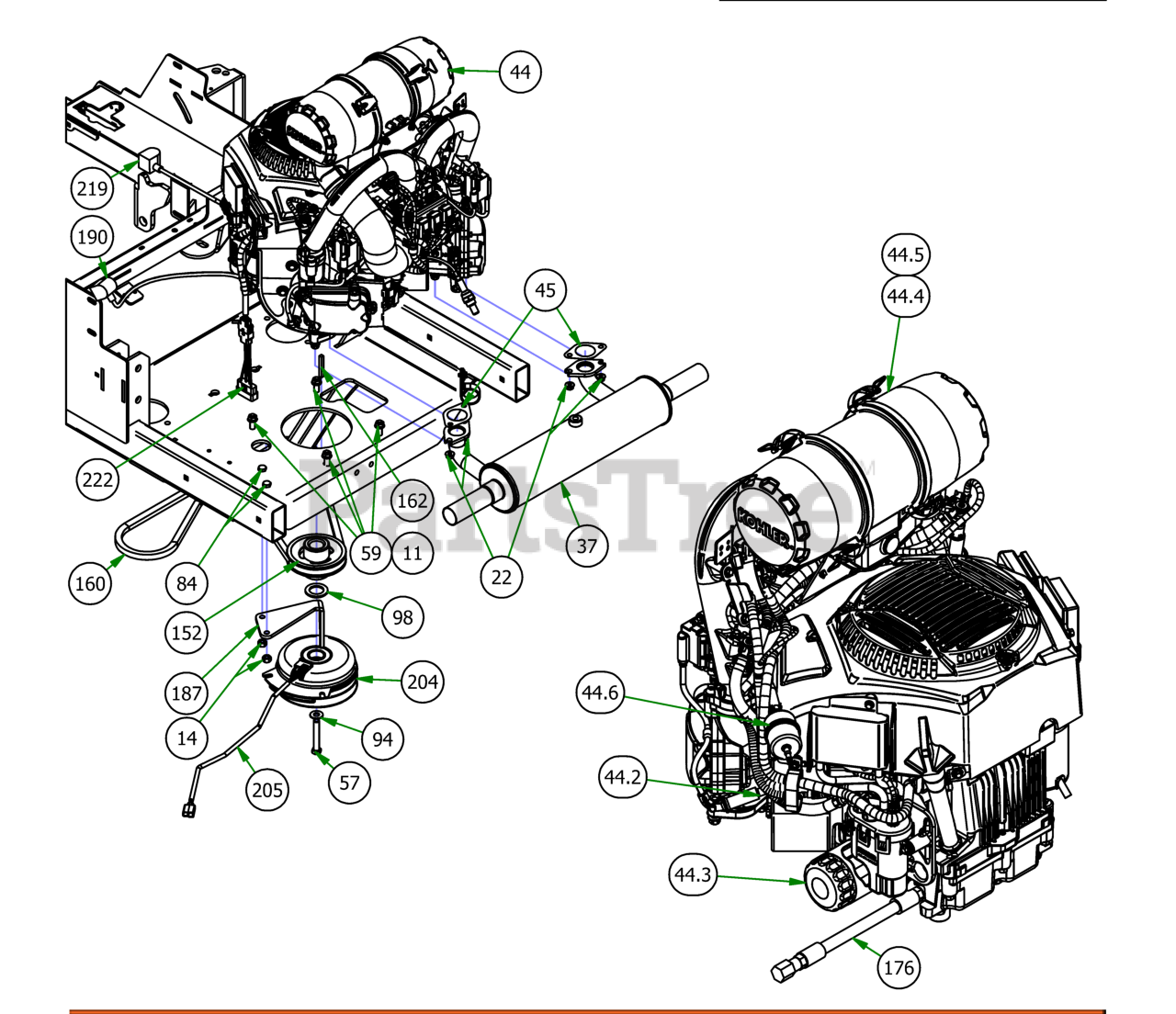

ENGINE - 824cc KOHLER EFI 33HP Parts Diagram

  • Title

11

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

22

Bad Boy 013-8240-00

M8 Flange Nut for Kohler Exhaust

$7.99

$

Usually ships in 4-7 days

0

37

Bad Boy 015-1012-00

Muffler for 33Hp 824cc Kohler Engine

$226.99

$

Usually ships in 4-7 days

0

44

Bad Boy 015-8240-00

824cc EFI Kohler

$2963.99

$

Usually ships in 4-7 days

0

45

Bad Boy 015-9500-00

Exhaust Gasket for 824EFI Kohler

$11.99

$

Usually ships in 4-7 days

0

49

Bad Boy 018-0025-00

M6-1.0 X 12MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

57

Bad Boy 018-0074-00

7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc

$3.49

$

Usually ships in 4-7 days

0

59

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

82

Bad Boy 018-6012-00

3/8 x 1 1/2 Bolt

$0.99

$

In Stock, Qty 20+

0

84

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

94

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

98

Bad Boy 019-6029-00

1 1/8" Flat Spacer

$1.49

$

In Stock, only 2 left!

0

100

Bad Boy 019-7040-00

1/4 USS Flat Washer Zinc

$0.99

$

In Stock, Qty 7

0

152

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

160

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

162

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 1 left!

0

176

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

187

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

190

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

204

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

205

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

206

Bad Boy 070-5372-19

2019 Veritical Suspension Frame

$

$

Not available

208

Bad Boy 072-5000-00

Diesel Hydraulic Hose Clamp

$7.99

$

Usually ships in 4-7 days

0

219

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

222

Bad Boy 086-9006-19

2019 Harness Adaptor - Vanguard 37 EFI Vert/Horiz

$

$

Not available

44.2

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

44.3

Bad Boy 063-5400-00

Oil Filter

$23.99

$

In Stock, Qty 14

0

44.4

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

44.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

44.6

Bad Boy 063-5001-00

25/26 HP Kohler Fuel Filter

$20.99

$

In Stock, Qty 8

0
