Rogue - Bad Boy Zero-Turn Mower (2021) DRIVE ARM ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

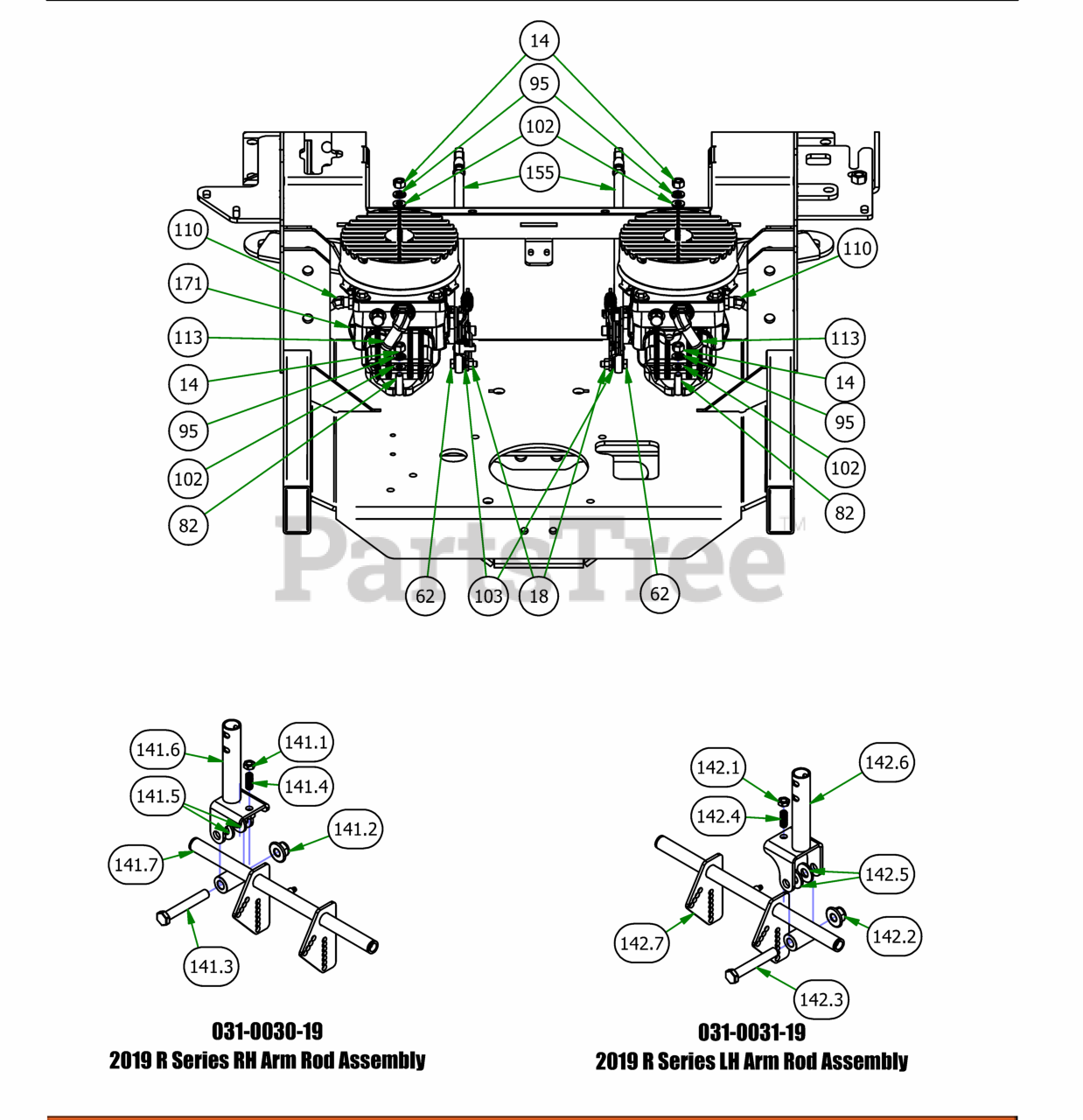

DRIVE ARM ASSEMBLIES (CONT.) Parts Diagram

  • Title

14

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

18

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

62

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

82

Bad Boy 018-6012-00

3/8 x 1 1/2 Bolt

$0.99

$

In Stock, Qty 20+

0

95

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 8

0

102

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

103

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

110

Bad Boy 024-1200-00

ZT Fitting, 3/8 x 3/8 45 Degree, 4603-6-6

$21.99

$

Usually ships in 4-7 days

0

113

Bad Boy 024-5002-00

90 Degree Fitting, 1/2 x 3/4, 4601-8-8

$18.99

$

Usually ships in 4-7 days

0

155

Bad Boy 035-0004-00

2019 Outlaw Gen2 XP Push Rod Assembly

$45.99

$

Usually ships in 4-7 days

0

171

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

141.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

141.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

141.3

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

141.4

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

$3.49

$

Usually ships in 4-7 days

0

141.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

141.6

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

141.7

Bad Boy 031-0030-00

2019 Drive Arm Actuator right

$49.99

$

Usually ships in 4-7 days

0

142.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

142.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

142.3

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

142.4

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

$3.49

$

Usually ships in 4-7 days

0

142.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

142.6

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

142.7

Bad Boy 031-0031-00

2019 Drive Arm Actuator left

$49.99

$

Usually ships in 4-7 days

0
