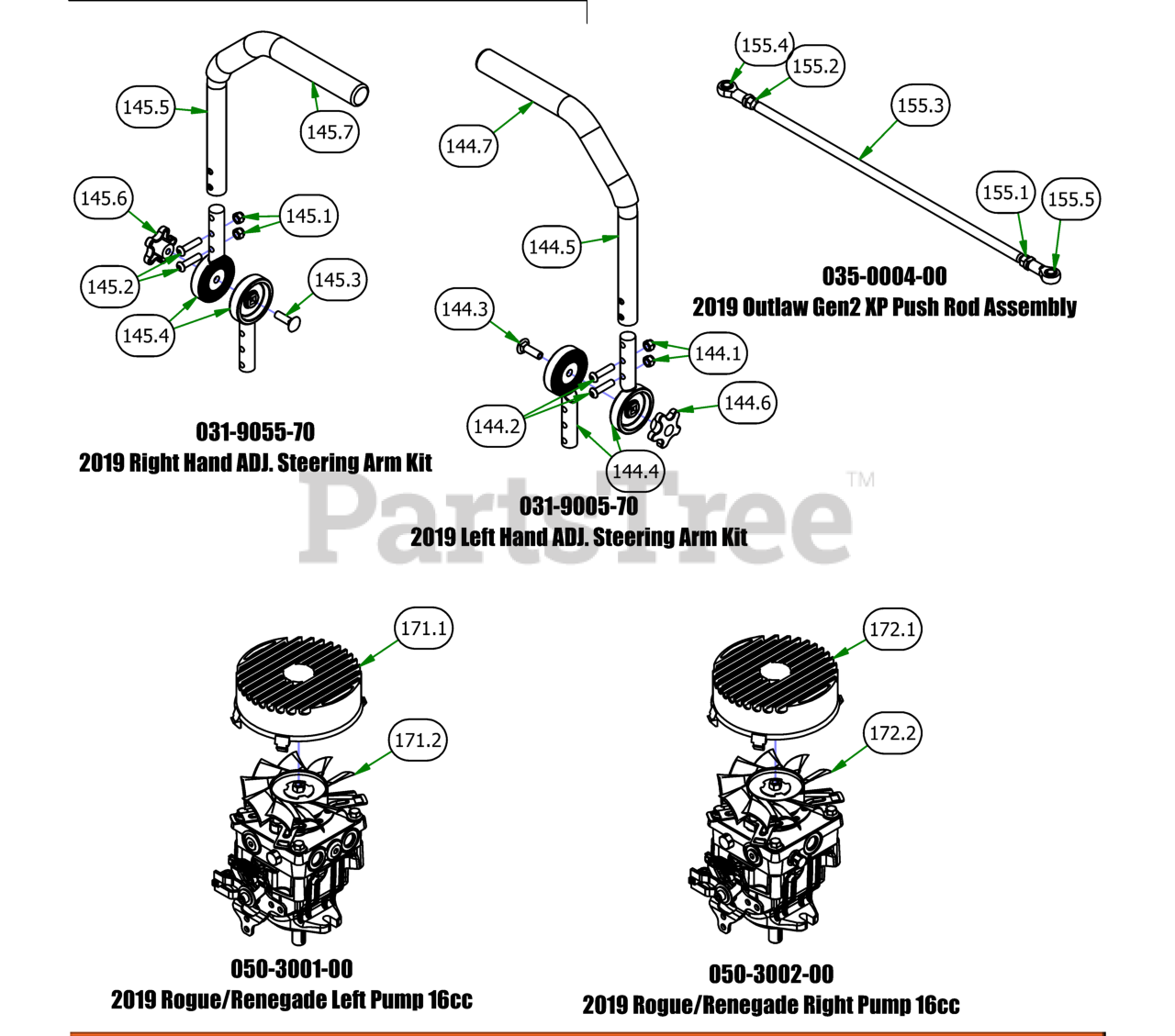

Rogue - Bad Boy Zero-Turn Mower (2021) DRIVE ARM ASSEMBLIES (CONT.) 2 Parts Diagram

Zero-Turn Mower

DRIVE ARM ASSEMBLIES (CONT.) 2 Parts Diagram

  • Title

144.1

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

144.2

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

144.3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

144.4

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

144.5

Bad Boy 031-9006-00

2019 Steering Arm Grip

$45.99

$

Usually ships in 4-7 days

0

144.6

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

144.7

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

145.1

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

145.2

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

145.3

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

145.4

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

145.5

Bad Boy 031-9006-00

2019 Steering Arm Grip

$45.99

$

Usually ships in 4-7 days

0

145.6

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

145.7

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

155.1

Bad Boy 013-6049-00

5/16" RH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0

155.2

Bad Boy 013-6050-00

5/16" LH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0

155.3

Bad Boy 035-0004-01

2019 Outlaw Gen2 Xp Rod

$42.99

$

Usually ships in 4-7 days

0

155.4

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0

155.5

Bad Boy 048-3003-00

Spherical Rod End - Outlaw

$22.99

$

Usually ships in 4-7 days

0

171.1

Bad Boy 014-5600-00

Fan Guard 6" Fits wheel Motor Pumps

$42.99

$

Usually ships in 4-7 days

0

171.2

Bad Boy 015-9999-00

Hydraulic Fan

$30.99

$

In Stock, Qty 5

0

172.1

Bad Boy 014-5600-00

Fan Guard 6" Fits wheel Motor Pumps

$42.99

$

Usually ships in 4-7 days

0

172.2

Bad Boy 015-9999-00

Hydraulic Fan

$30.99

$

In Stock, Qty 5

0
